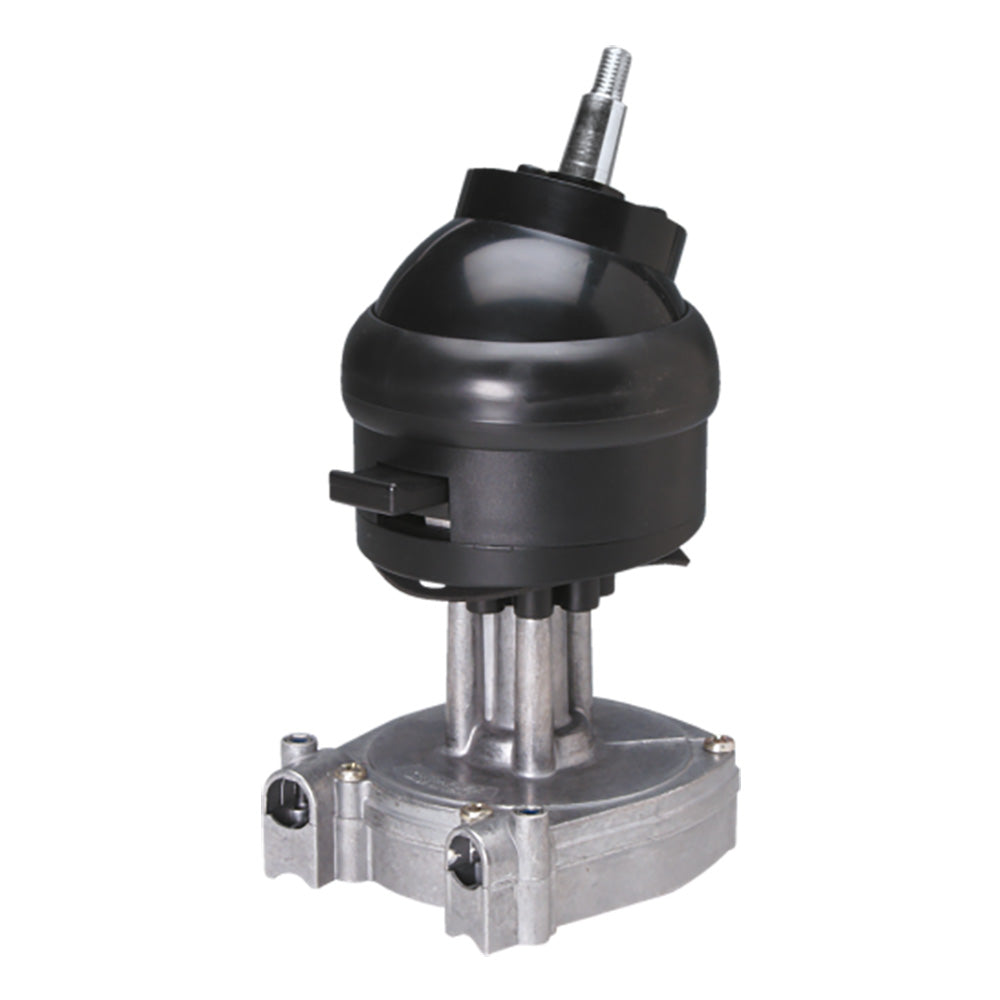

UFlex T83FC Zero Torq Rotary Helm Single Cable Steering

T83FC Zero Torq Rotary Helm Single Cable Steering

T83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock.

Features:

• Tilt range of 48° and five locking positions


• Fast connect, simple installation


• The tilt device eliminates under-dash movement


• Standard 3/4” tapered shaft – stainless steel


• All stainless steel cable output ends


• Corrosion resistant materials


• T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat


• X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems


• For boats faster than 50 mph, our hydraulic steering systems are recommended


• Optional steering wheel


• Engine connection kits


• Exceeds EN 28848 safety standards


• Exceeds ABYC P17 safety standards

Specifications:

• M66 steering cable stroke: 228 mm (9")


• Lock-to-lock steering wheel turns: Approx. 3,8


• Max. dash depth: 25,4 mm (1")


• Max. steering wheel diameter: 406 mm (16")


• Min. steering cable bend radius: 200 mm (7.9")
