Humminbird Helix 7 G4 ICE CHIRP GPS All Season Kit

• Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".


• CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.


• Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view.


• Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks.


• Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, daymarkers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes.


• AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight and Water Level Offset.


• MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX.


• Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.


• Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.

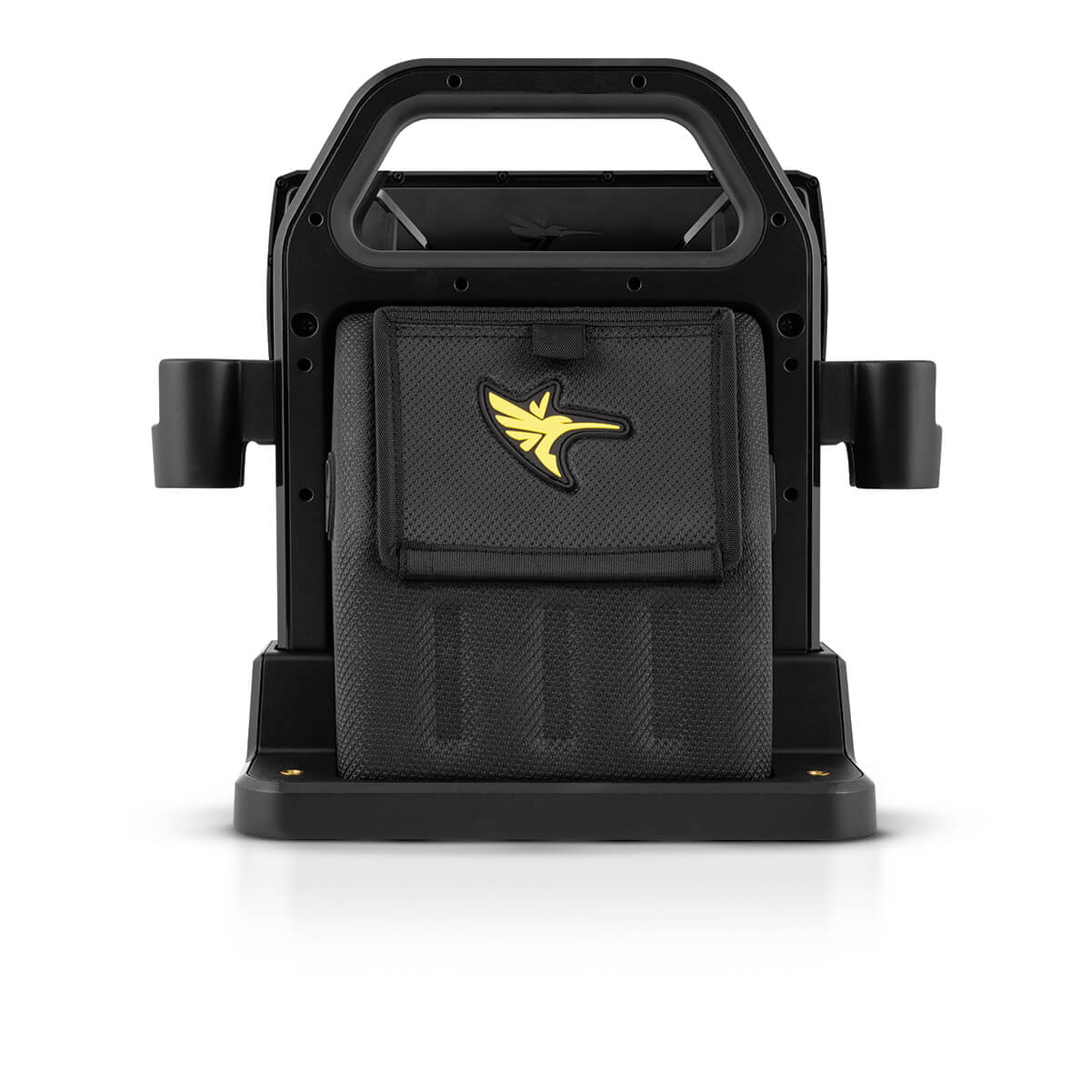

• Premium Shuttle: It has it all. Master power switch, quick-connect SAE power cables, large handle, multiple ¼"-20 mounting options for accessories, two rod holders, cable and transducer management, and a battery cover.


• all season Ready: This ICE HELIX fish finder comes with everything you need to use on both ICE and on your boat or portable applications in the summer.

The ICE HELIX 7 CHIRP GPS G4 All Season has more fish finding power than one season can handle. Take advantage of crystal-clear Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap and compatibility with both LakeMaster or Navionics maps. Additional features designed specifically for the ICE angler include AutoChart Live ICE, Jig Charge Mode, split-screen views, premium shuttle and 15Ah lithium battery separate this unit from all others on the ICE. And you'll be set once the ICE thaws, because ICE HELIX 7 CHIRP GPS G4 All Season includes everything you need to use it on a boat or in portable applications during the summer. Enjoy it all on a full color, 7" HD LCD display.

Display Size - Diagonal
7"

Display Pixel Matrix
1024H x 600V

Sonar-Standard
Dual Spectrum CHIRP

Sonar-Coverage
15° & 21° @ -3dB

Sonar-Optional
50 kHz, 50/Low Airmar CHIRP

CHIRP - Frequencies Supported
50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)

Sonar-Frequencies Supported
50/80/200 kHz

Depth-Sonar
400 ft

Interface
Keypad Control

Features
Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built In GPS, Built In Mapping, AutoChart Live Ice, MEGA Live Imaging

Memory Card Slot
Single Micro SD

Compatible With
AIS, AutoPilot

Power Draw
800 mA

Power Input
10.8-20 VDC

Power Output Peak-to-Peak
4000 Watts

Power Output RMS
500 Watts

Screen Snap Shot
Included

Sonar Recording
Included

Mount-Standard
Portable

Transducer Mount Location
Portable

GPS Chartplotting
Included

GPS Trackplotting
Included

LakeMaster Compatibility
Yes

Coast Master Compatibility
Yes

Navionics Gold/HotMaps Compatibility
Yes

Navionics Platinum + Compatibility
Yes

Platinum Compatibility
Yes

Heading Sensor GPS Compatibility
Yes

Upgradable Software
Yes

View Preset Keys
No

X-Press Menu System
Yes

Custom Digital Readout
Yes

Custom View Selections
Yes

Display Colors Grayscale
16-Bit

Speed
Included

Temperature
Built In

Temperature Alarm
Yes

Temperature Graph
No

HDMI Compatible
No

MEGA Live Compatibility
No

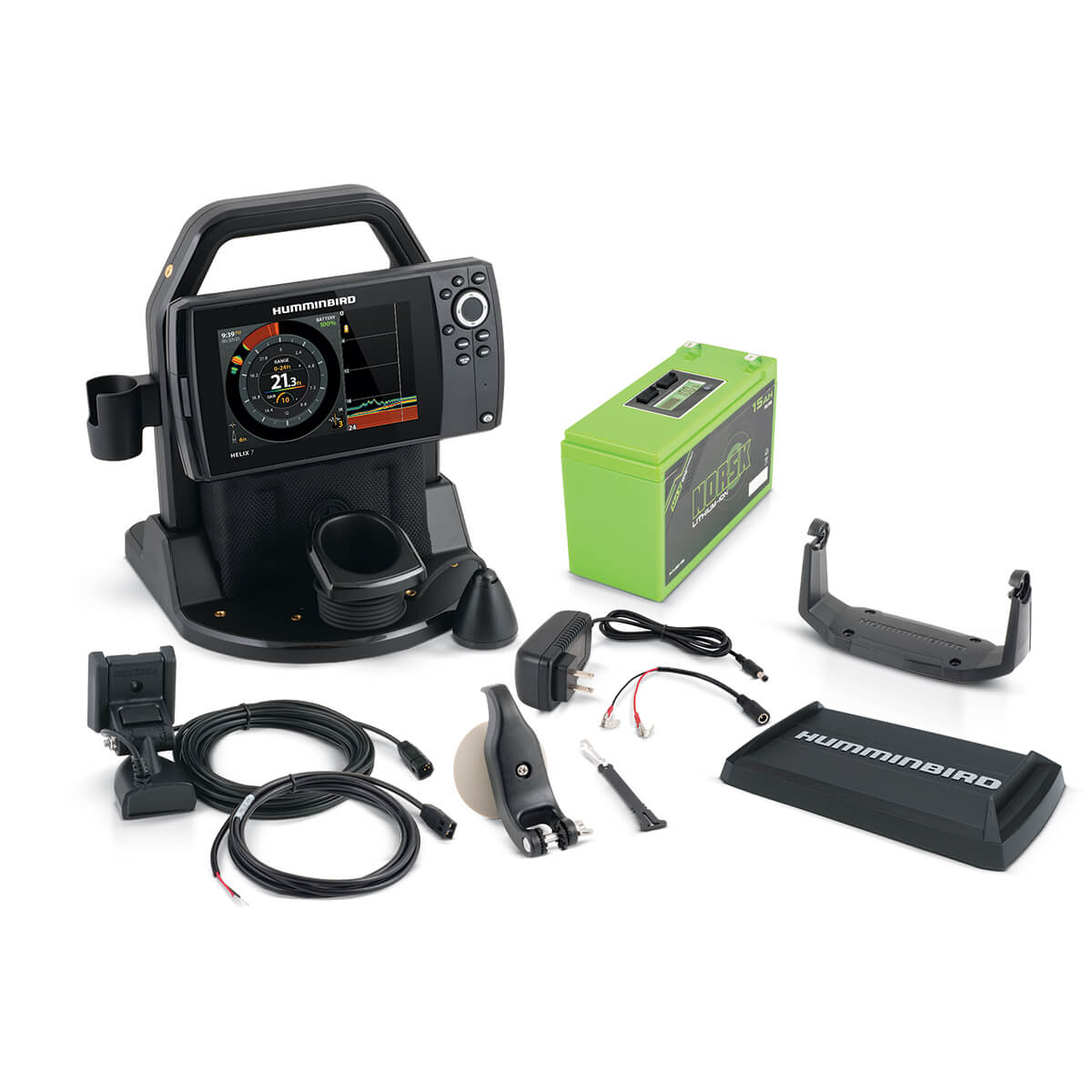

What's in the Box:

• ICE HELIX 7 CHIRP GPS G4 fish finder


• Dual Spectrum CHIRP ICE transducer XI 9 1521


• 15Ah lithium battery with 2 USB ports and battery life indicator, charger


• ICE shuttle


• Hardware


• quick-connect SAE power cables


• silicone screen cover


• All necessary accessories to use on a boat or in portable applications (transom mount CHIRP transducer with optional suction cup transducer mount, fish finder gimbal mount and power cord)
