Iris Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af & 3at Compliant - 9-30VDC Input - 48VDC Output

Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af & 3at Compliant - 9-30VDC Input - 48VDC Output

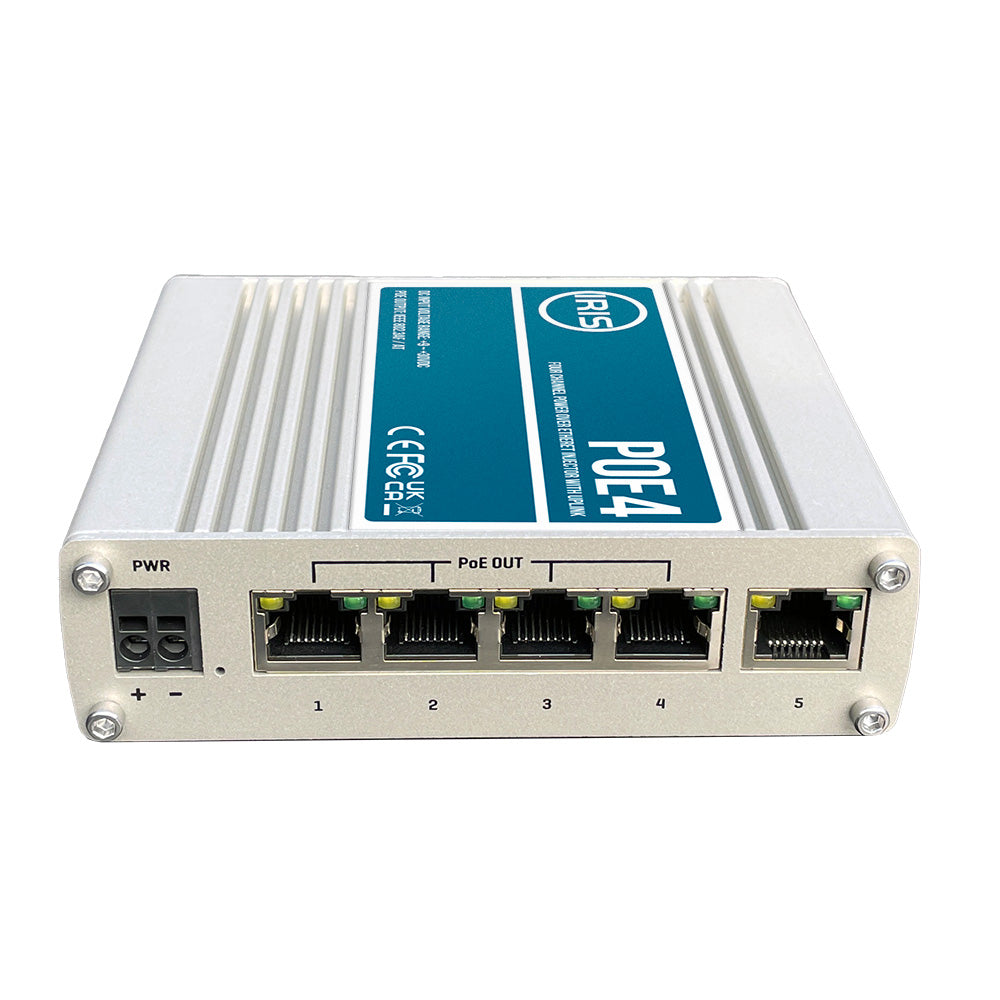

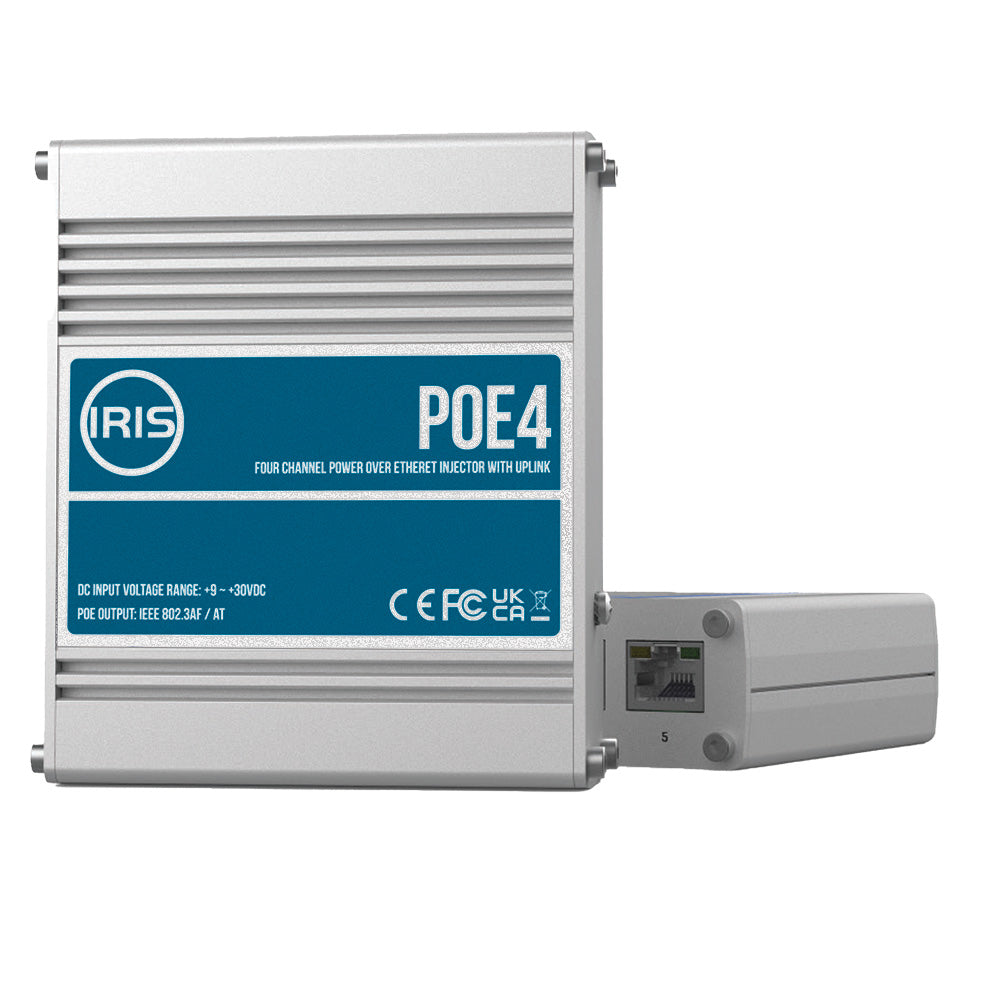

The new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3af/3at devices from battery sources such as boats and vehicles.

The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port, providing power to up to 4 devices at 15W each, 2 devices at 30W each, or 1 device at 30W, and further 2 devices at 15W.

The unit features a passive uplink port to enable connections to other network switch equipment, routers, or modems.

The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices, reducing cost and adding convenience.

Features:

• Compact and robust housing


• Wide input voltage range of 930VDC


• Perfect for boats and vehicles


• 60W power budget


• IEEE802.3af / 3at compliant


• Up to 30W per channel


• Plug and play operation - no configuration required


• 48VDC PoE output voltage to your devices


• Provides power to devices up to a 100-meter cable length


• Simplifies installations

Specifications:

• Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mm


• Material: Aluminium, soft anodized


• PoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE)


• Total PoE Budget: 60W across 4 PoE Ports


• Maximum Cable Length: 100 Meters


• Approvals / Standards CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10


• Input Voltage Range: 9 30 VDC


• Output Voltage: 48 VDC


• Power Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106W


• Environmental: IP30 - Install in a dry dust free environment. Do not expose to moisture.
