Lowrance LINK9 VHF DSC AIS-RX

Lowrance LINK9 VHF DSC AIS-RX

Lowrance LINK9 VHF

• Lowrance Link-9 Replaces the current Link-8 VHF


• New front mountable design for easy installation


• New Industrial Design to align with style of Lowrance MFD’s


• Seamless integration with a wider B&G system through NMEA 2000 and 0183


• Built in AIS Receiver


• Large screen with intuitive user interface


• With the integrated GPS receiver the Link-9 now has four ways to ensure you have a GPS fix in the event of an emergency.


• A GPS antenna in the face of the radio means open air installations don’t need another antenna at all


• An SMA connector on the rear case allows for connection to a GPS-500 antenna


• NMEA 0183 allows you to get GPS from a chartplotter


• NMEA 2000 means you don’t need another antenna if you already have one in your network


• A dual-channel AIS receiver monitors the position of nearby AIS-equipped vessels, helping you to avoid collisions in crowded harbours and waterways.


• AIS information can be viewed on the Link-9’s built-in screen, or overlaid on your chart or radar screen through a compatible multifunction display.


• The Link-9’s removable fist mic can be connected to the front or rear of the radio, and optional extension cable allows the radio and mic to be mounted separately.


• This offers a simple and cost-effective solution for any mounting location, with no cable clutter.


• For example, the Link-9 can be mounted overhead, with no hanging cables, while the mic is connected to an extension socket on the dash below.


• Link-9 features easily removable top and bottom bezels which reveal mounting holes allowing the same style of mounting from the front that is featured on Lowrance MFDs.


• Track up to 5 buddies


• Polls your contacts for their Lat/Long position automatically


• Can be set to 1, 5, 15, 30 or 60 minute intervals


• Displays the position on a compatible chart plotter


• Great for keeping track of friends, family or vessels you need to know the position of that don’t have AIS


• Press the NAV button on the Link-9 to turn it into a navigational instrument displaying your Speed and Course.


• V60 also contains a Man Overboard (MOB) function, hold down the NAV/MOB button to drop a waypoint on your current location and the Link-9 will enter MOB mode to show you how far away you are and where you need to steer to get back to the position of the MOB event. The MOB waypoint is also transmitted over NMEA 2000 to the rest of your network.

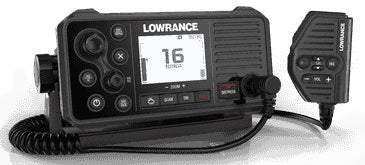

Lowrance LINK-9 marine VHF radio with DSC and AIS receive

Temperature range
-15 to +55°C (+5 to +131°F)

Waterproof
IPX7

Power

Normal Working Voltage
+13.6 V DC

Minimum operating Voltage
≤ 10 V DC

Low battery detect Voltage
10.5 ± 0.5 V DC

Over Voltage Protection
>15.8 ± 0.5 V DC

Hailer Audio Power Out
30 W

Current Drain RX Max Audio Power
≤ 1.5 A

Current Drain Stand-By RX
≤ 0.45 A

Current Drain At 12V DC : Hi Power TX
≤ 6 A

Current Drain At 12V DC : Lo Power TX
≤ 1.5 A

General

Channels
PLL

LCD Display
FSTN 256x160 Pixels

AIS Max Targets
AIS Max Targets

Transmitter

RF Power : Hi
23 ± 2 W

RF Power : Lo
0.8 ± 0.2 W
