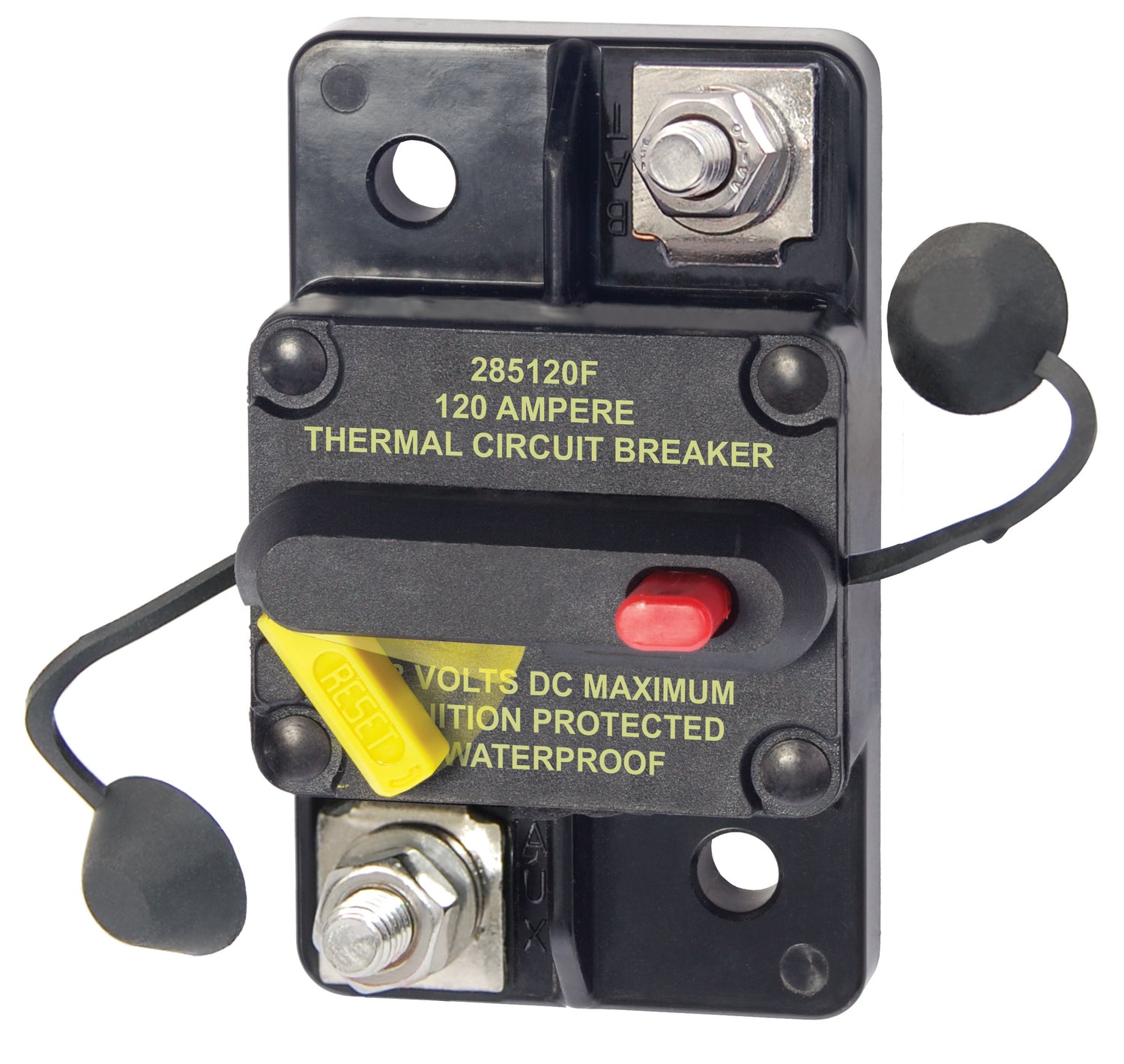

Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 120A

• Drop in replacement for 185-Series Circuit Breakers


• Visible reset lever shows open condition


• Ignition protected - Safe for installation aboard gasoline powered boats


• Meets SAE J1171 external ignition protection requirements


• Weather Resistant


• Combines switching and circuit breaker function into one unit*


• "Trip Free" - cannot be held closed after trip

* Do not use as a switch where high inrush currents are expected

Amperage
120A

Maximum Voltage
48V DC

Mounting
Surface Mount

Circuit Breaker Type
Thermally responsive Bi-metal blade

Terminal Stud Torque
50 in-lb (5.65 Nm)

Interrupt Capacity
3000A @ 48V

Minimum Operating Temperature
-40° C

Maximum Operating Temperature
85° C

Circuit Breaker Class
Type III - switchable/manual reset - trip free

Terminal Stud
M6 (accepts 1/4" Ring Terminal)
