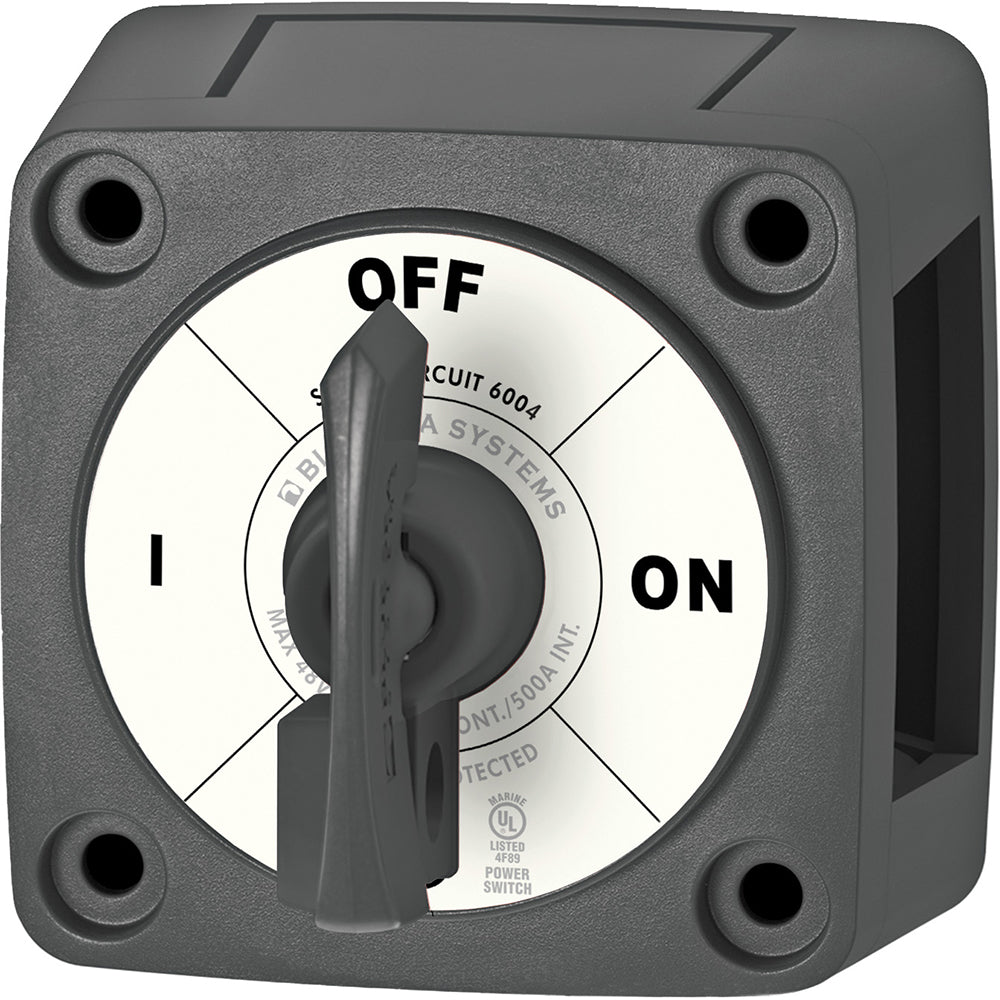

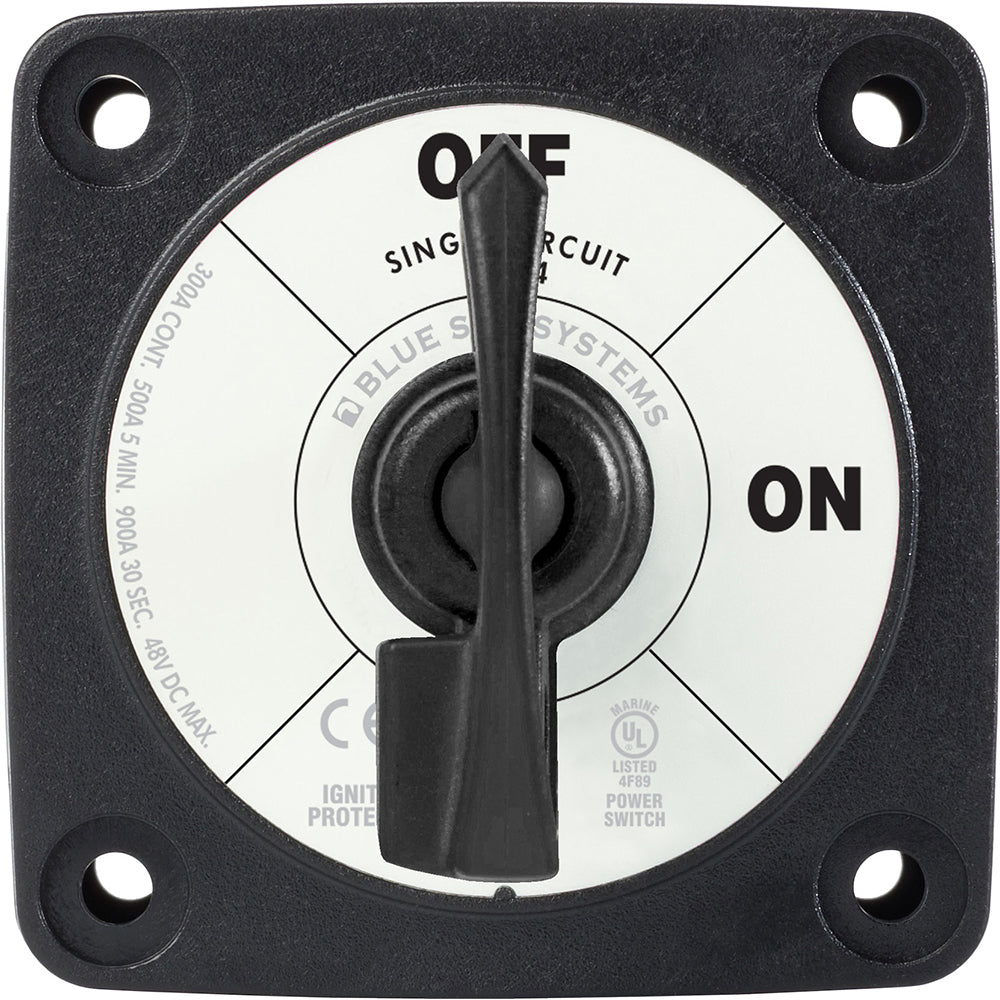

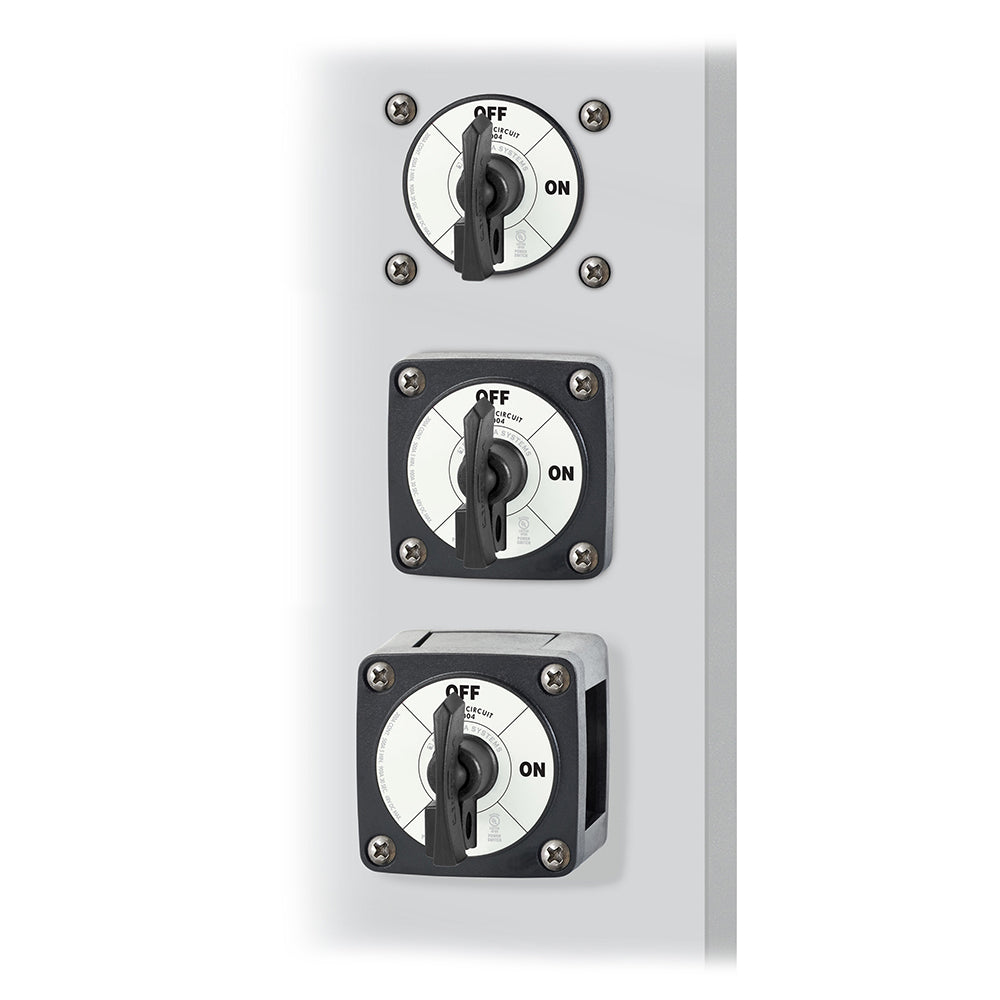

Blue Sea 6004200 Single Circuit ON-OFF w/Locking Key - Black

Single Circuit ON-OFF with Locking Key - Black

300 Amps continuous rating for outboards and small gasoline or diesel engines

• Tin-plated copper studs for maximum conductivity and corrosion resistance




• Studs accept 3/8" (M10) ring terminals




• 7/8" (22 mm) stud length accepts multiple cable terminals




• Blue Sea Systems one-piece terminal stud design never loosens over time




• One-piece stainless flange nuts ensure safe and secure connections

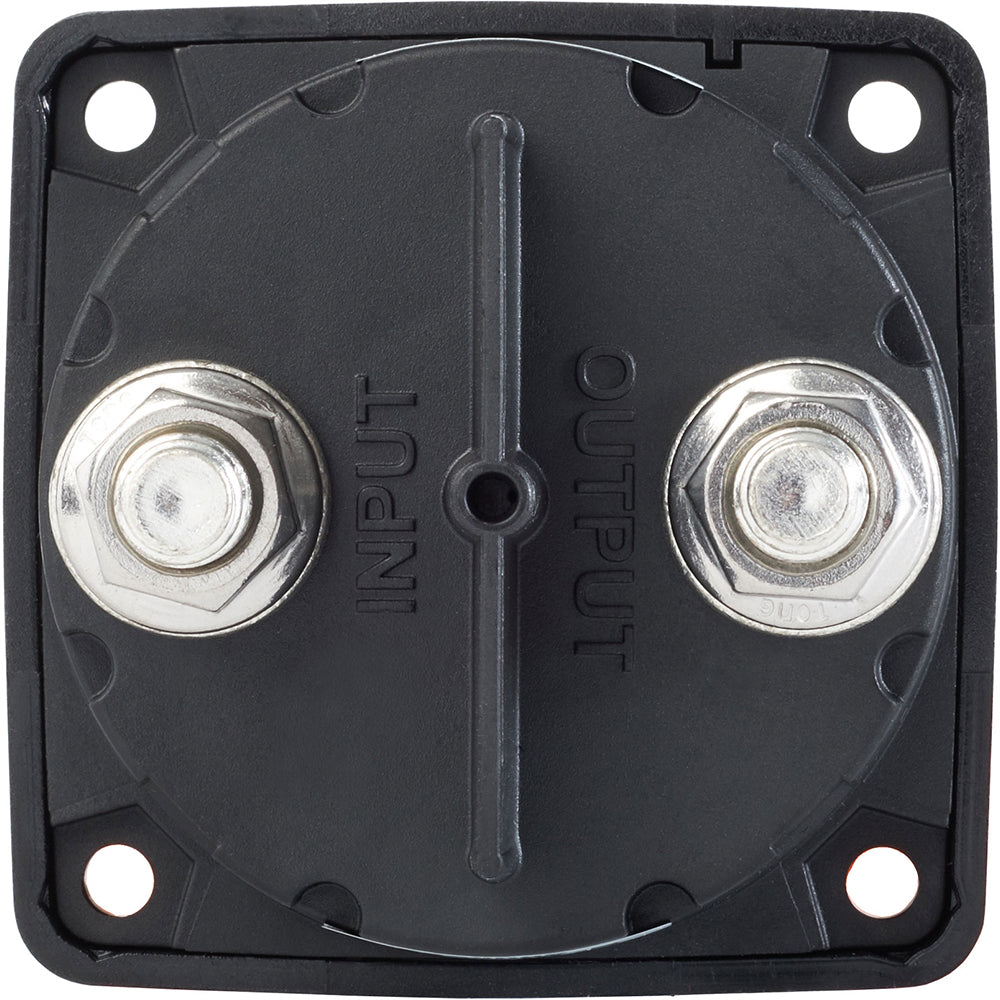

• Isolating cover protects rear contacts




• Breakout tabs allow wire access in any direction

• Switch Type: Single Circuit ON-OFF




• Color: Black




• Maximum Voltage: 48V DC




• Continuous Rating: 300A




• Intermittent Rating: 500A




• Cranking Rating 30 sec: 900A
