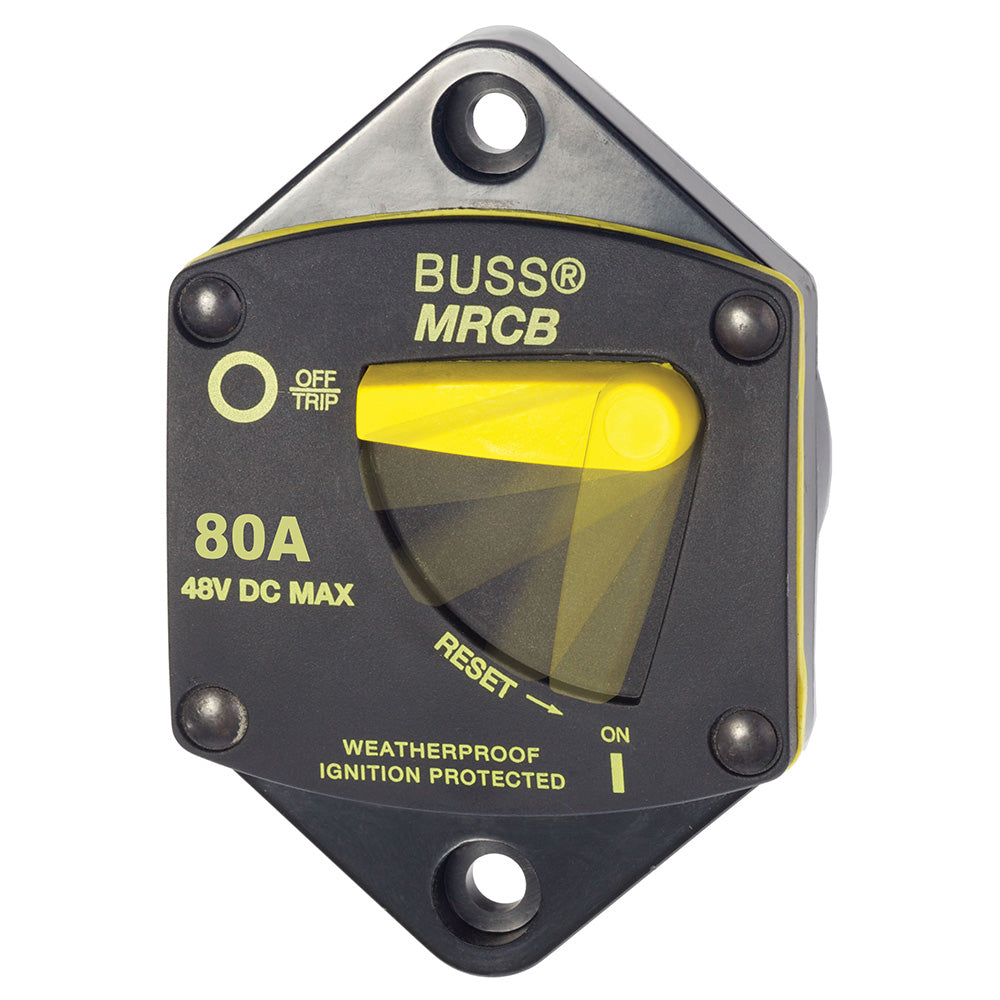

Blue Sea 7042 187-Series Circuit Breaker - Panel Mount 80A

7042 187-Series Circuit Breaker - Panel Mount 80A

Features:

• Combines switching and circuit protection into a single device*


• Precise, single-lever operation


• "Trip Free" design cannot be held "ON" during fault current condition


• Waterproof


• Recessed mounting holes for clean appearance


• Ample Clearance around terminal studs accepts heavy gauge wire lugs


• Robust 5/16 M8 terminals provide high torque connections


• Large lever with vertical/horizontal orientation provides indication of trip status


• Ignition-protected - Safe for installation aboard gasoline powered boats

Specifications:

• Amperage: 80A


• Maximum Voltage: 48V DC


• Mounting: Panel Mount


• Circuit Breaker Type: Thermally responsive Bi-metal blade


• Terminal Stud Torque: 75 in-lb (8.47 Nm)


• Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC


• Minimum Operating Temperature: -40° C


• Maximum Operating Temperature: 85° C


• Case Material: Thermoset Polyester


• Circuit Breaker Class: Type III - switchable/manual reset - trip-free


• Mounting Hole: Accept #10 (M5) Screw


• Terminal Stud Size: 5/16" - 18


• Weight: 0.5lb (0.23 kg)


• Weight: 0.50lb (0.23 kg)

* Do not use as a switch where high inrush currents are expected.
