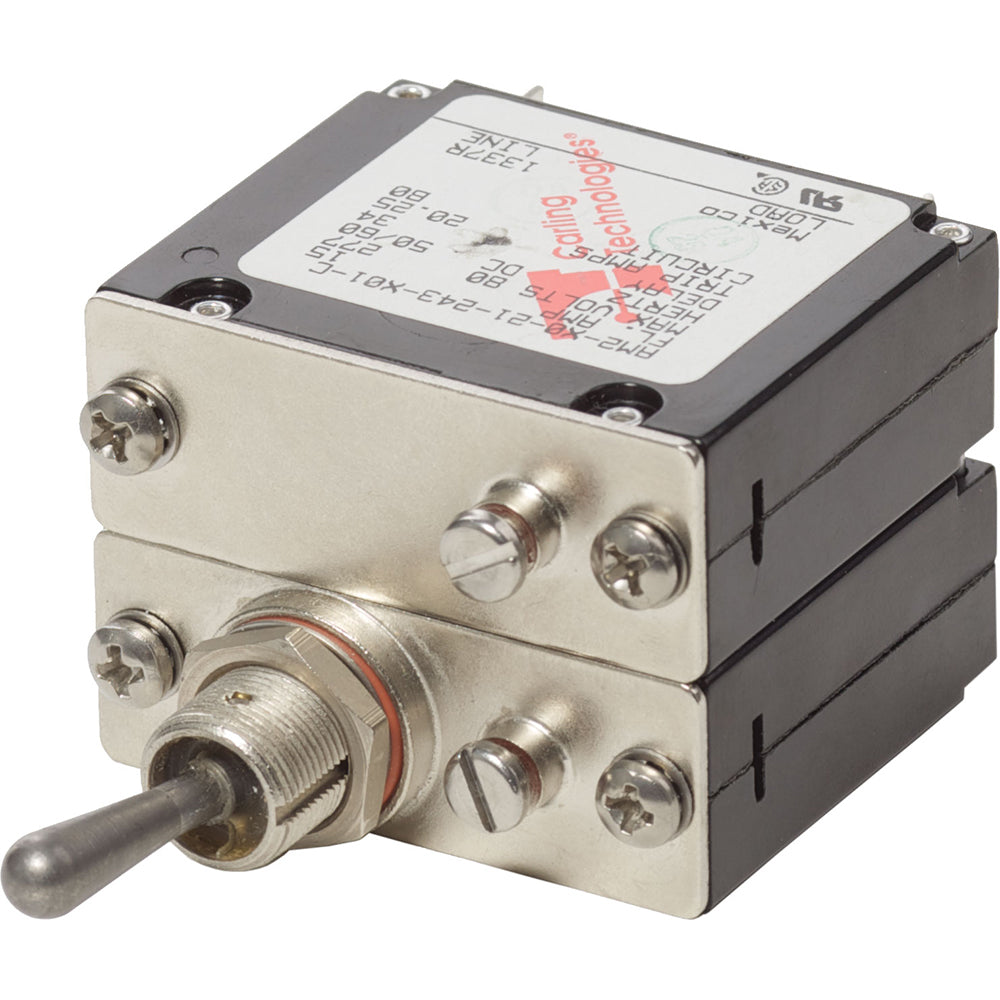

Blue Sea 7312 COTS Military Grade A-Series 15 Amp

7312 COTS Military Grade A-Series 15 Amp

May be suitable for use when military specifications are required under CFR 46.

Specifications:

• Amperage: 15A


• Actuator Style: Metal Toggle


• Poles: 2


• Max Voltage: 277V AC, 65V DC


• Circuit Breaker Type: Magnetic Hydraulic - Trip Free


• Interrupt Capacity: 1500 A AC, 7500A DC


• Min Operating Temp: -40°C


• Max Operating Temp: 85°C


• Mounting Boss: 1/2-32 Hex Nut SS


• Mounting Nut Torque: 30"-lb


• Screw Terminal Torque: 14"-lb


• Switching Cycles: 6000 Electrical/4000 Mechanical


• Terminal Screw: #10-32 SS


• Weight: 0.13lb (0.06 kg)


• UL 1077
