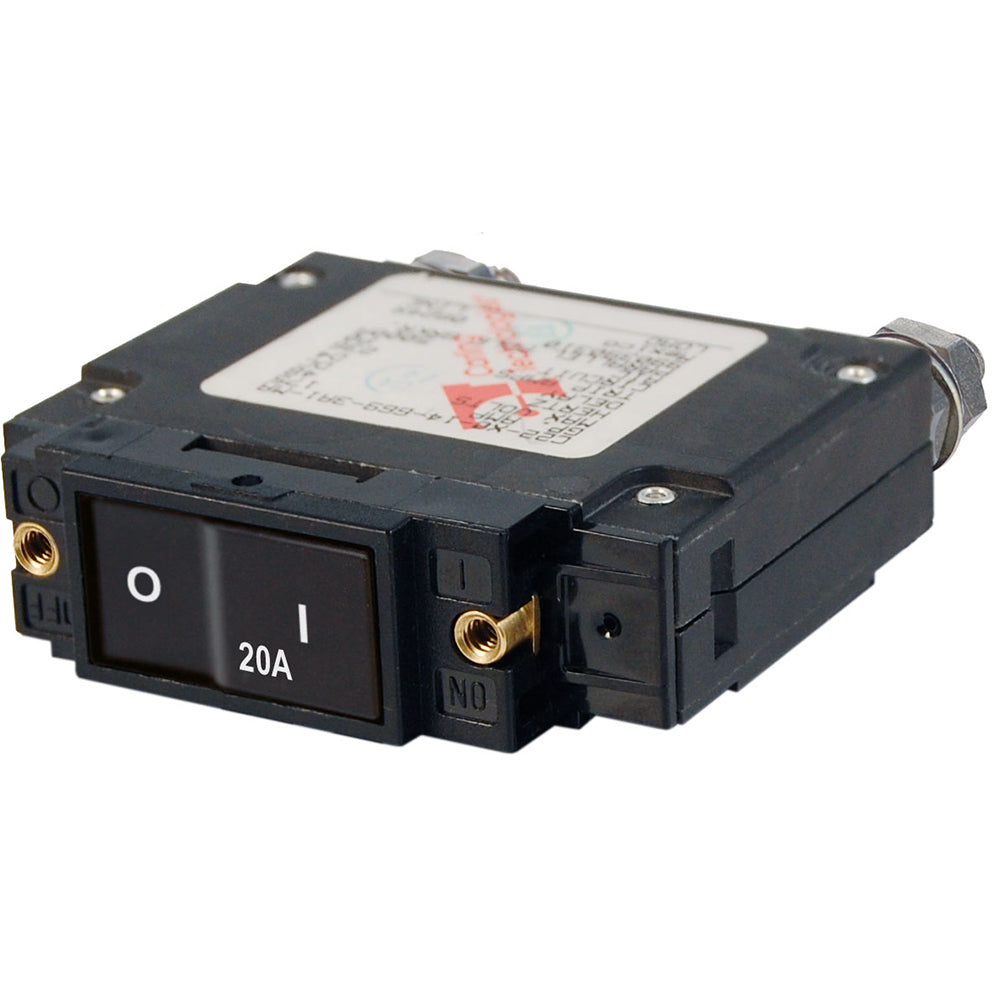

Blue Sea 7543 C-Series Flat Rocker Circuit Breaker - Single Pole - 20A

C-Series Flat Rocker Circuit Breaker - Single Pole - 20A

Features:

• Rocker actuator is flush in the "ON" position, eliminating the risk of accidential switching




• Color actuator indicates "OFF" position




• Provides overcurrent protection for inverters, bow thrusters, and windlasses




• Combines switching and circuit protection into a single device




• "Trip Free" - cannot be held closed after trip




• Ignition protectedsafe for installation aboard gasoline powered boats

• Amperage: 20A AC / 20A DC




• Actuator Style: Flat Rocker




• Poles: 1




• Maximum Voltage: 240V AC / 48V DC




• Circuit Breaker Type: Magnetic Hydraulic - trip free




• Terminal Stud Torque: 35 in-lb (3.95 Nm)


• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC




• Minimum Operating Temperature: -40° C




• Maximum Operating Temperature: 85° C




• Mounting Screw: #6-32 Stainless Steel




• Mounting Screw Torque: 6 in-lb (0.68 Nm)




• Switching Cycles: 10000




• Terminal Stud: 1/4-20 Tin-Plated Brass




• Weight: 0.38lb (0.17 kg)
