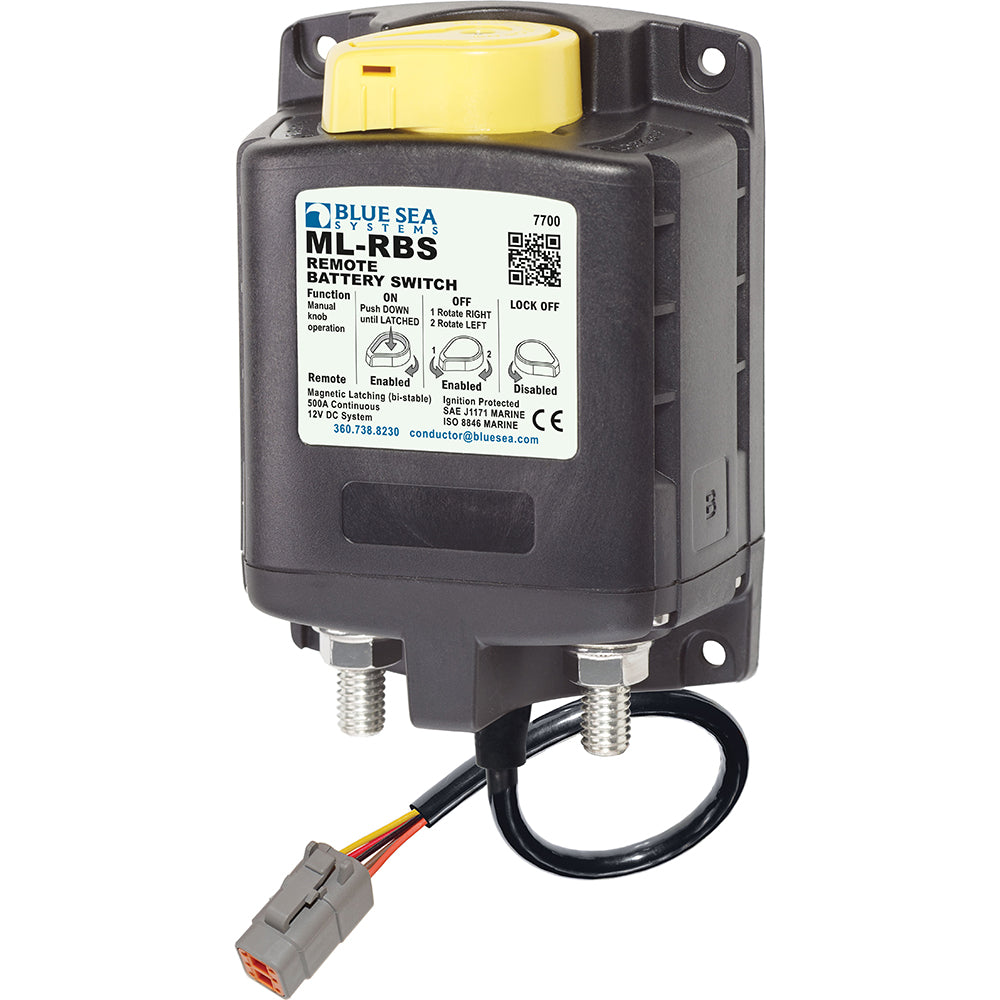

Blue Sea 7700100 ML Solenoid 12V 500A w/Manual Control & Deutsch Connector

7700100 ML Solenoid 12V 500A with Manual Control & Deutsch Connector

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.

Features:

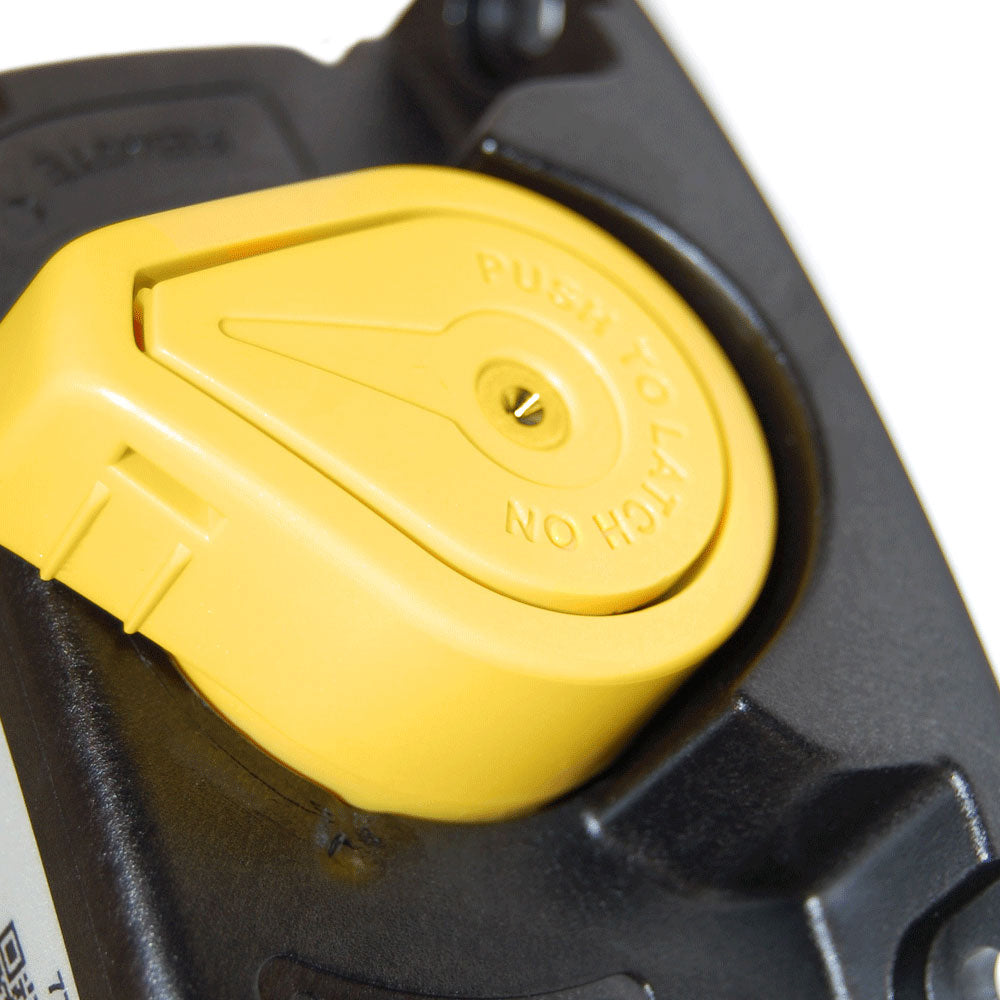

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing


• LED output to remotely indicate switch state - requires optional LED


• 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance


• 7/8" (22 mm) stud length accepts multiple cable terminals


• Label recesses for circuit identification


• Silver alloy contacts provide high reliability for switching live loads

Specifications:

• Control Circuit Connection: Deutsch DTM


• Nominal Voltage: 12VDC


• Coil Function: Bi-Stable


• Mounting: #10


• Amperage Operating Current Continous: 0mA


• Terminal Stud Torque: 140 in-lb (15.82 Nm)


• Continuous Rating: 500A


• Intermittent Rating: 700A (5 min)


• Cranking Rating 30 Seconds: 1450A DC


• Cable Size to Meet Ratings: 2x (4/0)


• Live Current Switching: 300A@12VDC


• Master Control Switch Capability: No


• Mechanical Endurance: 100,000 Cycles


• Terminal Ring Diameter Clearance: 1.18" (29.97 mm)


• Terminal Stud Length: 0.875" (22.23 mm)


• Terminal Stud Size: 3/8" - 16 (M10)


• Weight: 1.75lb (0.79 kg)
