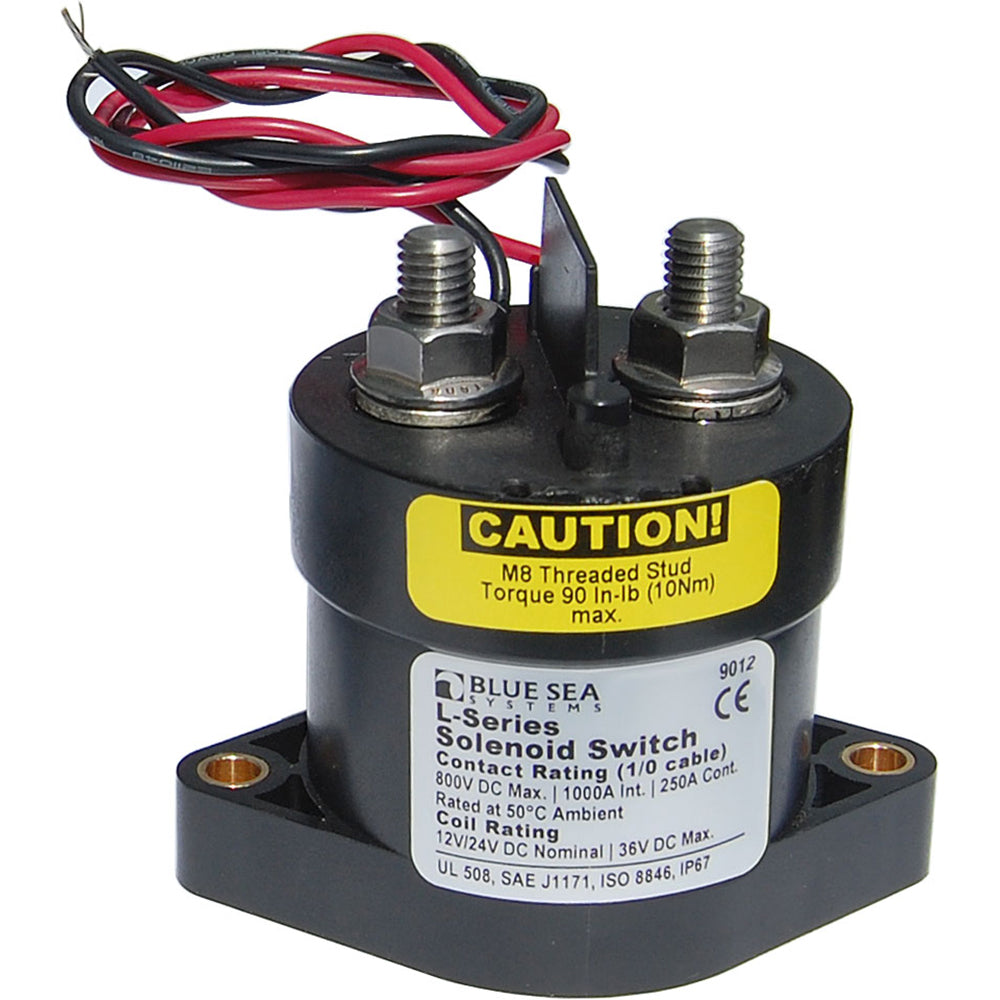

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A

L Solenoid Switch - 12-24VDC - 250A

Features:

• Hermetically sealed contacts / vaporproof


• Ignition protected - safe for installation aboard gasoline powered boats


• Activated by an ON-OFF switch mounted anywhere


• Integrated coil control minimizes heating and amperage draw


• 450 Amp Class


• Designed for 12 or 24 Volt systems


• Ignition protected -- safe for installation aboard gasoline-powered boats


• Activated by a low amperage ON-OFF switch mounted anywhere

Specifications:

• Control Circuit Connection: 20 AWG Tinned Wire


• Nominal Voltage: 12V DC / 24V DC


• Coil Function: Normally Open


• Mounting: #10


• Operating Amperage Current: 3.6A when changing state


• Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V


• Terminal Stud Torque: 90 in-lb (10.17 Nm)


• Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size


• Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size


• Cranking Rating 30 sec: 1,000A / 1000A DC


• Contact Form: SPST-NO


• Input Voltage: 9-36V DC


• Inrush Rating: 0.25 sec (10 repeats): 2000A


• Switching Cycles: 1,000,000


• Terminal Stud: Serrated Flange Nut


• Terminal Stud Length: 0.66" (16.76mm)


• Terminal Stud Size: 5/16" (M8)


• Weight: 1.00lb (0.45 kg)
