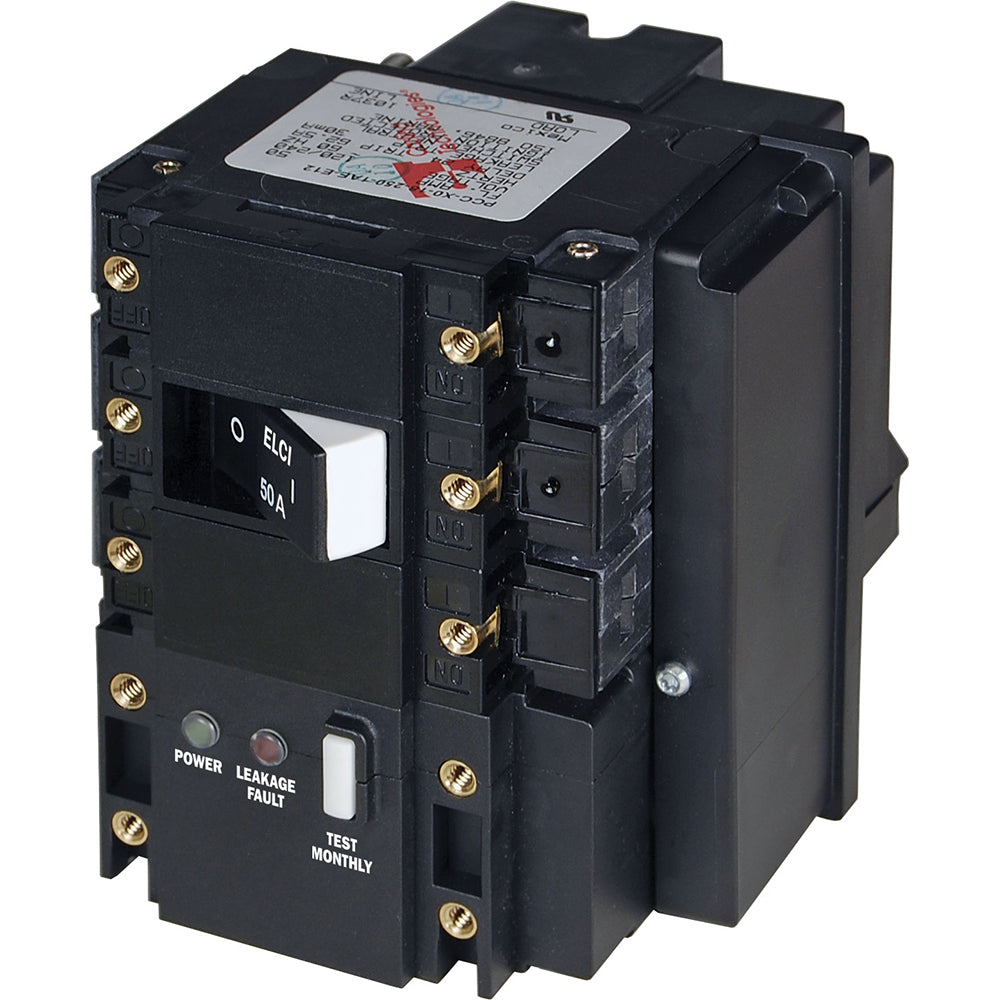

Blue Sea C-Series ELCI Main Circuit Breaker - 120/240V AC 50A

C-Series ELCI Main Circuit Breaker - 120/240V AC 50A

Features:

• Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection


• Meets UL 1500 external ignition protection requirements


• Trips on short circuit, overload, or leakage to ground


• Front panel mount—installed in a power distribution panel

Specifications:

• Amperage: 50A


• Actuator Style: Flat Rocker


• Poles: 3


• Ignition Protected: Yes


• Max Voltage: 120VAC per pole/240VAC per pole


• Circuit Breaker Type: Magnetic Hydraulic - trip free


• Interrupt Capacity: 5000A


• Minimum Operating Temperature: -35 degrees C


• Max Operating Temperature: 66 degrees C


• Leakage Trip Amps: 30mA
