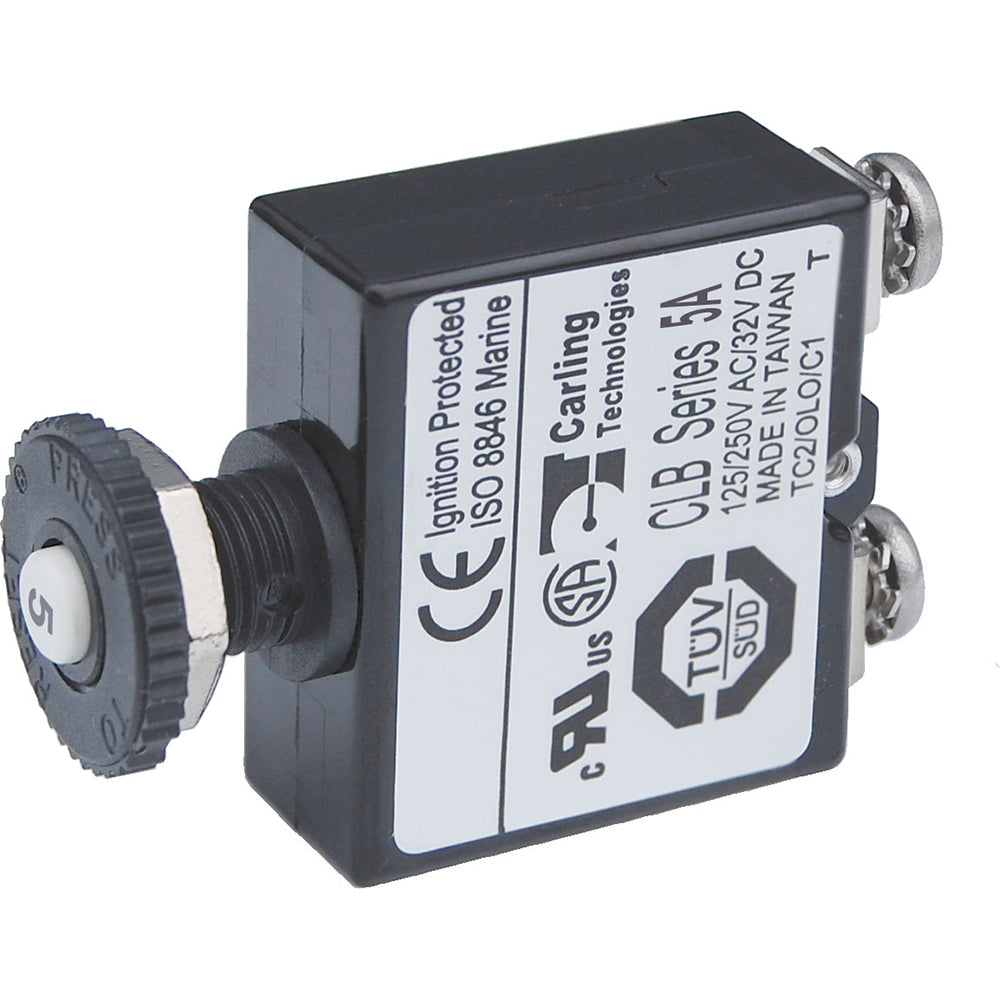

Blue Sea Push Button Reset Only Screw Terminal Circuit Breaker - 5 Amps

Push Button Reset Only Screw Terminal Circuit Breaker - 5 Amps

Features:

• Branch circuit breakers (can also be used for 24-hour circuit protection)




• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels




• Compact design enables high density circuit protection configurations




• Push-to-reset operation




• "Trip Free" design cannot be held "ON" during fault current condition




• Ignition protected - Safe for installation aboard gasoline powered boats




• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 5A




• Maximum Voltage: 32V DC




• Mounting: Panel Mount 3/8-27 UNS




• Circuit Breaker Type: Thermal trip, manual push-button reset only




• Terminal Type: #8 Screw




• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V




• Minimum Operating Temperature: -10° C




• Maximum Operating Temperature: 60° C




• Screw Terminal Torque: 6 in-lb (0.68 Nm)




• Weight: 0.09lb (0.04 kg)
