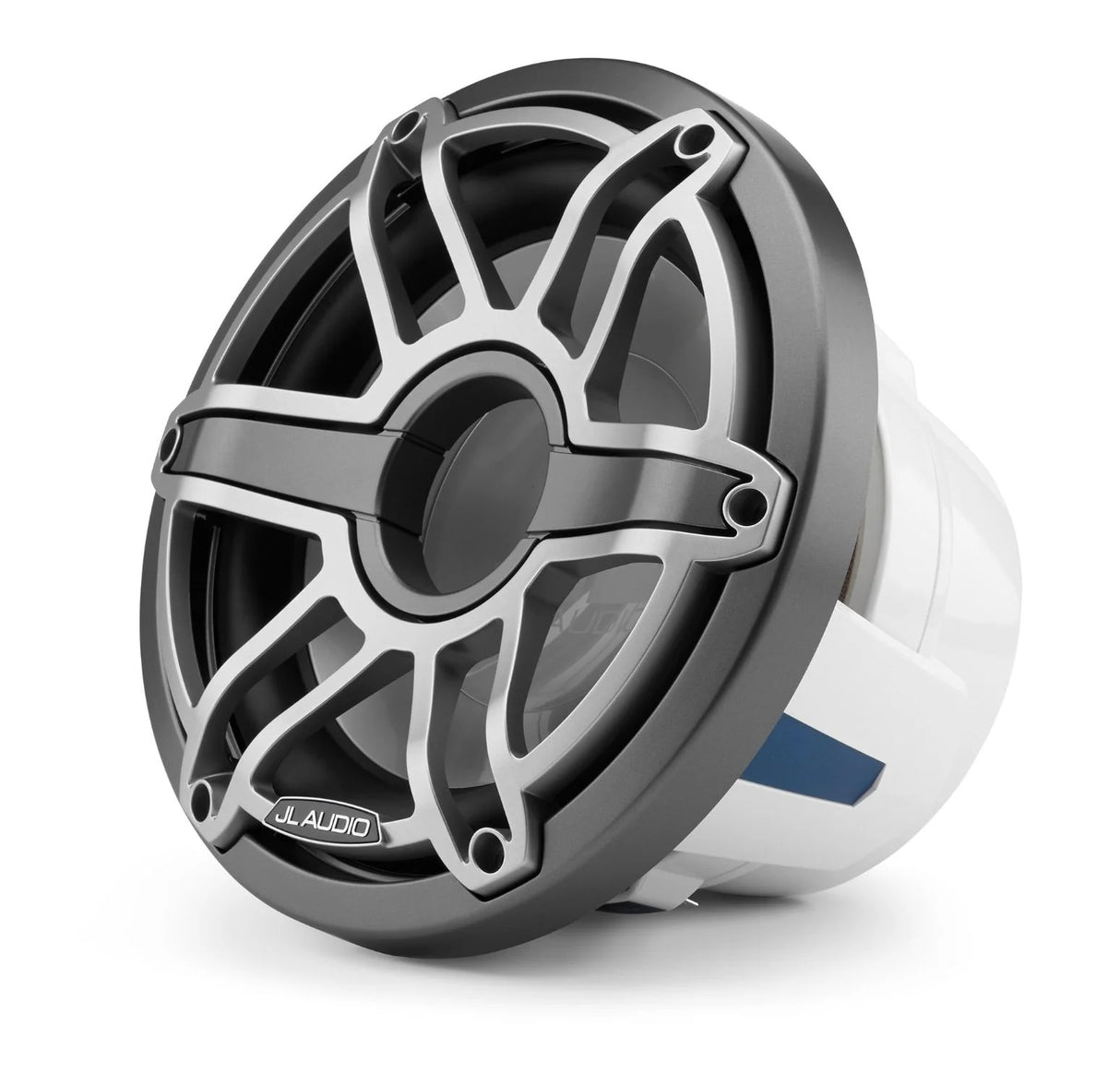

JL Audio M6 10in Subwoofer with Titanium Sport Grille Infinite Baffle

JL Audio M6 10in Subwoofer with Titanium Sport Grille Infinite Baffle

93637

Model: M6-10IB-S-GmTi-4

M6 10-inch Marine Subwoofer for Infinite-Baffle Use (250 W, 4 ohms) - Gray Metallic Trim Ring, Titanium Sport Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6 infinite-baffle woofers are designed to operate without a dedicated enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

The M6-10IB is best used with amplifier power in the 75W - 250W range and is optimized to operate with a large volume of air behind it (at least 2 cu. ft. / 56.6 l). If you need a Subwoofer that operates in a small sealed enclosure, select our M6-10W, instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications

General Specifications

Continuous Power Handling (RMS)
250 W

Nominal Impedance (Znom)
4 ohms

Physical Specifications

Nominal Diameter
10.0 in / 250 mm

Overall Diameter
10.75 in / 273 mm

Bolt Hole Circle Diameter
9.70 in / 247 mm

Frontal Grille Protrusion
1.66 in / 42 mm

Mounting Hole Diameter
8.875 in / 225 mm

Mounting Depth
5.90 in / 150 mm

Driver Displacement
0.052 cu ft / 1.47 L

Net Weight
12.60 lb / 5.70 kg

Parameters

Free Air Resonance (Fs)
43.76 Hz

Electrical "Q" (Qes)
0.907

Mechanical "Q" (Qms)
11.315

Total Speaker "Q" (Qts)
0.84

Equivalent Compliance (Vas)
0.54 cu ft / 15.29 L

One-Way Linear Excursion (Xmax)*
0.52 in / 13.2 mm

Reference Efficiency (no)
0.28%

Efficiency (1 W / 1 m)**
86.1 dB SPL

Effective Piston Area (Sd)
50.11 sq in / 0.0323 sq m

DC Resistance (Re)
4.54 ohms

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Sealed Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
2.00 cu ft / 56.6 L

External Width
17 in / 432 mm

External Height
17 in / 432 mm

External Depth
16.25 in / 413 mm

F3
41.54 Hz

Fc
53.41 Hz

Qtc
1.0253

Ported Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
2.50 cu ft / 70.8 L

External Width
17 in / 432 mm

External Height
17 in / 432 mm

External Depth
20.50 in / 676 mm

Internal Port Diameter
4 in / 102 mm

Port Length
12 in / 305 mm

Tuning Frequency (Fb)
37 Hz

F3
25.09 Hz
