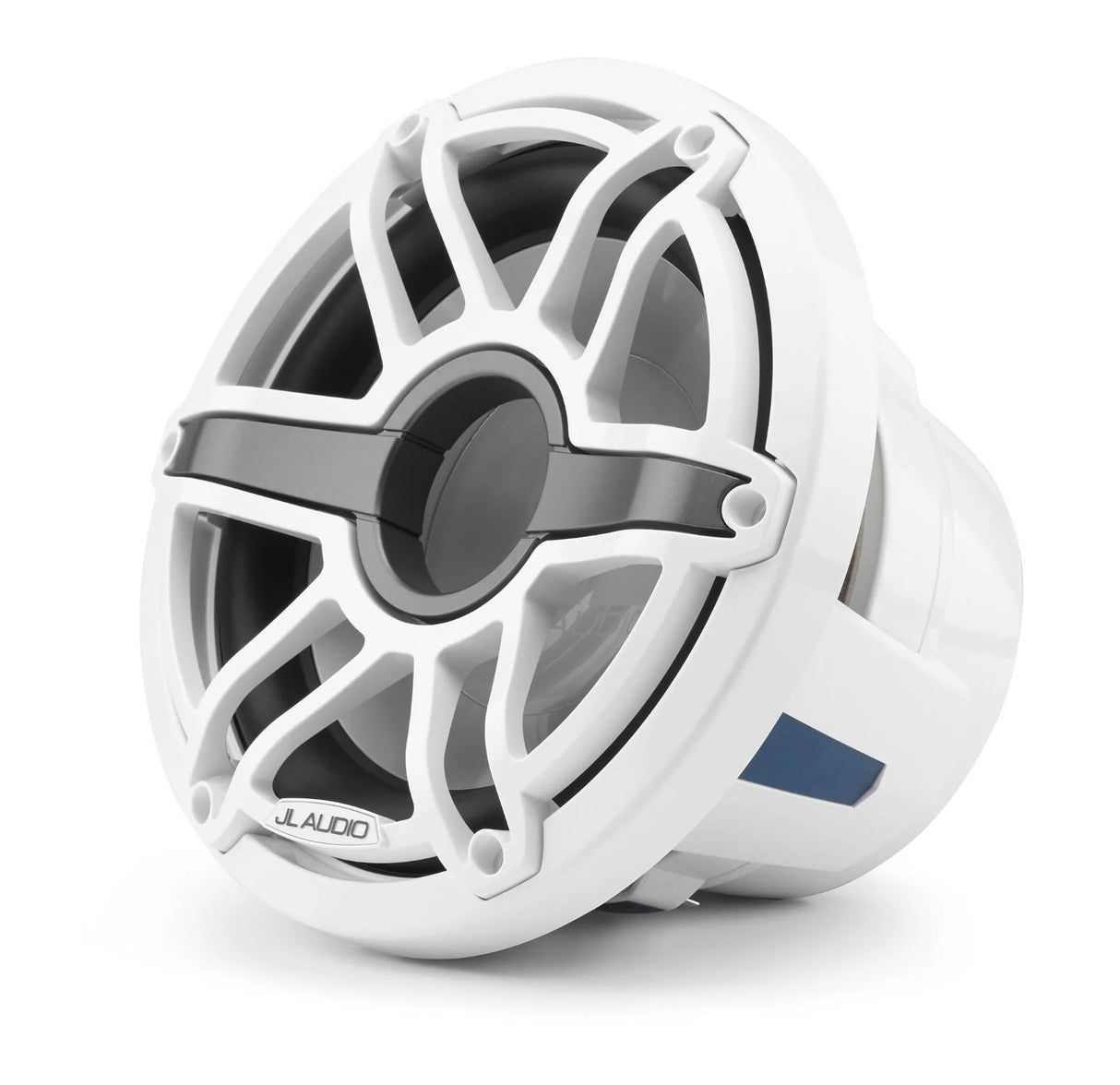

JL Audio M6 10in Subwoofer with White Sport Grille

JL Audio M6 10in Subwoofer with White Sport Grille

93644

Model: M6-10W-S-GwGw-4

M6 10-inch Marine Subwoofer for Enclosed Use (250 W, 4 ohms) - Gloss White Trim Ring, Gloss White Sport Grille

With appropriate system setup, the addition of a subwoofer allows your smaller main speakers to be free of the burden of reproducing low frequencies. This allows your whole system to play louder and to sound cleaner at all listening levels.

Purpose-engineered and built for real marine duty, the M6-10W subwoofers are designed to operate in a compact sealed enclosure. Long excursion capability and rugged suspension systems help produce deep, powerful bass response that will transform your boat's audio system.

The M6-10W is best used with amplifier power in the 75W - 250W range and is optimized to operate in a compact 0.75 cu. ft. (21.2 l) sealed enclosure, or a 1.50 cu. ft. (42.5 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab. If you need a Subwoofer that operates without a dedicated enclosure, select one of our Infinite Baffle Subwoofers instead.

Like all JL Audio marine speakers, this driver is built to withstand a real saltwater marine environment and deliver years of listening enjoyment.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold individually.

USA Limited Warranty: Two (2) years from the original date of purchase.

Specifications

General Specifications

Continuous Power Handling (RMS)
250 W

Nominal Impedance (Znom)
4 ohms

Physical Specifications

Nominal Diameter
10.0 in / 250 mm

Overall Diameter
10.75 in / 273 mm

Bolt Hole Circle Diameter
9.70 in / 247 mm

Frontal Grille Protrusion
Frontal Grilles Protrusion

Mounting Hole Diameter
8.875 in / 225 mm

Mounting Depth
5.90 in / 150 mm

Driver Displacement
0.052 cu ft / 1.47 L

Net Weight
12.60 lb / 5.70 kg

Parameters

Free Air Resonance (Fs)
34.58 Hz

Electrical "Q" (Qes)
0.522

Mechanical "Q" (Qms)
9.78

Total Speaker "Q" (Qts)
0.496

Equivalent Compliance (Vas)
1.22 cu ft / 34.49 L

One-Way Linear Excursion (Xmax)*
0.52 in / 13.2 mm

Reference Efficiency (no)
0.28%

Efficiency (1 W / 1 m)**
86.4 dB SPL

Effective Piston Area (Sd)
50.11 sq in / 0.0323 sq m

DC Resistance (Re)
3.619 ohms

* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is "louder".
Sealed Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
0.75 cu ft / 21.2 L

External Width
17 in / 432 mm

External Height
17 in / 432 mm

External Depth
7.25 in / 184 mm

F3
41.54 Hz

Fc
53.41 Hz

Qtc
0.8035

Ported Enclosure Specifications

Wall Thickness
0.75 in / 19 mm

Front Baffle Thickness
0.75 in / 19 mm

Volume (net int.)
1.50 cu ft / 42.5 L

External Width
17 in / 432 mm

External Height
17 in / 432 mm

External Depth
13.125 in / 333 mm

Internal Port Diameter
3 in / 76 mm

Port Length
11.125 in / 283 mm

Tuning Frequency (Fb)
31 Hz

F3
29.81 Hz
