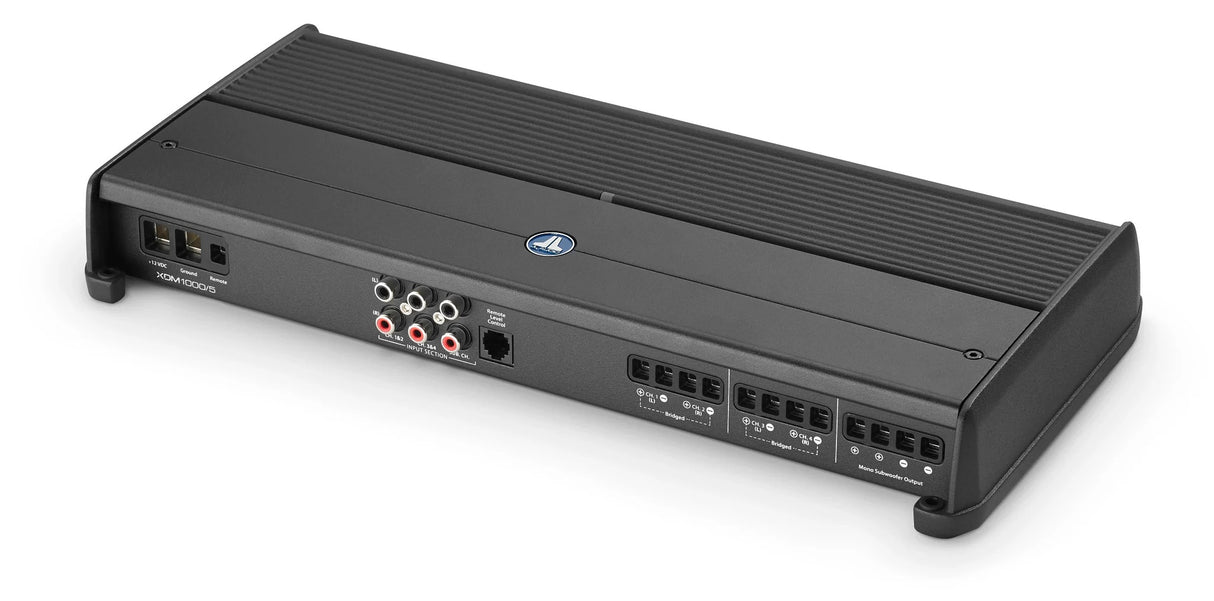

JL Audio XDM1000/5 5 Ch. Class D, Car/Marine System Amplifier, 1000 W

Model: XDM1000/5

The XDM1000/5 delivers up to 1000 W of clean power and is ideal for an audiophile-grade, subwoofer + four satellite system. With this potent powerhouse, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ohms), while also generating a stout 600 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD™ switching amplifier design.

Suitable for car or boat installations, the XDM1000/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.

The XDM1000/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An "x10" multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.

Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.

Specifications

Rated Continuous (RMS) Power @ 14.4 V

Main Channels @ 4 ohms
75 W RMS x 4

Main Channels @ 2 Ohms
100 W RMS x 4

Main Channels - Bridged @ 4 Ohms
200 W RMS x 2

Subwoofer Channel @ 4 Ohms
400 W RMS x 1

Subwoofer Channel @ 3 Ohms
500 W RMS x 1

Subwoofer Channel @ 2 Ohms
600 W RMS x 1

Subwoofer Channel @ 1.5 Ohms
N/A

Rated Continuous (RMS) Power @ 12.5 V

Main Channels @ 4 Ohms
60 W RMS x 4

Main Channels @ 2 Ohms
90 W RMS x 4

Main Channels - Bridged @ 4 Ohms
180 W RMS x 2

Subwoofer Channel @ 4 Ohms
360 W RMS x 1

Subwoofer Channel @ 3 Ohms
480 W RMS x 1

Subwoofer Channel @ 2 Ohms
600 W RMS x 1

Subwoofer Channel @ 1.5 Ohms
N/A

General Specifications

Frequency Response (Main Channels)
12 Hz - 22 kHz (+0, -1dB)

Frequency Response (Subwoofer Channel)
10 Hz - 1 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power (Main Channels)
>104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W
>84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 Ohms
>150 / 50 Hz

Damping Factor @ 2 Ohms
>75 / 50 Hz

THD+N @ Rated Power (Main Channels)
<1% @ 2 Ohms per Ch.

THD+N @ Rated Power (Subwoofer Channels)
<1% @ 2 Ohms per Ch.

Input Voltage Range @ RCA Inputs
200 mV - 4 V RMS

Min.Copper Power / Ground Wire Gauge
4 AWG wire

Fuse Rating
80 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s): Channels 1 & 2 (front)
High-Pass only

Filter Slope(s): Channels 1 & 2 (front)
12 dB/octave

Filter Frequency Range: Channels 1 & 2 (front)
50 Hz - 5 kHz

Filter Mode(s): Channels 3 & 4 (rear)
High-Pass or Bandpass

Filter Slope(s): Channels 3 & 4 (rear)
12 dB/octave

Filter Frequency Range: Channels 3 & 4
50 Hz - 500 Hz

Filter Mode(s): Subwoofer Channel
Low-Pass only

Filter Slope(s): Subwoofer Channel
12/24 dB/octave

Filter Frequency Range: Subwoofer Channel
50 Hz - 500 Hz

Detented, Calibrated Filter Freq. Potentiometers
Yes

Filter Defeat Function
Yes

Infrasonic Filter: Subwoofer Channel
none

Remote Level Control
Optional HD-RLC or MHD-RLC (water-resistant)

Remote Level Modes
Sub Ch. or All Channels

Channel Input Mode Switch
Yes (2/4/6 ch.)

Pass-Through Preamp Output
None

Source Channel Selection for PreOuts
N/A
