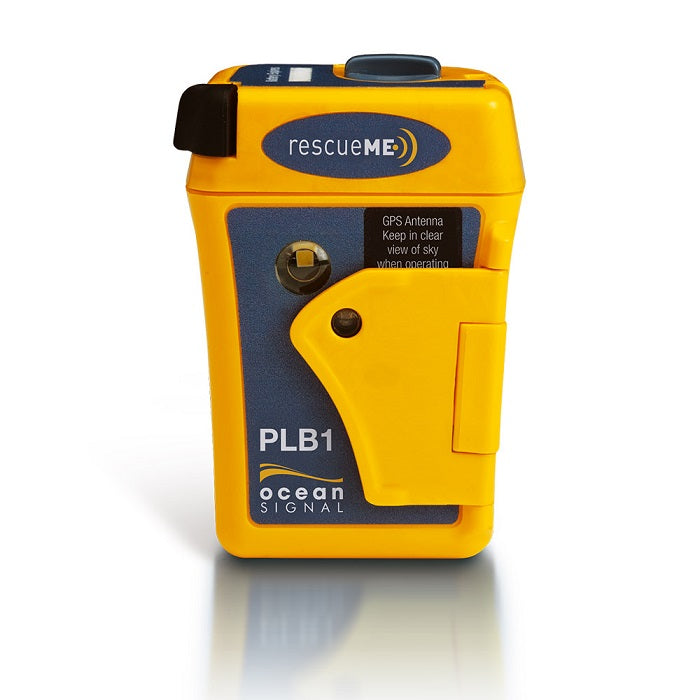

Ocean Signal rescueME PLB1

Ocean Signal rescueME PLB1

Model: 730S-01261

• 30% smaller (typ) by volume
• Easily fits in lifejacket
• Retractable Antenna
• 7 Year Battery Life
• 7 year warranty
• 24+ hour operational life
• High brightness strobe light >1candela
• 66 channel GPS receiver
• Unique mounting clip
• Operates on the global Cospas Sarsat rescue system
• Free to use, no subscription charges
• Supplied with free flotation pouch
• Waterproof to 15m

Wherever you are, at sea, on land, the rescueME PLB1 provides the reassurance that global emergency services can be alerted by the press of a button.

The rescueMe PLB1 can be operated with a single hand in even the most challenging situations. A simple spring loaded flap covers the activation button preventing inadvertent use.

rescueME PLB1 works with the only officially recognised worldwide dedicated search and rescue satellite network (operated by Cospas Sarsat). As this is funded by governments there are NO CHARGES to use this service.

When activated the rescueME PLB1 transmits your position and your ID to a Rescue Coordination Center via satellite link. Rescue services nearest to your are promptly notified of your emergency and regularly advised of your current location to assist prompt rescue.

The rescueME PLB1 is provided with a flotation pouch to fit the PLB into to enable it to float. Please note that the PLB will not float in an operating position in the pouch. Please ensure the PLB is firmly attached to the pouch with the provided lanyard, using suitable self locking knots.

Specifications

406MHz Satellite Transmitter
Frequency
406.040MHz

Tolerance
+/- 1kHz

Output power
5watts (nominal)

Stability
2ppb/100ms

Modulation
Phase +/- 1.1radians (peak)

Encoding
Bi-phase L

Data rate
400 bps

Duration
520ms
121.5MHz Homing Beacon
Frequency
121.5MHz

Stability
+/- 50ppm

Output Power
25-100mW PERP

Modulation
Swept Tone AM

Modulation Depth
85-100%

Sweep Range
400Hz — 1300Hz
Low Duty Cycle Strobe Light
Light Type
High intensity LED

Output Power
~1candela
GPS Receiver
Sensitivity Cold Start
-148dBm

Sensitivity Re-acquisition
-163dBm

Satellites channels tracked
60

GPS Antenna
Microstrip patch
Battery
Type
Lithium Primary

Chemistry
Manganese Dioxide (LiMnO2)

Operational Life
>24hours @ -20°C
