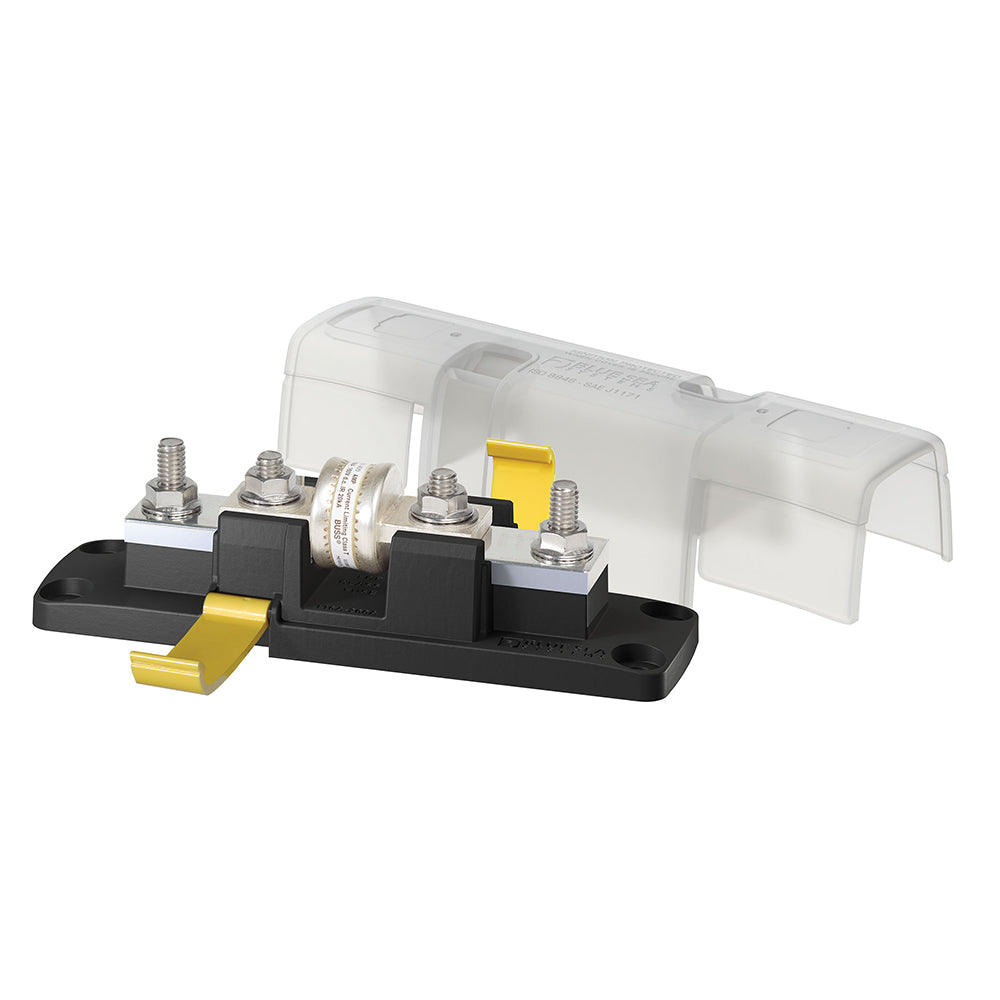

Blue Sea 5007100 Class T Fuse Block w/Insulating Cover - 110 to 200A

Class T Fuse Block with Insulating Cover - 110 to 200A

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse




• Insulating cover satisfies ABYC/USCG insulation requirements




• Cover breakouts allow wire access in any direction




• Stud design ensures secure fuse mounting even with high heat




• Stainless steel studs provide resistance to corrosion and high torque




• One-piece stainless flange nuts ensure safe and secure connections




• UL 94-V0 base resists high heat

• Cable Size: Up to 4/0 AWG




• Ignition Protected: Yes




• Maximum Amperage: 200A




• Maximum Voltage: 160V DC




• Fuse Mounting Block: Tin-Plated Copper




• Terminal Stud Size: 5/16"-18 (M8)
