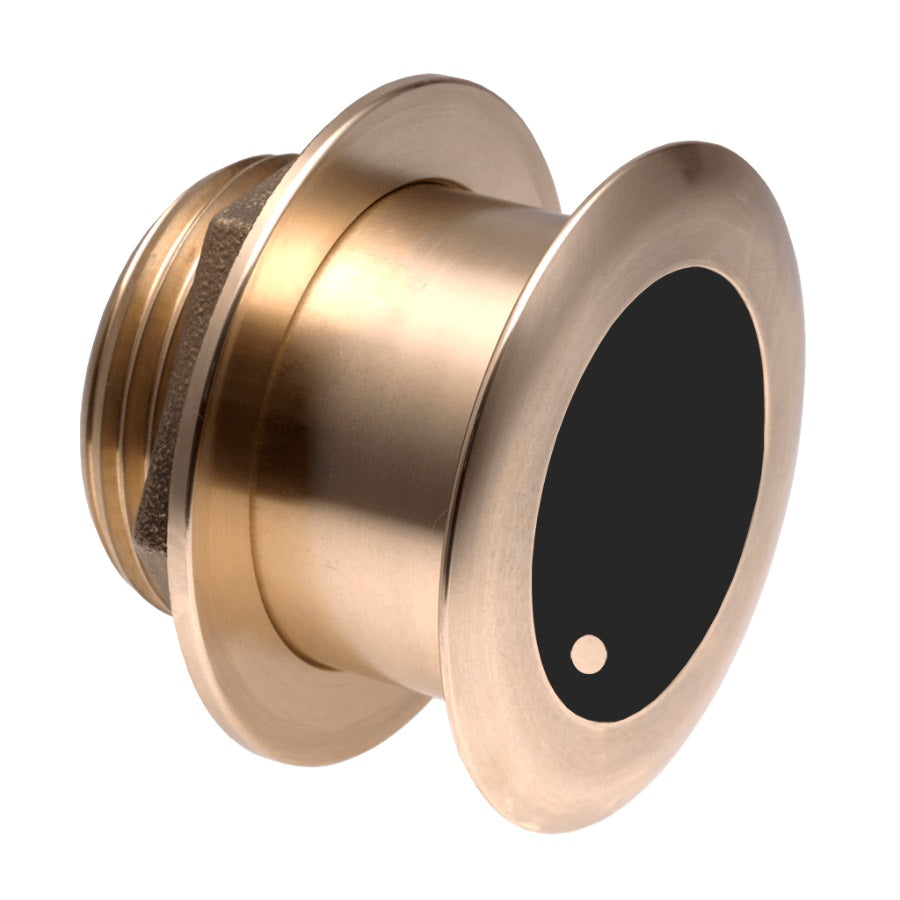

Airmar B175C-20-MW Transducer Medium Wide Beam 20 Deg Tilt

Airmar B175C-20-MW Transducer Medium Wide Beam 20 Deg Tilt

Airmar B175MW Medium Ultra-Wide 20 deg Tilted Element™ Thru-Hull - requires Mix-N-Match Cable

• Fixed 20° tilted version for 16° to 24° hull deadrise


• Depth and fast-response water-temperature sensor


• 1 kW with depth tracking down to 400 m (1,300#39;)


• Medium frequency: 60-100 kHz


• 57° to 73° beamwidth (port/starboard)


• 16° average fore/aft


• 40 kHz of total bandwidth from one transducer


• Medium frequency for superior mid-depth performance and excellent fish-target separation


• Bronze housing for use on stepped, planing or displacement hull


• Low-profile, thru-hull housing yields good resolution at speed when installed properly


• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready B175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The B175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

Power Rating
1 kW

Housing
Bronze

Functions
Depth, Temperature

Hull Material
Fiberglass or wood

Max Vessel LOA
Up to 11 m (36')

Hole Size
95 mm (3-3/4")

Mounting Style
Tilted Element Thru-Hull

Acoustic Window
Urethane

Cable-Length
9 m (30')

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)

Water Temperature
-10° to 40°C (14° to 104°F)

Cable End
Mix-N-Match
