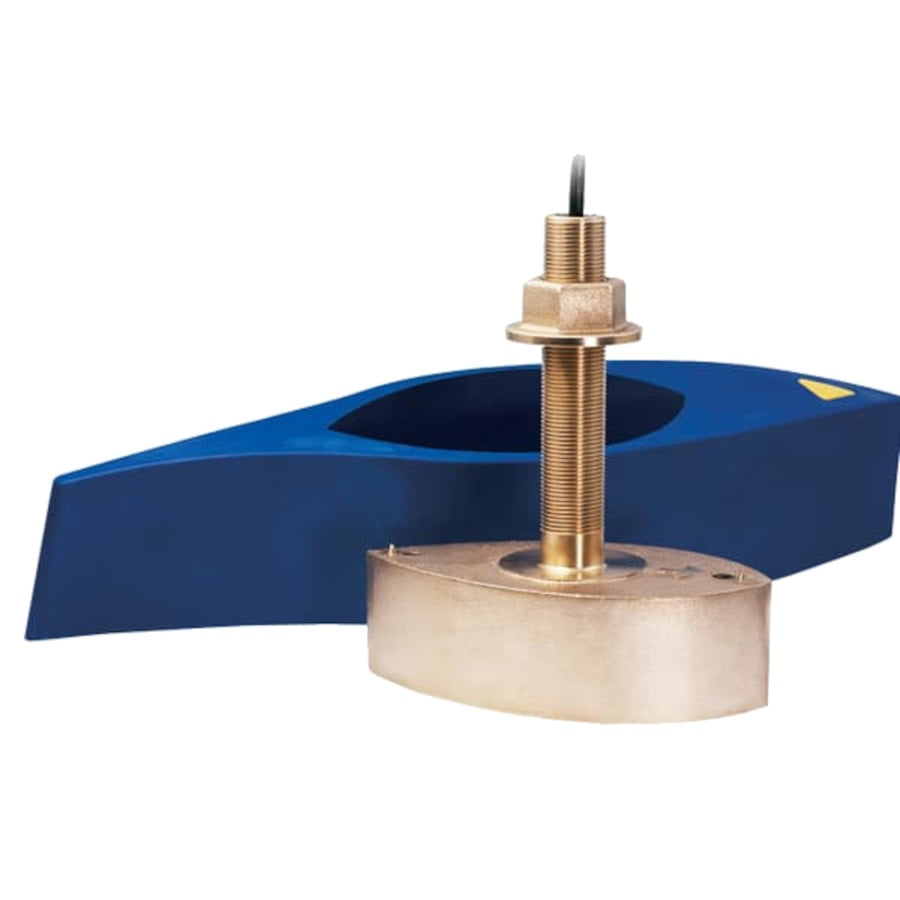

Airmar B265C-LM Bronze TH Low Medium CHIRP Bare Wire Mix-N-Match

Airmar B265C-LM Bronze TH Low Medium CHIRP Bare Wire Mix-N-Match

Airmar B265C-LM Bronze thru Hull Low Medium CHIRP with Bare Wire Mix-N-Match Cable

• Depth and fast-response water-temperature sensing


• 1 kW of power for great deep to mid-depth performance


• Low frequency: 42 to 65 kHz - 25° to 16° beamwidth - Maximum depth of 914 m (3000')


• Medium frequency: 85 to 135 kHz - 16° to 11° beamwidth - Maximum depth of 457 m (1500')


• 73 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths


• Bronze housing with High-performance Fairing for optimal high-speed performance


• Patented Xducer ID® technology


• Hull Type: Fiberglass or wood


• Exclusive Xducer ID® technology

The B265LM, Chirp-ready thru-hull is a perfect, mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW, powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band, operating between 42 and 65 kHz, provides deep-water performance down to 914 m (3000'). It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band from 85 to 135 kHz is excellent for identifying targets suspended close to the bottom, on structure, and within the water column.

The included, High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

Cable-Length
10 m (33')

Single or Dual Frequency
CHIRP-Ready Dual-Band

Frequency Band
Low-Medium

Housing Material
Bronze

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25°-16°

Medium Frequency
85-135 kHz

Medium Frequency Beamwidth
16°-11°

Max Deadrise
Up to 20° with fairing

Max Deadrise Angle
20°

Max Depth
Low frequency- 914 m (3000'), Medium frequency- 457 m (1500')

Mounting Style
Thru-Hull with Fairing

Power Rating
1 kW

Transducer Functions
Depth, Temperature

Usable Shaft Length
121 mm (4.75")

What's in the Box:

• B265C-LM-MM Transducer


• High Speed fairing Block


• High Speed Fairing Block Bolt Kit


• MMC-0 Cable
