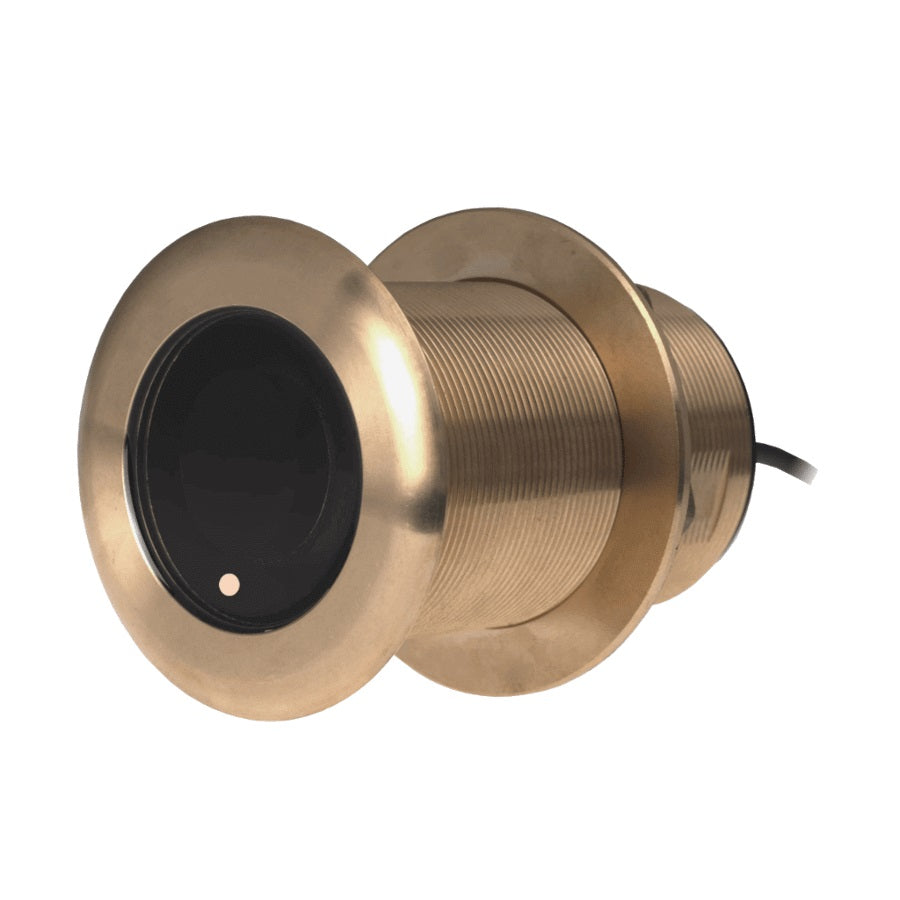

Airmar B75C-0-HW 0d Tilt High Wide CHIRP With Mix-n-Match Plug

Airmar B75C-0-HW 0d Tilt High Wide CHIRP With Mix-n-Match Plug

Airmar B75 High Wide Chirp, 600W, 0° Tilt, M&M Transducer, DT

• Fixed 12° tilted version for 8° to 15° hull deadrise


• Depth and fast-response water-temperature sensor


• 600 W with a maximum depth performance to 106 m (350')


• High frequency: 150 to 250 kHz


• 30° beamwidth


• High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns


• Low-profile, thru-hull housing provides good resolution at speed when installed properly


• Bronze housing for use on stepped, planing or displacement hull


• Exclusive Xducer ID® technology

Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75HW combines the benefits of the high frequency band for amazing target separation on baitfish and schooling gamefish, with a wide 30° beamwidth for maximum coverage under the boat. The B75HW transducer delivers up to 100 kHz of total bandwidth in just one installation and delivers amazing coverage under the boat in depths to 106 m (350’).

Tilted Element™ transducers have the ceramic element fixed at a 20°, 12° or 0° angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.

Acoustic Window
Urethane

Cable-Length
9 m (30')

Connector
Airmar 12-Pin (MMC)

Deadrise Range
0° to 7°

Display Connector
Cable Required

Freq Hi Wide
150-250 kHz

Frequency Band
High Wide

Functions
Depth, Temperature

High-Wide Beamwidth
30°

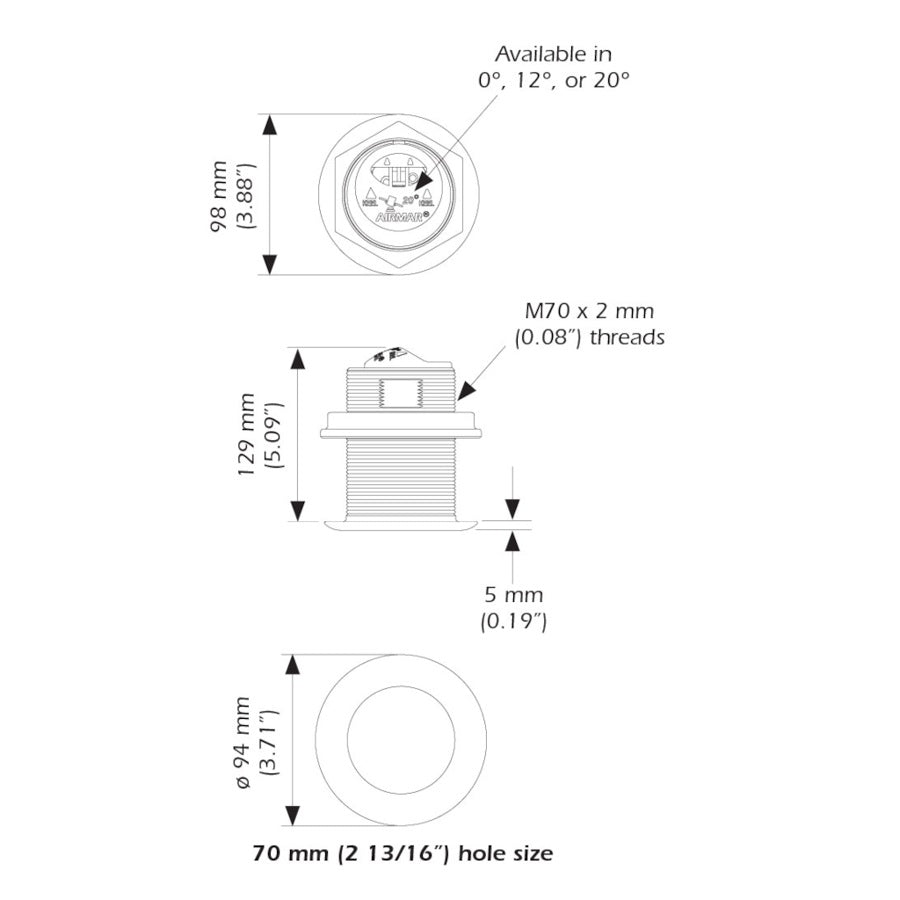

Hole Size
70 mm (2-13/16")
