Airmar B75C-20-M 20d Tilt With Raymarine 11-Pin MM Cable

Airmar B75C-20-M 20d Tilt With Raymarine 11-Pin MM Cable

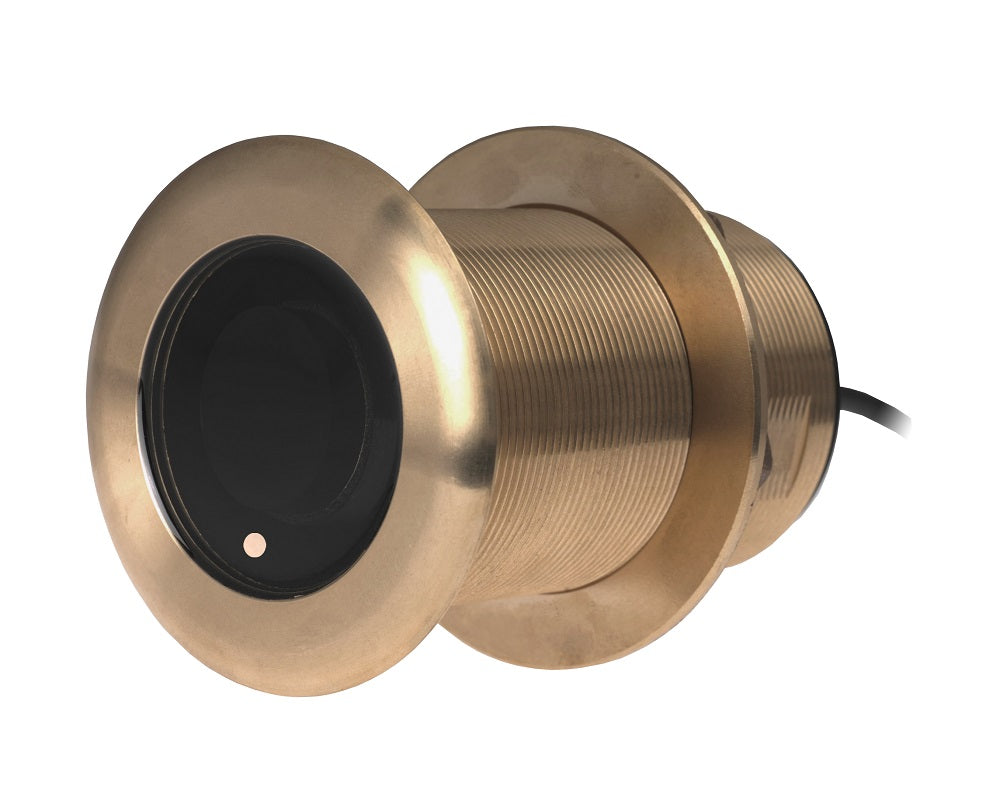

Airmar B75C 20° tlted element Medium CHIRP Bronze Thru Hull with 11-Pin Raymarine Mix-N-Match Cable

• Depth & fast-response water-temperature sensor


• 50 kHz of total bandwidth from one transducer

Rely on Airmar’s new broadband transducers for your ultimate fishing mission. Whether you’re a commercial fisherman, charter captain, or tournament angler, there’s a new game in town! Chirp transducers enable bottom detection down to 3,000m (10,000’) with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures. One transducer delivers up to 80 kHz of total bandwidth in just one installation, saving customers time and money.

Provides the ability to sound deeper than the high frequency, along with better resolution than the low frequency

Wider beam than the high frequency, achieving more coverage under the boat and greater opportunity to find fish

Clear images at higher boat speeds

Requires A80328 when used as single and A102146 when used as a pair

CHIRP Frequency
80 kHz to 130 kHz

Beamwidth
24° to 16°

Element tilt
20°

Deadrise
16° to 24°

Maximum depth
900ft

What's in the Box:

• B75C-20-M-MM


• MMC-11R-HM
