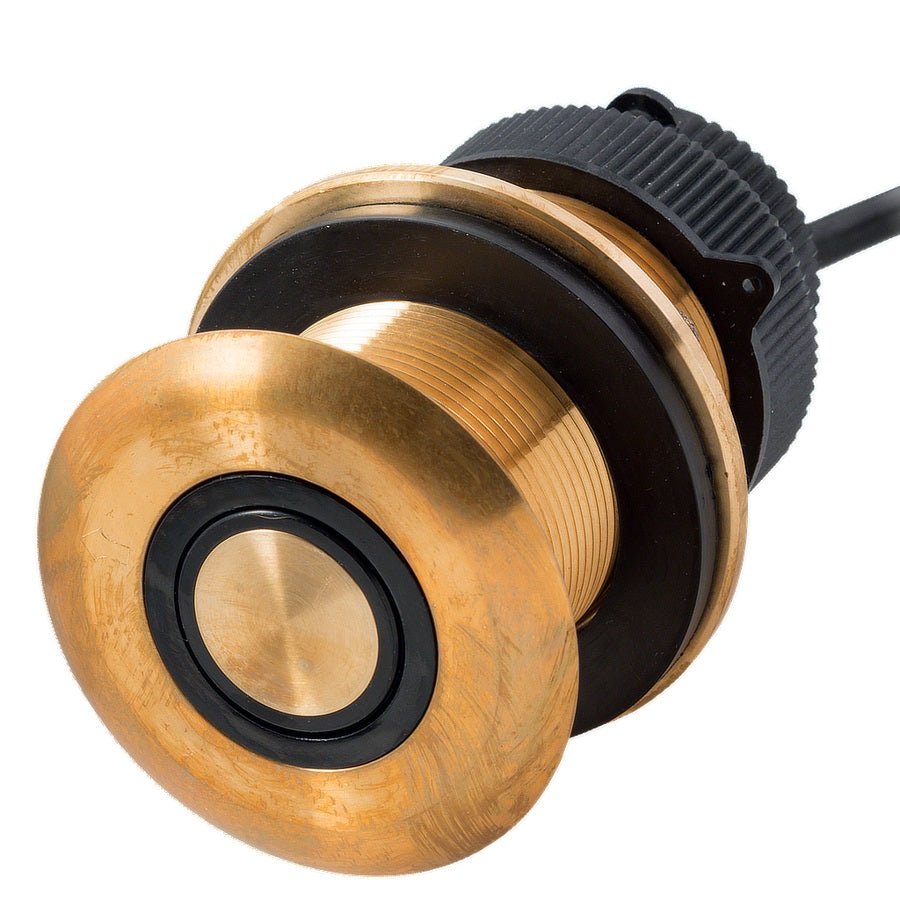

Airmar HT200BV-N2 NMEA200 Thru Hull Temp Bronze

Airmar HT200BV-N2 NMEA200 Thru Hull Temp Bronze

Airmar HT200 Smart Hi-Precision Temperature Sensor, Bronze Housing, NMEA2000

• High-precision water-temperature sensing for fast-response reporting on your display


• Low-profile, low-drag housing extending outside the hull only 5 mm (3/16")


• Retractable insert for easy cleaning even if the boat is in the water


• NMEA 2000 certified

Whether you're blue-water fishing offshore or fishing along a tidal estuary, finding temperature breaks where two bodies of water collide can make the difference in locating fish. The HT200 has a large surface area that offers a super-fast, 0.15 second, time response to changes in water temperature. Simply overlay the nautical chart or sounder screen with the temperature readout and watch for temperature changes and fish strikes. Marking the line between hot and cold temperatures is crucial—and using the HT200 will ensure you don't go home empty handed!

Airmar's Smart™ Sensors have embedded microelectronics—the temperature sensor and signal processor are only millimeters apart. The signal is processed right inside the housing itself. All that is needed to receive temperature data is a single cable into an NMEA 2000® network.

Cable-Length
6 m (20')

Data Rate
2X per second

Display Connector
N2 Micro

Hole Size
51 mm (2")

Material
Bronze

Mounting Style
Low Profile Thru-Hull

Retractable housing
Yes

Temperature Accuracy
±0.3°C (±0.17°F)

Usable Shaft Length
57 mm (2.25")

Voltage
9 to 50 VDC
