Airmar M265C-LH 1kw Low High CHIRP No Connector

Airmar M265C-LH 1kw Low High CHIRP No Connector

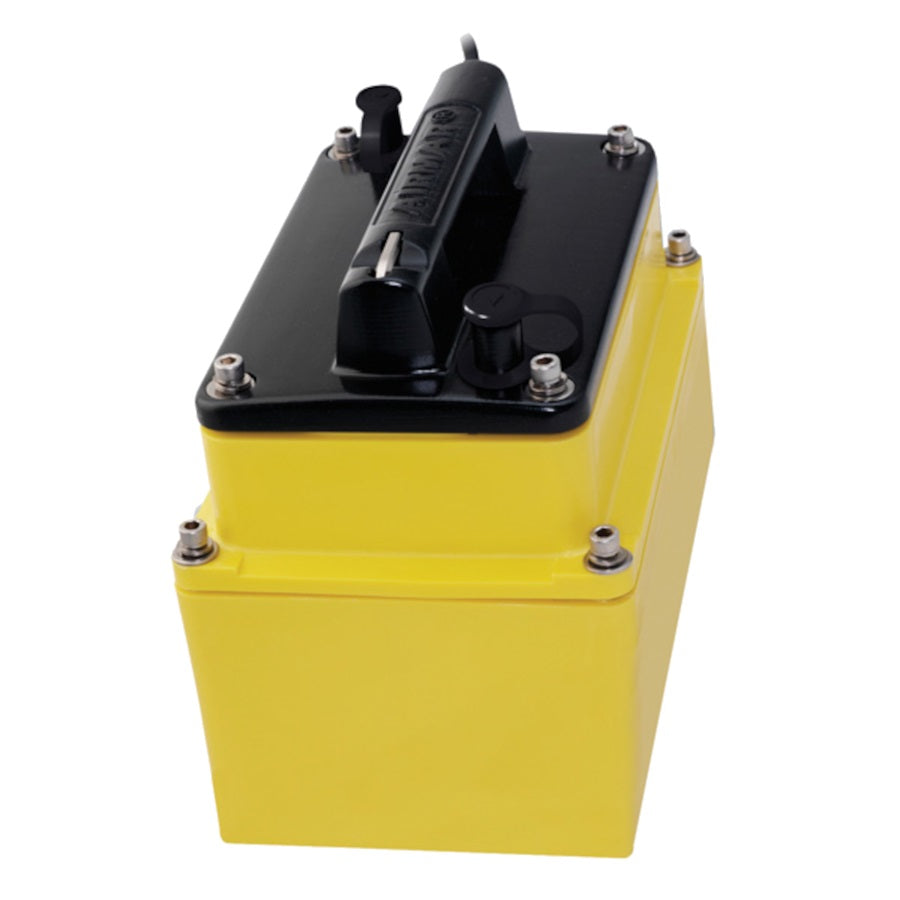

Airmar M265C-LH Low High CHIRP In-Hull Transducer

• Depth only


• 1 kW of power for great deep-water performance


• Low frequency: 42 to 65 kHz, 25° to 16° beamwidth, Maximum depth of 914 m (3000')


• High frequency: 130 to 210 kHz, 10° to 6° beamwidth, Maximum depth of 304 m (1000')


• 103 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth


• Plastic transducer housing and mounting tank


• Patented Xducer ID® technology

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The M265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s M265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, bandwidth—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LH is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.

Cable-Length
10 m (33')

Connector
Bare Wire

Deadrise Range
0° to 22°

Frequency Band
Low-High

Housing Material
Plastic

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25°-16°

Max Deadrise
Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull

Max Depth
Low frequency- 914 m (3000'), High frequency- 304 m (1000')

Mounting Style
In-Hull

Single or Dual Frequency
CHIRP-Ready Dual-Band

High Frequency
130-210 kHz

High Frequency Beamwidth
10°-6°
