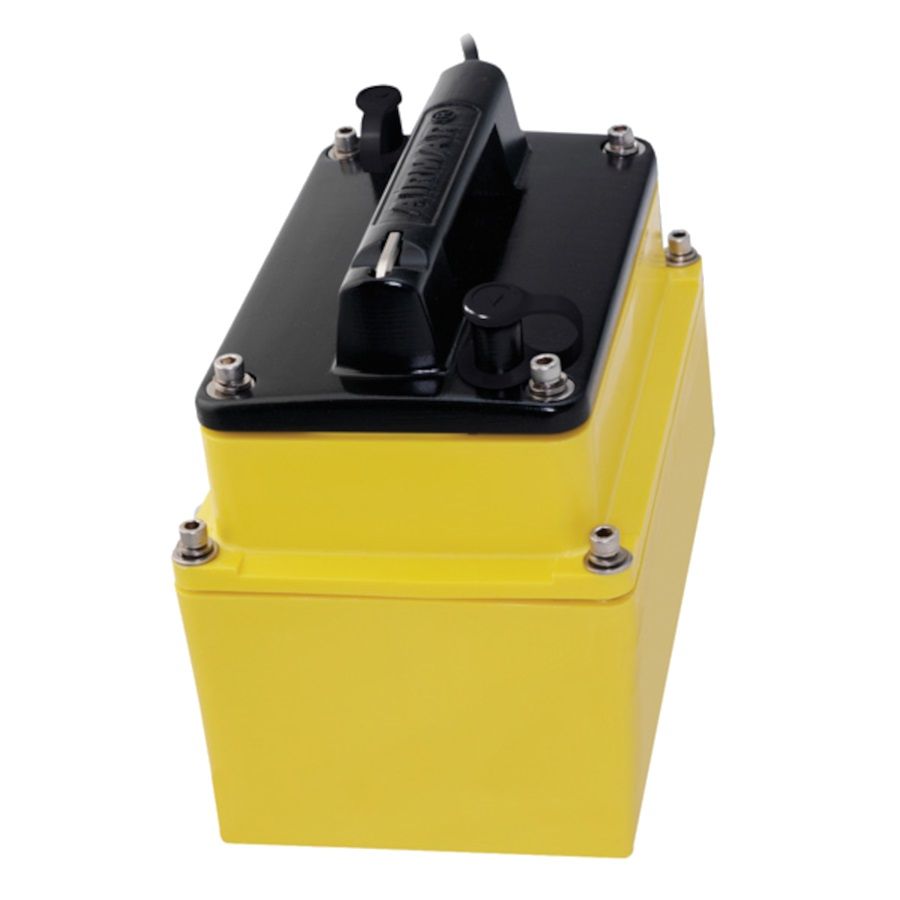

Airmar M265C-LM-11R 1kw Low Medium CHIRP With Raymarine 11-Pin Cable

Airmar M265C-LM-11R 1kw Low Medium CHIRP With Raymarine 11-Pin Cable

Airmar M265C Depth Only Low Medium In-Hull Transducer with Raymarine 11-pin Connector, Low Dual-Band Mix--N-Match Cable

• Depth only


• 1 kW of power for great, deep to mid-depth performance


• Low frequency: 42 kHz to 65 kHz


• Medium frequency: 85 kHz to 135 kHz


• 73 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths


• Plastic transducer housing and mounting tank


• Patented Xducer ID® technology

The M265LM Chirp-ready in hull is a perfect mid to deep-depth transducer. The huge bandwidth includes many of the most popular frequencies for targeting top gamefish. This 1 kW powerhouse delivers clear target details, bottom discrimination, as well as bait and game-fish separation at all depths.

The low-frequency band of 42 to 65 kHz provides deep-water performance down to 914 m (3000').It is a good choice when scouting an area or fishing in deeper depths. The medium-frequency band, operating between 85 and 135 kHz, is excellent for identifying targets suspended close to the bottom on structure and within the water column.

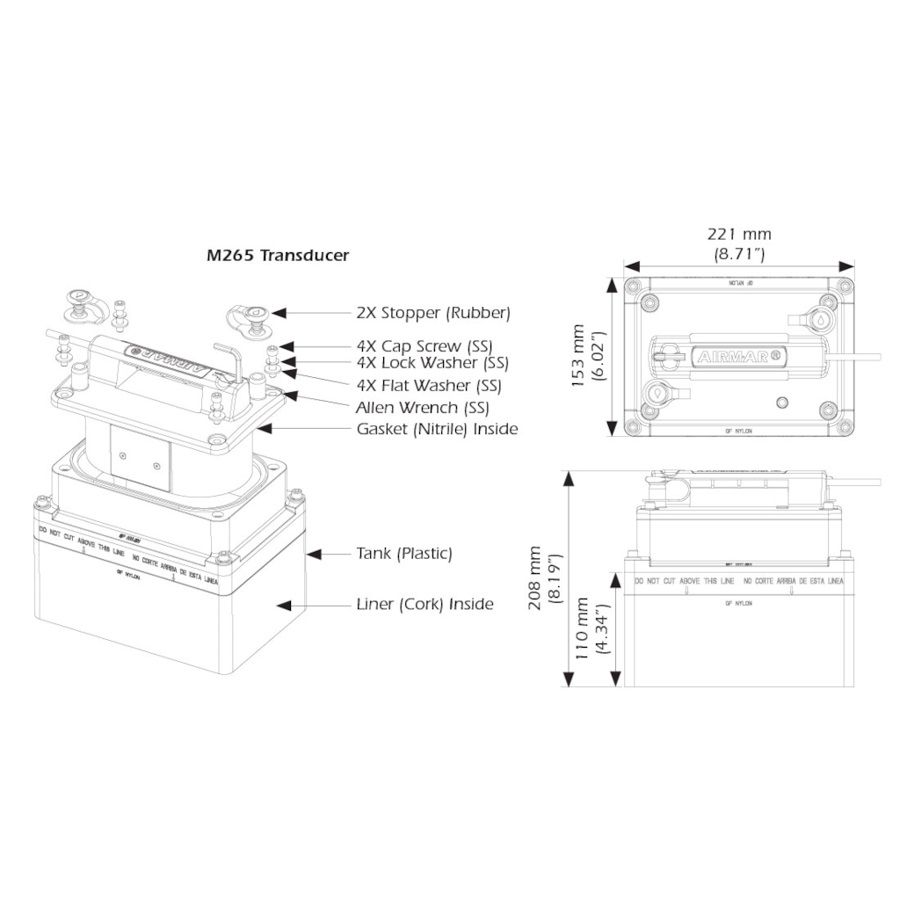

The transducer is installed in the included tank which is cut to the boat’s deadrise angle and affixed inside the hull. When the transducer is placed inside the tank, it is properly oriented for optimal performance. The M265LM is a popular choice for customers not wanting to drill a hole in their hull and for trailered or lifted boats.

Acoustic Window
Urethane

Cable-Length
9 m (30')

Connector
Airmar 12-Pin (MMC)

Deadrise Range
0° to 22°

Display Connector
MMC-11R-LDB Raymarine 11-pin Connector, Low Dual-Band

Frequency Band
Low-Medium

Housing Material
Plastic

Hull Material
Solid fiberglass only

Low Frequency
42-65 kHz

Low Frequency Beamwidth
25°-16°

Max Deadrise
Accommodates a deadrise angle up to 30° with the longest side of the tank installed parallel to the centerline (keel) of the hull

Max Depth
Low frequency- 914 m (3000'), Medium frequency- 457 m (1500')

Max Vessel LOA
11 m (36') and above

Medium Frequency
85-135 kHz

Medium Frequency Beamwidth
16°-11°

Mounting Style
In-Hull

Power Rating
1 kW

Single or Dual Frequency
CHIRP-Ready Dual-Band

Transducer Functions
Depth

Dimensions
8.19in H x 8.71in L x 6.02in W

What's in the Box:

• M265C-LM-MM


• MMC-11R-LDB Raymarine 11-pin Connector, Low Dual-Band
