Airmar SS175C-0-MW 0d Tilt Medium CHIRP Ultra Wide With Mix-N-Match Plug

Airmar SS175C-0-MW 0d Tilt Medium CHIRP Ultra Wide With Mix-N-Match Plug

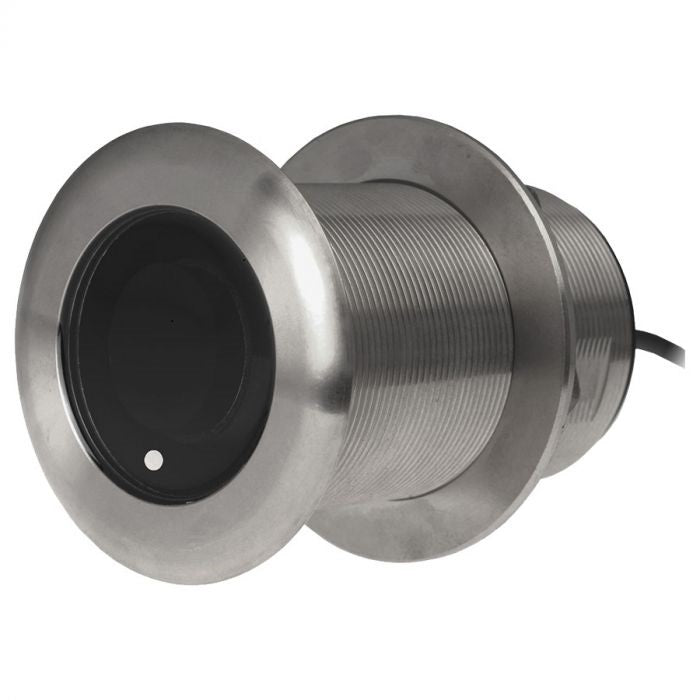

Airmar SS175MW Medium Ultra-Wide 0 deg Tilted Element™ Thru-Hull - With Mix-n-Match Connector

• Fixed 0° tilted version for 0° to 7° hull deadrise


• Depth and fast-response water-temperature sensor


• 1 kW with depth tracking down to 400 m (1,300#39;)


• Medium frequency: 60-100 kHz


• 57° to 73° beamwidth (port/starboard)


• 16° average fore/aft


• 40 kHz of total bandwidth from one transducer


• Medium frequency for superior mid-depth performance and excellent fish-target separation


• Low-profile, thru-hull housing yields good resolution at speed when installed properly


• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready SS175 Medium Ultra-Wide (MW) Tilted Element™ Thru-hull transducer. The SS175MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column.

Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz. When paired with our other popular models such as the B275LHW, provides the angler with a broad set of frequencies (Low, Medium-Wide, High-Wide) to interrogate targets from deep to shallow.

The SS175MW Tilted Element Thru-hull is a 1 kW transducer housed in one of AIRMAR’s most popular Tilted Element housings which includes a ceramic element fixed at a 20°, 12° or 0° angle. Because the transducer is installed almost flush to the hull, the tilted element corrects for the hull deadrise and orients the ceramic element vertically to ensure maximum echo returns to the transducer.

Power Rating
1 kW

Max Deadrise Angle
24°

Housing
Stainless Steel

Functions
Depth, Temperature

Hull Material
All hull materials

Max Vessel LOA
Up to 11 m (36')

Hole Size
95 mm (3-3/4")

Mounting Style
Tilted Element Thru-Hull

Acoustic Window
Urethane

Cable-Length
9 m (30')

Max Depth
400 m (1300')

Medium Frequency
60-100 kHz

Medium Frequency Beamwidth
57° to 73° (Port/Starboard) X 16° average (Fore/Aft)

Single or Dual Frequency
CHIRP-Ready Single-Band

Water Temperature
-10° to 40°C (14° to 104°F)

Weight
2.7 kg (6 lb.)

What's in the Box:

• SS175C-0-MW-MM Medium CHIRP 0° Tilted Element
