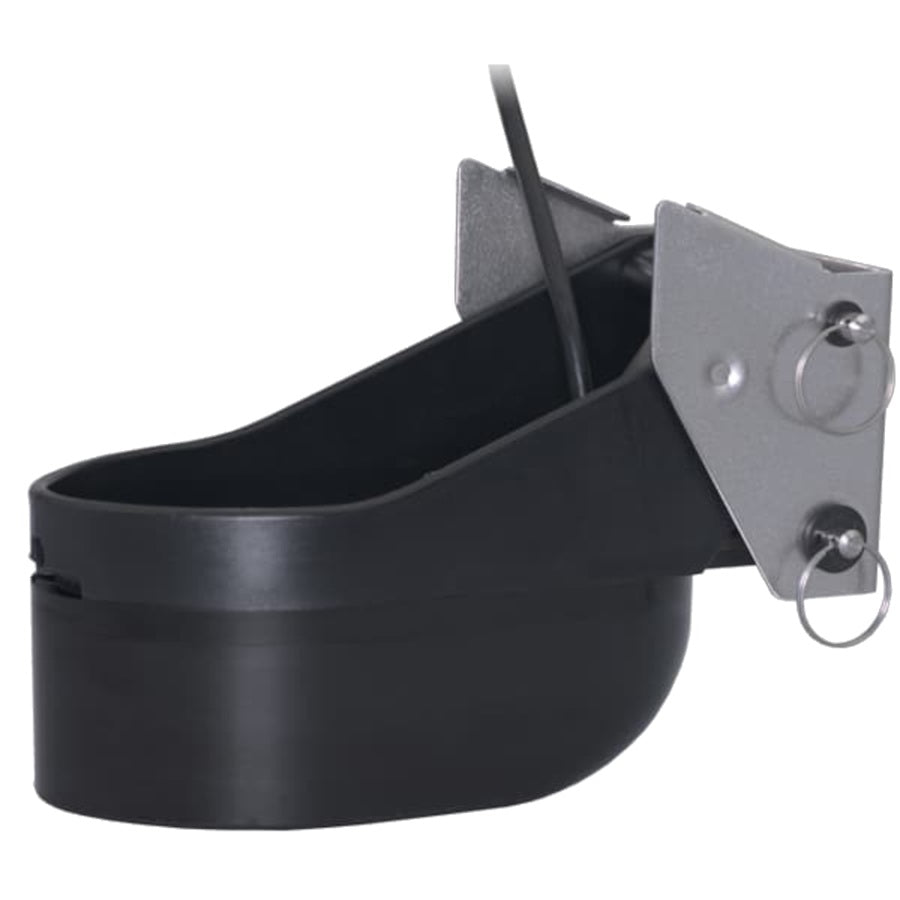

AIRMAR TM265C-LM 1kW Low Medium CHIRP With Mix-N-Match Plug

AIRMAR TM265C-LM 1kW Low Medium CHIRP With Mix-N-Match Plug

Airmar TM265C Low/Medium CHIRP Transom Mount Transducer with Mix-N-Match Plug

• Depth and fast-response water-temperature sensing


• 1 kW of power for great deep to mid-depth performance


• Low frequency: 42 to 65 kHz, 25° to 16° port-starboard beamwidt, Maximum depth of 914 m (3000')


• Medium frequency: 85 to 135 kHz, 16° to 11° beamwidth, Maximum depth of 457 m (1500')


• 73 kHz of total bandwidth from one transducer


• Covers popular fishing frequencies of 50, 88, and 107 kHz plus everything else in the bandwidths


• Transom mount stainless steel bracket for installation on boats of all propulsion types


• SEALCAST™, seamless, urethane housing for long life in the water


• Patented Xducer ID® technology

Rely on Airmar's new broadband transducers for the ultimate fishing mission! Whether you're a commercial fisherman, charter captain, or tournament angler, there's a new game in town. Traditional marine fish finders operate at discreet frequencies such as 50 kHz and 200 kHz, use relatively short-duration pulses, and use narrowband sonar transducers. In contrast, Chirp uses a precise sweep pattern of many frequencies within a long-duration transmit pulse from a broadband transducer, so the equivalent sound energy transmitted into the water is 10 to 1,000 times greater than a conventional marine fish finder.

Specifically designed for small boats (25'-40'), the TM265LH Chirps across the following bandwidths:

LH Model - Low Frequency 42-65 kHz/High Frequency 130-210 kHz

Low frequency
42-65 kHz (25° to 16° beamwidth)

Medium Frequency
85-135 kHz (16°-11°)

Cable-Length
10 m (33')

Housing
Urethane/Stainless Bracket

Mounting Style
Transom

Power Rating
1 kW

Single or Dual Frequency
CHIRP-Ready Dual-Band

Transducer Functions
Depth, Temperature

Transom Angle
3° to 21°

What's in the Box:

• TM265C-LM-MM


• Transom Mount Hardware
