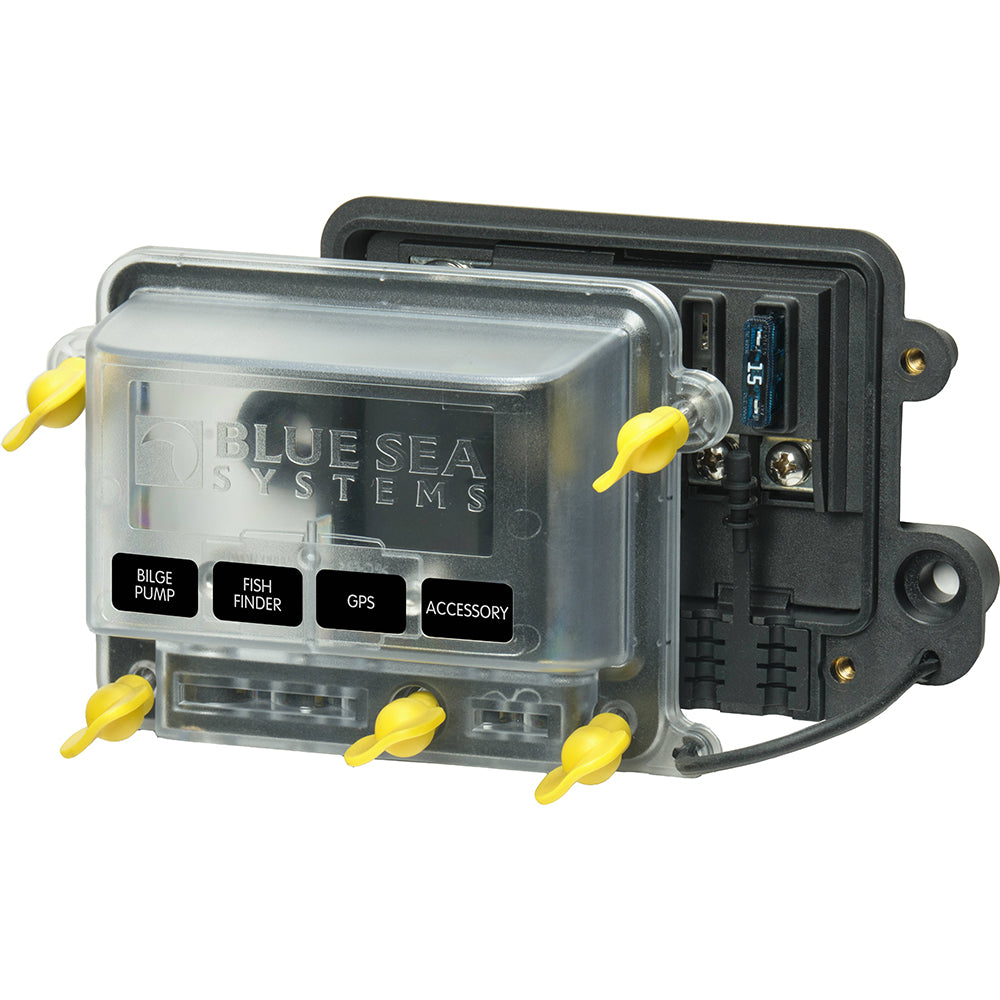

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block w/Cover

5056100 - Water Resistant ST-Blade Fuse Block with Cover

This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint.  Now with wing screws for toolless access.

Features:

• Water-resistant design with a standard ring or spade-type terminals


• Allows for simple wiring with standard tools


• Accepts a wide range of wire sizes


• Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required


• Accepts ATO and ATC fast acting blade fuses


• Accepts ATO/ATC-Style Low Profile Circuit Breakers


• Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire


• 5056100 meets ABYC/USCG insulation requirements


• Tin-plated copper busses and fuse clips


• Includes four write-on circuit labels


• Spare fuse and fastener storage in cover


• Wing screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

• Cover - yes


  • Maximum Voltage - 32V DC


  • Bus Material - Tin-plated Copper


  • Mounting Holes - Accepts 1/4" (6mm) screws


  • Terminal Screws - 4 x # 8-32 with captive star lock washer


  • Wire Size - Input - (1) 8 AWG to 4 AWG


  • Wire Size - Load - (4) 16 AWG to 10 AWG





In the Box:

• 5056100 Busbar


• Instruction Manual

*Sold as an Individual
