Digital 1673PW Wideband Cellular 4G/5G/LTE/WiFi Antenna 9dBi L-Bracket

Digital 1673PW Wideband Cellular 4G/5G/LTE/WiFi Antenna 9dBi L-Bracket

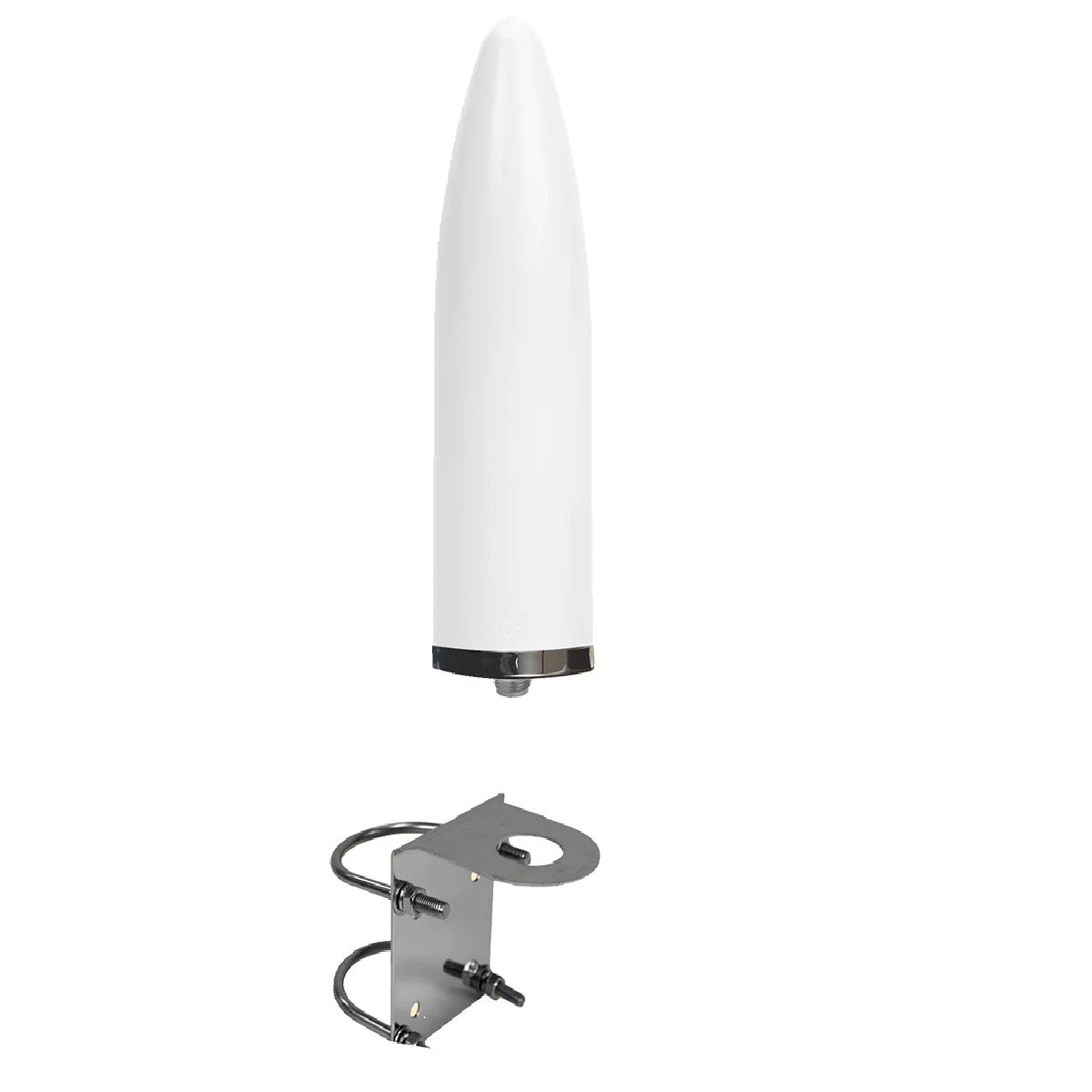

Digital Antenna 1673-PW Omni-Directional 600-3000MHZ 4G/5G/LTE/WiFi Bullet Antenna with L-Bracket

• Maximum power for 4G, 5G, WiFi signals


• 9dBi omni-directional gain


• Rugged UV stable polyurethane finish


• Foam filled to withstand extreme vibrations


• 316 stainless steel base


• Includes L-Bracket mount


• Weatherproof N female connector


• 5 year warranty

Digital Antenna's NEW omni-directional, bullet shaped antenna with stainless steel base provides excellent performance from 695-3000 MHz and is ideal for mobile or fixed locations.

High gain 9dBi bullet antenna designed and manufactured in USA by Digital Antenna, greatly improves signal strength providing maximum signal range. The new design includes a rugged stainless steel base.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways.

Radiation Pattern
Omni-Directional

Bandwidth
VSWR (in 3G, 4G, 5G bands): <1.5: 1 = 695-3000 MHZ, VSWR: <1.8: 1 = 695-3000 MHZ

Gain
9dBi

Cable
Not included

Impedance
50 ohms

Max Input Power
50 watts

Exterior Finish
White polyurethane high gloss UV stable

Dimensions
8.875" L x 2.375" OD (225 x 60 mm

Weight
15 oz

RF Connector
N type female

Installation
Raised Stainless steel deck mount

Elements
Copper - Hand soldered

Polarization
Vertical

Wind Rating
>160KPH

Operating Temp
30 F to +175 F

What's in the Box:

• 1673-PW Antenna


• L-Bracket mount
