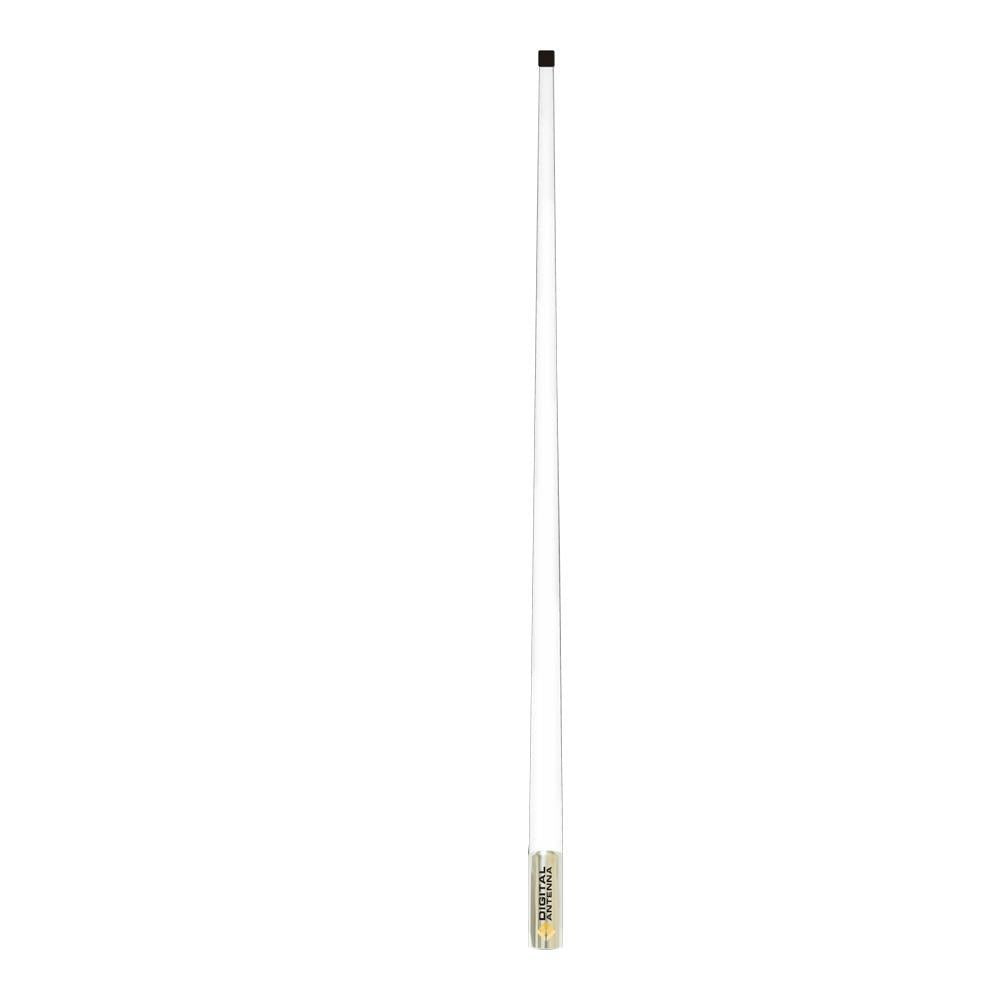

Digital 529-VW-S 8' White VHF Antenna White

Digital 529-VW-S 8' White VHF Antenna White

Digital Antenna 529-VB-S 8' VHF Antenna White

• Powerful brass radiators


• Soldered connections


• Power directing ferrite choke bead


• High gloss urethane finish


• 316 stainless steel ferrule


• 6dB gain

Digital Antenna's ultimate, award-winning 8' VHF antennas combine 6 dB gain, ruggedness and a pristine finish to give you the most superior antenna available. Even in the harshest conditions, these antennas will maintain their beautiful glossy finish for years. Built to withstand high speeds, these antennas are ideal for radar arches and T-tops on speedboats, yachts and commercial vessels.

Customers and installers love the 500 GOLD Series easy installation connector system. The gold factory-attached mini-UHF female connector with PL-259 (UHF) adapter makes connecting to the radio easy, eliminating the need to solder connectors.

All of our antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.

Length
94.75"

Mount
Standard 1"—14 threaded base

Connector
Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter

Cable
Includes 20' of our low-loss, tinned braid, foil shielded, UV stable RG-8X marine cable

Gain
6dBi

VSWR
<2.0:1 = 152.8-160.8 MHz (8 MHz)

Impedance
50 ohms

Maximum input power
100 watts

Exterior finish
White, UV stable poly-urethane coating

Ferrule
316 Stainless Steel

Wind Rating
105 mph

RF Connector
Mini-UHF female (factory attached) and PL-259 adapter

What's in the Box:

• Antenna - White with 20' cable


• PL-259 Adapter
