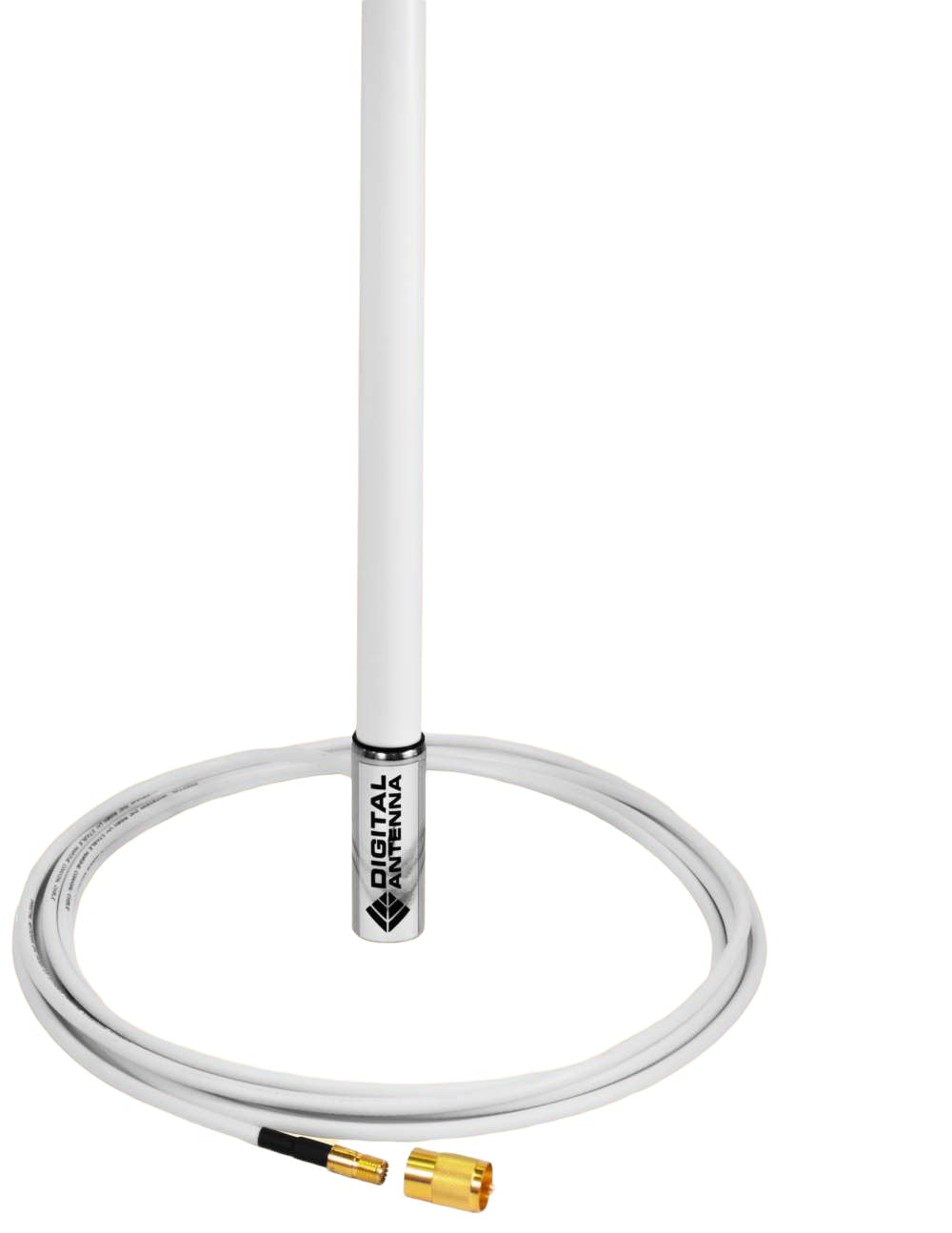

Digital 594-MW-S 4' White AIS Antenna 4.5dB

Digital 594-MW-S 4' White AIS Antenna 4.5dB

Digital Antenna 594-MW 4' AIS Antenna

• Designed for Digital AIS/VHF signals


• 4.5dBi omni-directional gain


• Rugged fiberglass rod with UV stable finish


• Secure soldered connections


• 316 stainless steel base


• 1"x14 female threaded base


• 15’ premium low-loss RG-8X cable


• Factory installed mini-UHF connector


• 5 year warranty

The 594-MW is one antenna designed for the best performance on VHF and AIS signals. To ensure the greatest AIS and VHF range, Digital Antenna’s new 4.5dB gain AIS/VHF antenna features a less than 1:5:1 SWR on both the VHF (156MHz) and AIS (162MHz) frequencies.

Digital VHF radio-based transponder systems need antennas designed for digital signals. Digital Antenna is the only manufacturer to design all antennas to maintain and maximize digital signals for the best transmit and receive range.

Ideal for use on any size commercial or recreational vessel. Perfect for use with combined VHF/AIS radios.

Factory installed mini-UHF connector (less than 3/8" OD) and included PL259 adapter makes a quick and secure connection to the radio. (no soldering needed)

Radiation Pattern
Omni-Directional

Gain
4.5dBi

Bandwidth
VSWR: < 1.5:1 = 1 56-162.5 MHz (6.5MHz)

Cable
15’ Digital Antenna exclusive low loss RG-8X

Impedance
50 ohms

Max Input Power
50 watts

Exterior Finish
White polyurethane high gloss UV stable

Dimensions
4’ length x 1" OD taper

Weight
1.7 lbs

RF Connector
Mini-UHF female with included PL259 adapter

Installation
1"x14tpi female threaded base

Elements
Brass - Hand soldered

Polarization
Vertical

Wind Rating
>160KPH

Operating Temp
30 F to +175 F

Warranty
5 Years

Compliance
Automatic Identification System (AIS)
