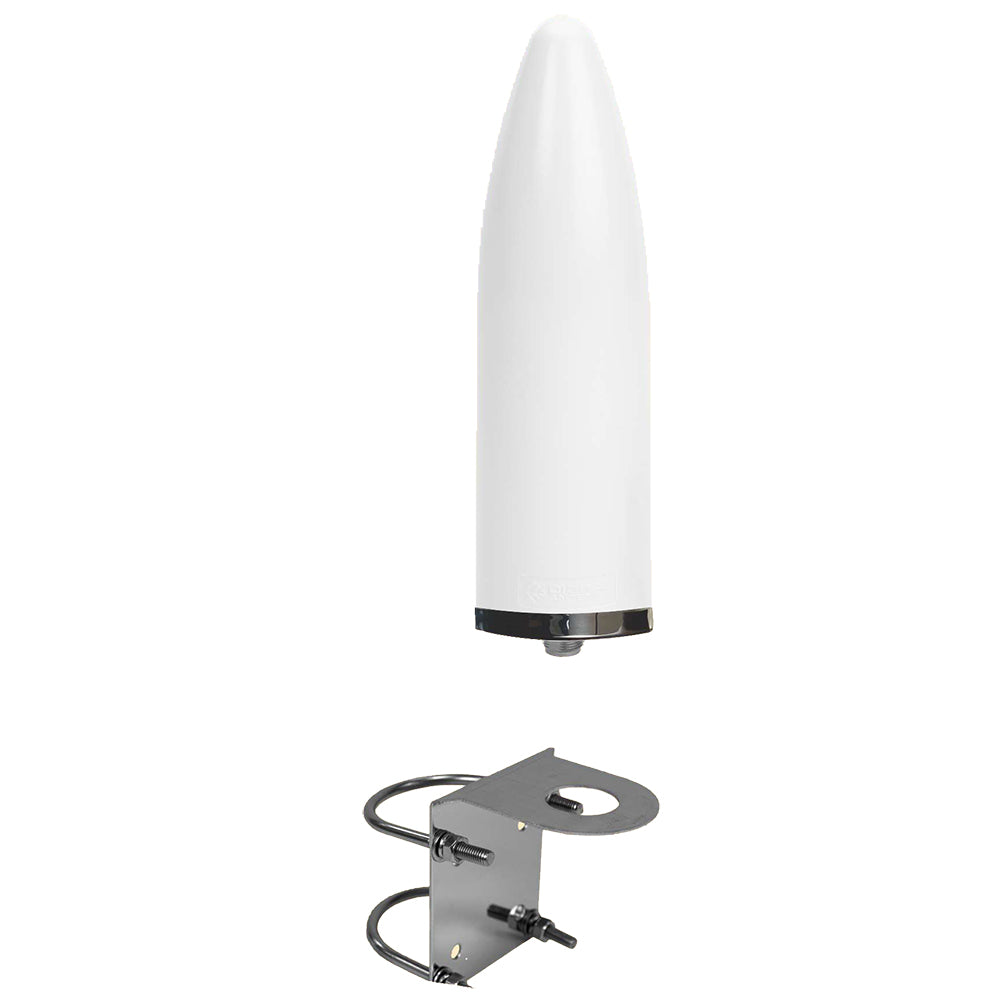

Digital Antenna Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni w/Bracket

Wideband Cellular Antenna 4G/5G/LTE/WiFi 9dBi Omni with Bracket

Digital Antenna's omni-directional antenna with stainless steel base provides excellent performance from 600-3000 MHz and is ideal for mobile or fixed locations.

9dBi antenna designed and low profile manufactured in the USA by Digital Antenna, greatly improves signal strength providing a maximum signal range.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways. Available in several mounting options for use on boats, buildings, utilities, M2M, and more marine environments.

Available in 4 stainless steel mounting options: L-Bracket, 1" x 14 Threads, Deck Mount, and Raised Deck Mount

REQUIRED (NOT INCLUDED) 50ohm coaxial cable to connect the antenna to a cellular device, cellular booster, cellular modem, or WiFi router.

Applications:

• Commercial


• Recreational


• Government


• Marine


• Land

Features:

• Maximum power for 4G, 5G, WiFi signals


• 9dBi omni-directional gain


• Rugged UV stable polyurethane finish


• Foam filled to withstand extreme vibrations


• 316 stainless steel base


• Includes L bracket & U-Bolts


• Weatherproof N female connector


• 5-year warranty

Specifications:

• Radiation Pattern Omni-Directional


• Gain 9dBi


• Bandwidth VSWR (3G, 4G, 5G, WiFi) <1.5: 1 = 614-3000 MHZ


• Cable Not Included


• Impedance 50 ohms


• Max Input Power 50 watts


• Exterior Finish White polyurethane high gloss UV stable


• Dimensions 8.875" L x 2.375" OD (225 x 60 mm


• Weight 15 oz


• RF Connector N type female


• Installation Stainless Steel L bracket for pole/wall


• Elements Copper - Hand soldered


• Polarization Vertical


• Wind Rating >160KPH


• Operating Temp 30º F to +175º F


• Warranty 5 Years


• Compliance RoHS compliant
