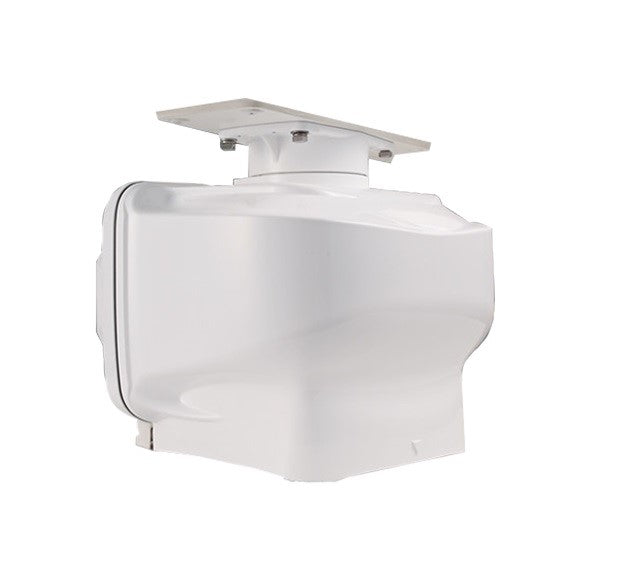

Furuno DRS12AX 12Kw X-Band Radar Pedestal

• 12kW Power Output


• Enhanced target detection, both short and long range


• Minimum detection range of just 20 m


• Fast Target Tracking™


• Bird Mode


• New pedestal unit 20% lighter than previous unit, updated with new, low noise motor


• No PSU required, decreasing total costs


• Easy installation without the need to open pedestal unit


• The DRS12AX is a 24V system; a converter will be required for use with 12V power systems


• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)

Pushing the boundaries of what is possible with conventional Radar technology, DRS12AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS12AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS12AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Input Voltage
24vDC

Antenna Options
3.5, 4 and 6 foot sold separately

Horizontal Beam
1.9° with 4' Antenna
1.4° with 6'

Verticle Beam
22°

Maximum range
96nm

Dual RangeScanning
Yes

What's in the Box:

• Scanner Unit


• Fuse ATV10A60V


• Corrosion-proof pad x 4


• Hex Nut M12 x 8


• Spring Washer M12 x 4


• Flat Washer M12 x 4


• Hex Stud M12x70 x 4


• Installation Manual


• Mounting Template


• Environmental Data Sheet
