Furuno DRS6ANXT 25w Doppler Radar Pedestal Cable Sold Separately Effective 06/20/22

Furuno DRS6ANXT 25w Doppler Radar Pedestal Cable Sold Separately Effective 06/20/22

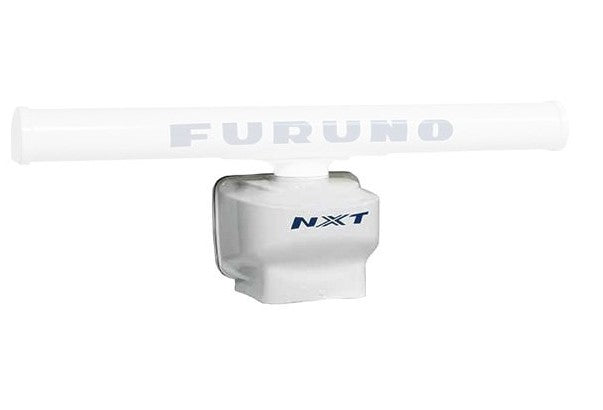

Furuno DRS6ANXT Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking

• Solid-State pulse compression Doppler Radar


• Revolutionary Target Analyzer™ function instantly identifies hazardous targets


• Fast Target Tracking™ and Auto Target Acquire function, up to 100 target


• RezBoost™ beam sharpening to increase the resolution


• Bird Mode to find the best fishing grounds by tracking birds

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

NXT is the first radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a 2 degree beam width can be achieved.

*Cable Sold Separately Effective 06/20/2022*

Antenna Size ( Sold Seperately)
3.5, 4 or 6 foot

Band
X

Power usage
12-24vDC

Range
72nm

Antenna type
Open array

Beam width
3.5' antenna 2.3 degrees
4' antenna 1.9 degrees
6' antenna 1.4 degrees

Power output
25 watt

What's in the Box:

• RSB137-119 Pedestal
