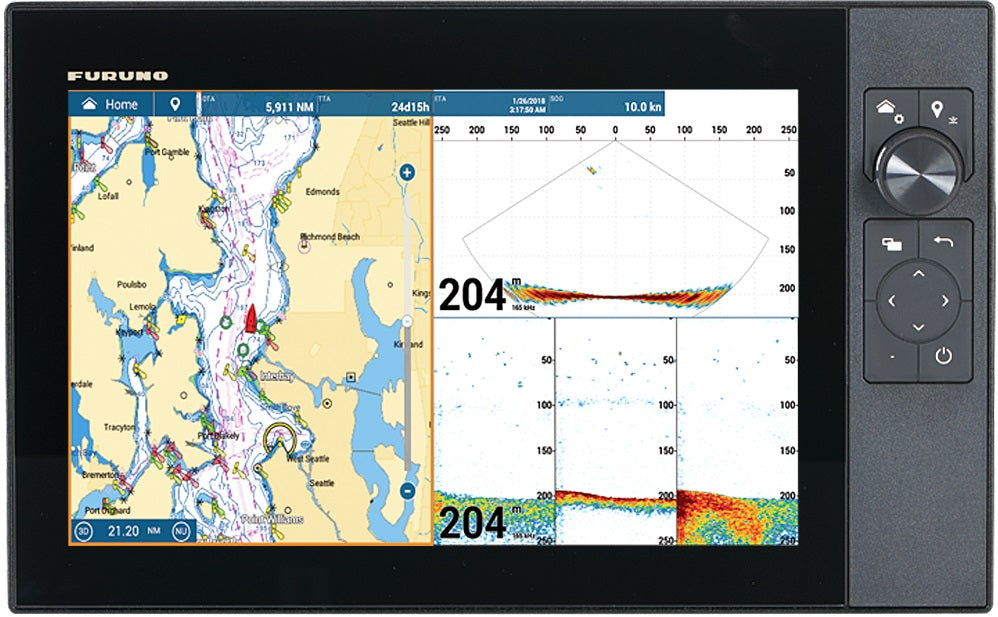

Furuno TZT12F 12" TZtouch3 Chart Plotter/Fish Finder

Model: TZT12F

• Go on a power trip with the most powerful MFD series available


• EASY to use; because finding your happy place shouldn't be difficult!


• The return of Hybrid Control


• Protect your livelihood with new PIN CODE security


• Never lose waypoints, routes or settings again with TZ Cloud


• We gave you something to CHIRP about!

Specifications

Display

Type
Color TFT multi touch In-Plane Switching (IPS) LCD

Screen Size
12.1" Wide

Screen Resolution
WXGA 1280 x 800

Screen Brightnes
900 cd/m2 (typical)

Display Colors
16,770,000 colors (Chart Plotter), 64 colors (Radar/Fish Finder)

Language
Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish GPS/WAAS

GPS/WAAS

Receiver Type
GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS

Receiving Frequency
L1 (1575.42 MHz)

Time to First Fix
100 s (cold start)

Accuracy
10 m (GPS), 7 m (MSAS), 3 m (WAAS)

Position Update Interval
0.1 s (10Hz)

CHART PLOTTER

Cartography
MapMedia mm3d chart (C-MAP/Navionics/NOAA)

Memory Capacity
30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)

Alarms
Anchor Watch, XTE, Depth*, Speed, Sea Surface Temperature*, Trip Distance, Fuel Gauge*, Wind Alarm*, Boundary Alarm (*external data required)

Radar

Display Modes
Head-up*, North-up *Heading input required.

Echo Trail
Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous

Target Tracking
30 ARPA Targets

Radar Alarms
Guard Zone, CPA/TCPA, Trigger, Video, Azimuth, Heading Line

FISH FINDER

Transmit Frequency
CW: 50/200kHz CHIRP: 40kHz to 225kHz

Transducer
300/600 W or 1 kW* *Matching box MB1100 required for some FURUNO transducers

Display Range
2 to 1,200 m, shift: 0 to 1,200 m

Extension Mode
ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), RezBoostTM, Bottom Discrimination, TruEcho CHIRPTM

Picture Advance
8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop

Fish Finder Alarms (option)
School of fish, School of fish for bottom lock

INTERFACE

CAN bus/NMEA2000
1 Port

NMEA0183
1 Serial Output Port

LAN
2 Ports (100 BASE-TX)

USB
1 Port (USB2.0) for touch monitor and control unit:

Video I/O
Input: 2 Ports (NTSC/PAL)
Output: 1 Port (HDMI 720p)

AUX I/O
2 Ports (Event Switch and External Power Switch) and 1 Port Buzzer Output

SD Card Slot
1 Micro SD Card Slot (Micro SDXC, rear), 2 Slots Card Unit: Model SDU-001 (option)

Wireless LAN
IEEE802.11b/g/n, Transmit frequency: 2.412 to 2,462 GHz, 11dBm max

Transducer
1 Port, 1 Port — DI-FFAMP

ENVIRONMENT

ENVIRONMENT
-15°C to +55°C

Relative Humidity
93% or less at +40° C

Waterproofing
IP56

POWER

Voltage
12-24 VDC

Current draw
2.3 - 1.2 A

What's in the Box:

• Multi Function Display 12.1"


• Grey Silicone Cover


• Power Cable Assy 2m


• 12 to 10pin Transducer adapter cable


• LCD Cleaning Cloth


• Flush Mount Fixture x 2


• Flush Mount Sponge 12H x 2


• Flush Mount Sponge 12V x 2


• Slotted Head Hex Bolt M6x12 x 2


• EMI Core GRFC-10


• Connector Caps


• Flush Mounting Template


• Operator'sGuide


• Installation Manual
