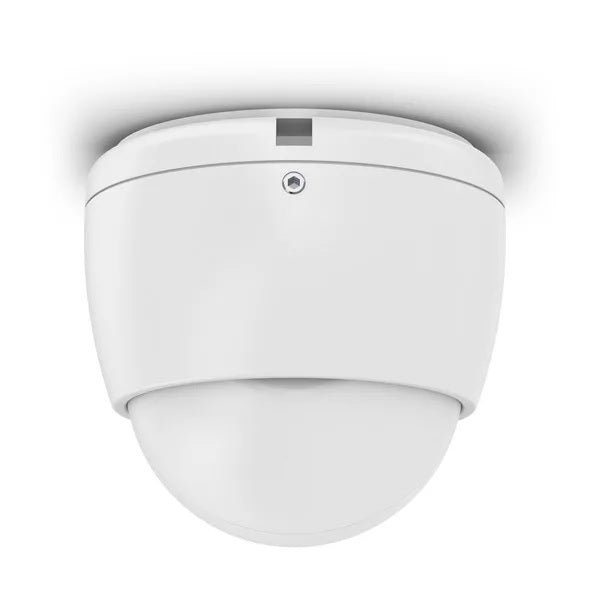

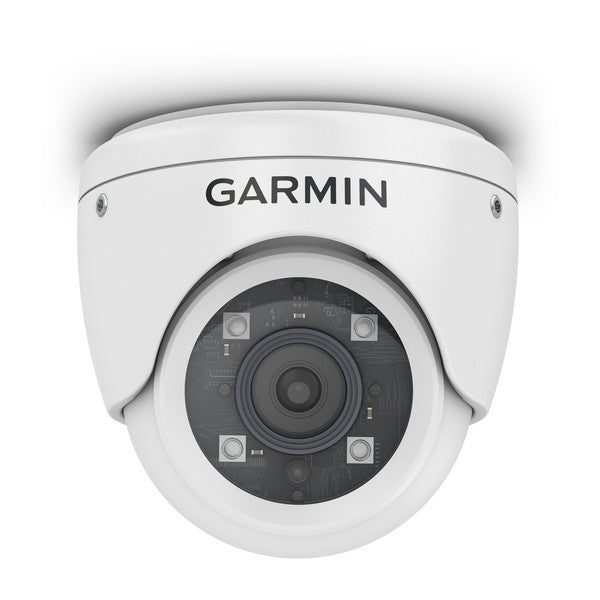

Garmin GC200 MARINE CAMERA

• Use to monitor one or multiple areas above and below deck in clear, real-time HD video


• HD resolution for excellent quality images, even in low light


• Stream video from up to four cameras at a time on a single compatible Garmin chartplotter


• Use reverse-image setting on compatible chartplotters to help back out of tight locations such as crowded marinas


• Connect and share video across multiple compatible chartplotters on the Garmin Marine Network

Our GC 200 marine IP camera provides added security and awareness on your vessel. Use multiple cameras to monitor areas above and below deck in clear, real-time HD video. Stream video from up to four cameras at a time on a single chartplotter, or share video across multiple compatible chartplotters on the Garmin Marine Network. Use the reverse-image setting on compatible chartplotters to help back out of tight locations such as crowded marinas.

GC 200 is easy to install, and its small size and discreet design will blend into the surroundings. Mount the marine IP camera in virtually any orientation, because its images can rotate 90/180/270 degrees. Its rugged, water-resistant case allows you to place it nearly anywhere you need a camera.

Power
Hardwired (10 V DC to 16 V DC or through Garmin power and audio module)

Camera connection
Garmin Marine Network

Images
Standard and reversed; rotated 90, 180 or 270

Night vision
Built-in IR LEDs

Night vision distance
Up to 30 metres

Viewing angle
99 degrees horizontal/74 degrees vertical

Image sensor
2.0 megapixel ½.8" SONY STARVIS CMOS

Scanning system
Progressive scan

White balance
Auto

Shutter speed
Auto

Resolution
Up to 1920 x 1080 pixels*

Video output
H.264 over GMN

Operating temperature
-20°C to 60°C

Water rating
IPX7

Power consumption
Max 5 W with IR LEDs On

Operating current
12 V DC: 210mA (IR Off)/370mA (IR On)

What's in the Box:

• GC 200 marine IP camera


• 6 metre Garmin Marine Network cable (small connector)


• Garmin Marine Network adapter cable (small connector to large connector)


• Mounting hardware


• Documentation
