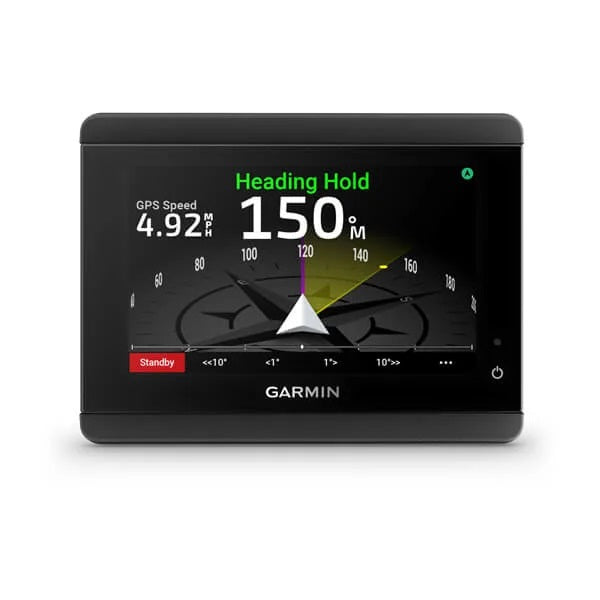

Garmin GHC™ 50 Marine Autopilot Instrument

• A 5" touchscreen interface with a bright display. Call it navigating with a simple touch.


• Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.


• Share settings with your Garmin MFDs, and watch your integrated system come to life.


• From the Garmin Marine Network (GMN) to wireless connectivity1, there are many ways to connect to your autopilot.


• Control your boat your way with wired or wireless remote-controlled options.

When you’re ready to discover paradise, the GHC 50 autopilot instrument helps you navigate with ease — wherever the waters take you.

The bright 5" WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.

With a premium industrial design and edge-to-edge glass display, the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP® chartplotters, creating a stunning look for your helm.

The choice is yours — control your autopilot instrument via wire or a wireless remote for a navigation experience that works best for you.

If you have multiple compatible Garmin devices on your boat, you can share information among them for a more integrated marine system.

GHC 50 works with all GHP™ Reactor autopilots, select quatix® multisport marine smartwatches, the Garmin autopilot remote and GRID™ 20 remote.

If used as a stand-alone autopilot, wireless connectivity only provides software updates; use the Garmin Marine Network for sharing settings and other connected features

Dimensions
4.13" x 4.51" x 2.01" (105 x 140 x 51 mm)

Touchscreen
yes

Display resolution
800 x 480

Display type
WVGA

Weight
11.57 oz (328 g)

Water Rating
IPX7

Mounting options
Flat or flush

Connections

NMEA 2000 ports
1

Garmin Marine Network ports
1

ANT+ (Connectivity)
Yes

Garmin Wi-Fi Network (local connection)
yes

Electrical Features

Power input
9 to 32 Vdc

Typical current draw at 12 VDC
220 mA

Maximum current draw at 12 VDC
400 mA

Maximum power usage at 10 VDC
4.9 W

What's in the Box:

• GHC™ 50


• Black trim piece snap cover


• Protective cover


• Flush mount gasket and hardware


• Garmin Marine Network cable


• Garmin Marine Network adapter cable


• NMEA 2000® drop cable


• NMEA 2000 T-connectors and terminators


• Documentation
