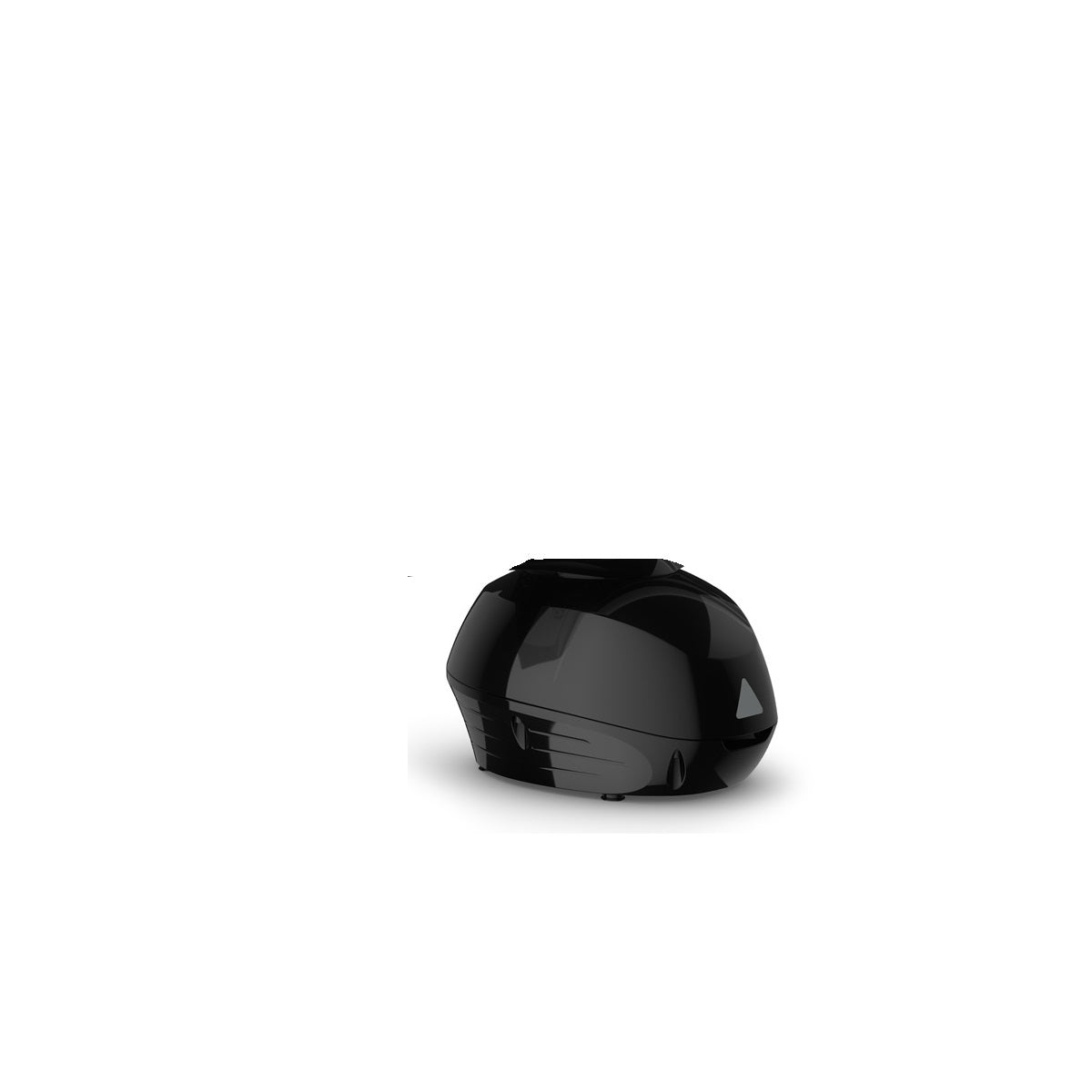

Garmin GMR Fantom 120W Radar Pedestal Only Black

Garmin GMR Fantom 120W Radar Pedestal Only Black

Garmin fantom 120 watt Pedestal and Cable only - Black

• Know what’s coming. MotionScope™ technology shows targets in color as they move toward you or away.


• GMR Fantom brings the power. 120 watts of it, actually.


• Get high resolution without wasting energy, thanks to pulse compression.


• Add even more detail to your maps with radar overlay — even in a split-screen view.

This 120-watt radar has a range from 20’ to 96 nautical miles, even in fog or rain. It offers rotation speeds of 24 RPM for reduced power consumption and 48 RPM for fast screen updates.

MotionScope uses the Doppler effect to detect moving targets and highlight them in different colors so you can navigate around other boats or severe weather — or toward fishing spots where birds feed at the surface.

This radar doesn’t have any complex user settings to deal with, so it’s easy to install and start using.

DIMENSION
Pedestal: 16.6" x 14.3" x 10.7"

WEIGHT
34.7 lb (15.7 kg)

WATERPROOF
IPX6

ROTATION SPEED (RPM)
24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower)

MAXIMUM RANGE
96 nm

MINIMUM RANGE
6 meters

Electrical Features

POWER INPUT
10-32 V DC

TRANSMIT POWER
120 W

Radar Features

DUAL RANGE
Yes

OVERLAY
Yes

DUAL RADAR SUPPORT
Yes

AUTO BIRD GAIN
Yes

AUTO GAIN
Dynamic

MARPA TARGET TRACKING
yes (requires heading sensor, sold separately)

ECHO TRAILS
Yes

MOTIONSCOPE
Yes

PROGRAMMABLE ANTENNA PARKING
Yes

TARGET SIZE
Yes

SCAN AVERAGING
Yes

Antenna
Sold Separately

What's in the Box:

• GMR Fantom 120 watt Pedestal - Black


• Mounting hardware kit and template


• Right angle power cable (15 meters)


• Right angle network cable (15 meters)


• Documentation
