Garmin GPSMAP1042XSV 10" Combo No Tranducer US and Canada GN+

Garmin GPSMAP1042XSV 10" Combo No Tranducer US and Canada GN+

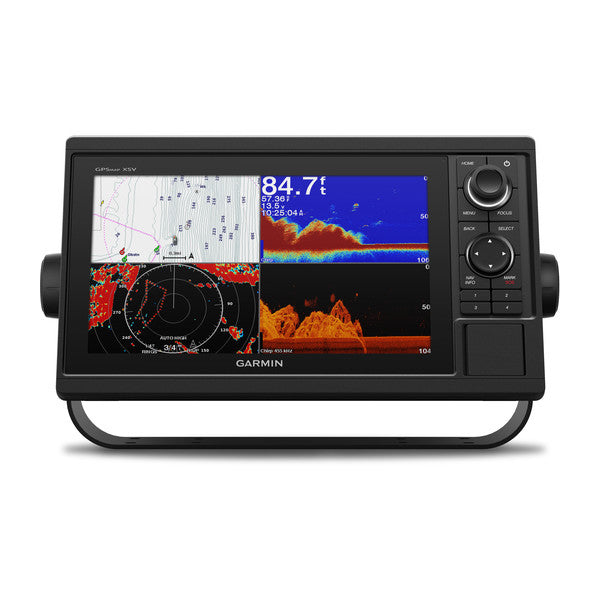

Garmin GPSMAP® 1042xsv 10-inch 10-inch Chartplotter/Sonar Combo Is All-in-1 Solution

Model: 010-01740-50
UPC: 753759168322

• Large, bright 10" screen with keypad interface and multifunction control knob


• Built-in support for Garmin CHIRP sonar plus CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars (transducers sold separately)


• Supports Panoptix™ and LiveScope™ sonar products (transducers sold separately)


• Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology Auto Guidance+ is for planning purposes only and does not replace safe navigation operations; plus, there’s support for optional Garmin Navionics Vision+™ premium map content.


• Built-in Wi-Fi® technology capabilities for the ActiveCaptain® app


• See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway


• Supports the Garmin Marine Network; allows sharing of sonar, radar, maps, user data, and NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors


• Includes Quickdraw Contours map drawing software


• Built-in Garmin SailAssist™ features include laylines, race features, set and drift, wind data and more


• Integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and remote controls (sold separately)

Experience an advanced all-in-one solution with our 10" GPSMAP® 1042xsv keyed combo. It features a large, bright screen coupled with a keypad interface and multifunction control knob. It comes with built-in support for Garmin CHIRP sonar along with CHIRP ClearVü™ and CHIRP SideVü™ scanning sonars. The combo also supports Panoptix™ and LiveScope™ sonar products and a wide range of other transducers (sold separately). Use built-in Wi-Fi® technology to pair with the free ActiveCaptain® smartphone app for access to the OneChart™ feature, smart notifications, software updates and more. Garmin Quickdraw™ Community data and more. Garmin Marine Network support allows sharing of sonar, maps, user data, radar, IP cameras and live sonar among multiple units. Plus, there’s NMEA 2000® and NMEA 0183 network connectivity support, including autopilots, digital switching, weather, media, VHF, AIS and other sensors. These units also include integrated ANT® connectivity support for use with compatible quatix® smartwatches, the gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls (sold separately). Preloaded Garmin Navionics+™ coastal charts and inland mapping feature Auto Guidance+™ technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations.) Plus, there’s support for optional Garmin Navionics Vision+™ premium map content. The combo also includes Quickdraw Contours software and the Quickdraw Community on our Garmin Connect™ online network. See RPMs, fuel flow, temperature, trim and more for up to four compatible Mercury® engines by using the SmartCraft® Connect gateway.

Specifications

Performance and Physical

Dimensions
12.5" x 7.3" x 2.7" (318 x 185 x 69 cm)

Display size
8.8" x 4.9" (224 x 125 cm)

Display resolution
1024 x 600

Display type
WSVGA display

Weight
4.1lbs

Water rating
IPX7

Power consumption
Max power usage at 10 Vdc: 32.4 W

Antenna
Internal or external over NMEA 2000

Mounting options
Bail or flush

Receiver
10 Hz high-sensitivity

Garmin Marine Network™ ports
2

Preloaded maps
Garmin Navionics+ coastal and inland water charts for the U.S. and Canada

Accepts data cards
2 SD™ cards

Waypoints
5,000

Routes
100

Track log
50,000 points; 50 saved tracks

Tide tables
Yes

Garmin Radar compatible
Yes

Garmin Sonar compatible
Yes (built-in)

Garmin SmartMode compatible (customizable monitor presets)
Yes

Supports AIS (tracks target ships position)
Yes

Supports DSC (displays position data from DSC-capable VHF radio)
Yes

Garmin Meteor™ Audio System compatible
Yes

Supports FUSION-Link™ compatible radios
Yes

GSD™ Black Box sonar support
Yes

GCV™ Black Box sonar support
Yes

ActiveCaptain compatible
Yes

Garmin Helm compatible
Yes

GRID™ (Garmin Remote Input Device) compatible
Yes

Wireless remote compatible
Yes

Dual-frequency (50/200 kHz) sonar capable
Yes

Dual-beam (77/200 kHz) sonar capable
Yes

Transmit power
1 kW traditional; 1 kW single channel CHIRP

CHIRP sonar technology
Yes (Built-in)

ClearVü
Yes with CHIRP (built-in)

SideVü
Yes with CHIRP (built-in)

Maximum depth
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)

Bottom lock (shows return from the bottom up)
Yes

Water temperature log and graph
Yes

Sonar recording
Yes

Sonar history rewind
Yes

NMEA 2000® compatible
Yes

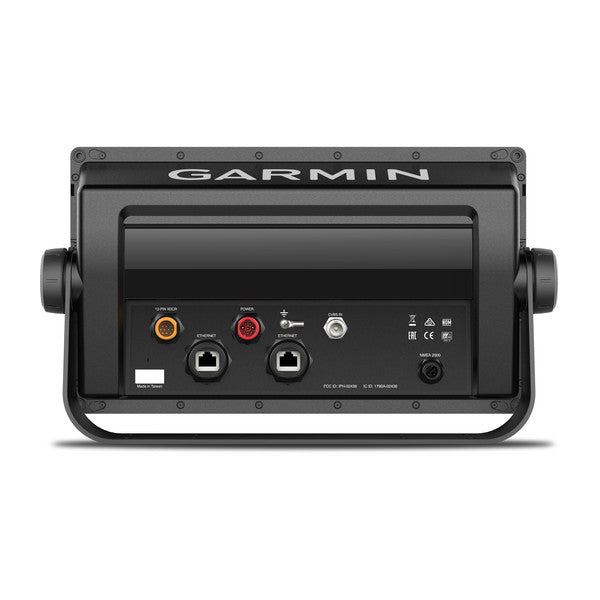

Transducer pin numbers
12

NMEA 0183 input ports
1

Video input ports
1 BNC

Video output ports
None

Wireless connectivity
Yes

What's in the Box:

• GPSMAP 1042xsv chartplotter Garmin Navionics+ coastal and inland water charts for the U.S. and Canada


• Power/data cable


• NMEA 2000 T-connector


• NMEA 2000 drop cable (2 m)


• Bail mount kit with knobs


• Flush mount kit with gasket


• Protective cover


• Trim piece snap covers


• Documentation


• 8-pin transducer to 12-pin sounder adapter cable
