Garmin GPSMAP® 1223xsv SideVü, ClearVü and Traditional CHIRP Sonar with Worldwide Basemap

Model: 010-02367-02

• Easily integrate with more engines.


• Connect to compatible third-party devices with OneHelm™ digital switching.


• Easily build your marine system using the best of network connectivity.


• Navigate any waters with preloaded mapping and coastal charts.


• See below your boat with built-in sonar capabilities.


• Manage your marine experience from nearly anywhere.

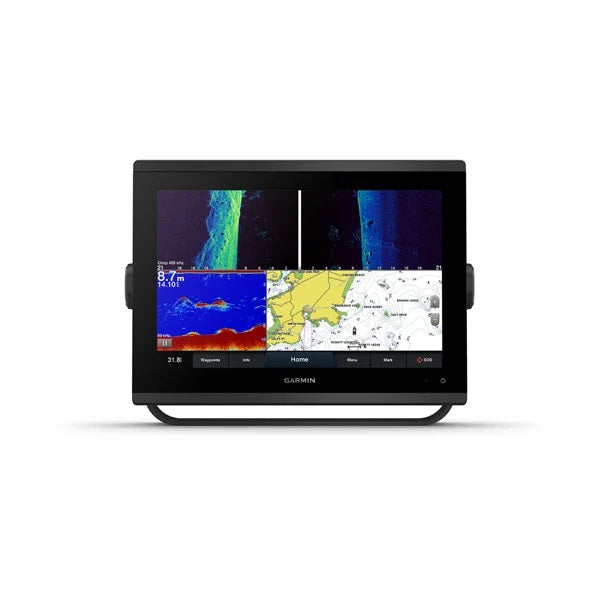

With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter/sonar combo integrates seamlessly into your Garmin marine system.

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP 923xsv also supports 1 kW CHIRP traditional sonar capabilities.

Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

With its ultrasleek design, vivid sonar color palette and high-resolution 12" in-plane switching display, this large format chartplotter/sonar combo offers improved sunlight readability and wide-angle visibility.

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Specifications

General

PHYSICAL DIMENSIONS
12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)

DISPLAY SIZE
10.3" x 6.4"; 12.1" diagonal

DISPLAY RESOLUTION
1280 x 800 pixels

DISPLAY TYPE
WXGA display

WEIGHT
6.6 lbs. (3.0 kg)

WATER RATING
IPX7

POLARIZED SUPPORT
Yes

POWER CONSUMPTION
Max power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A

ANTENNA
Internal or external over NMEA 2000

MOUNTING OPTIONS
Bail, flush or flat

RECEIVER
10 Hz high-sensitivity

GARMIN MARINE NETWORK™ PORTS
2

TRANSMIT POWER
1 kW traditional; 1 kW CHIRP

Maps & Memory

PRELOADED MAPS
worldwide basemap

ACCEPTS DATA CARDS
2 microSD™ cards (back of unit)

WAYPOINTS
5,000

TRACK LOG
50,000 points; 50 saved tracks

ROUTES
100

Outdoor Recreation

TIDE TABLES
Yes

Chartplotter Features

GARMIN RADAR COMPATIBLE
Yes

GARMIN SONAR COMPATIBLE
Yes (built-in)

GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)
Yes

SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)
Yes

SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)
Yes

SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS
Yes

GSD™ BLACK BOX SONAR SUPPORT
Yes

GCV™ BLACK BOX SONAR SUPPORT
Yes

ACTIVECAPTAIN COMPATIBLE
Yes

GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE
Yes

WIRELESS REMOTE COMPATIBLE
Yes

SAILING FEATURES
Yes

Sonar Features & Specifications

DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE
Yes

DUAL-BEAM (77/200 KHZ) SONAR CAPABLE
Yes

FREQUENCIES SUPPORTED
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer)

CHIRP SONAR TECHNOLOGY
Yes (Built-in)

CLEARVü
Yes with CHIRP (built-in)

SIDEVü
Yes with CHIRP (built-in)

MAXIMUM DEPTH
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)

BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP)
Yes

WATER TEMPERATURE LOG AND GRAPH
Yes

SONAR RECORDING
Yes

SONAR HISTORY REWIND
Yes

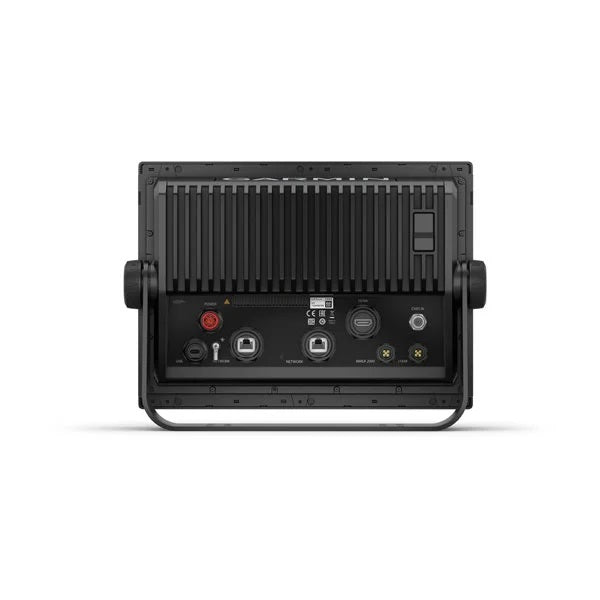

Connections

NMEA 2000® COMPATIBLE
Yes

TRANSDUCER PIN NUMBERS
12-pin (orange)

NMEA 0183 INPUT PORTS
1

NMEA 0183 OUTPUT PORTS
1

VIDEO INPUT PORTS
1 BNC

VIDEO OUTPUT PORTS
1 HDMI

WIRELESS CONNECTIVITY
Yes

J1939 COMPATIBLE
Yes

What's in the Box:

• GPSMAP 1223xsv chartplotter


• microSD™ card preinstalled


• Power cable


• NMEA 2000® T-connector


• NMEA 2000 drop cable (2 meters)


• Bail mount kit with knobs


• Flush mount kit with gasket


• Protective cover


• Trim piece snap covers


• Documentation


• 8-pin transducer to 12-pin sounder adapter cable
