Garmin LVS34 Transducer Replacement for LiveScope Plus Transom/Trolling Motor Mount

Garmin LVS34 Transducer Replacement for LiveScope Plus Transom/Trolling Motor Mount

Garmin LVS34 Transducer for Panoptix Livescop Plus

• See images clearly with improved screen clarity, transducer sensitivity and target separation.


• Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.


• Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.


• Get maximum contrast and clarity in your images with vivid color palettes.


• Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.

The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.

REAL-TIME IMAGES - Real-time sonar ensures that your live images are as accurate as possible

CLEAR VISION - See exactly what you need with reduced noise and fewer sonar artifacts that impede your picture of fish and structure.

IMAGE STABILIZATION - A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

VIVID COLOR PALETTES - Choose from seven vivid color options - including Aqua, Caribbean, Lava and more - to see fish and structure in maximum contrast and clarity.

DIMENSION
6.4" x 3.1" x 1.9" (16.2 x 3.1 x 4.8 cm)

WEIGHT
2.25 lbs (1.02 kg)

WATERPROOF
WATERPROOF

WATERPROOF
Operating: 0 C to 40 C

Sonar Features & Specifications

FREQUENCY
530 - 1,100 kHz

MAXDEPTH
Down and Forward: 200’ (61.0 m)

Connections

CONNECTIONS GARMIN MARINE NETWORK PORTS
1 (small connector)

Electrical Features

POWER INPUT
10-32 V

POWER USAGE
21 W typical, 58 W max

TRANSMIT POWER
500 W

FUSE
7.5 A

COMPASS-SAFE DISTANCE
4" (0.1 m)

Additional

Minimum depth
3' (0.91 m)

Sonar type
Live

Beamwidth
20° x 135°

Transducer cable length
20 ft

Transducer number of pins
21

What's in the Box:

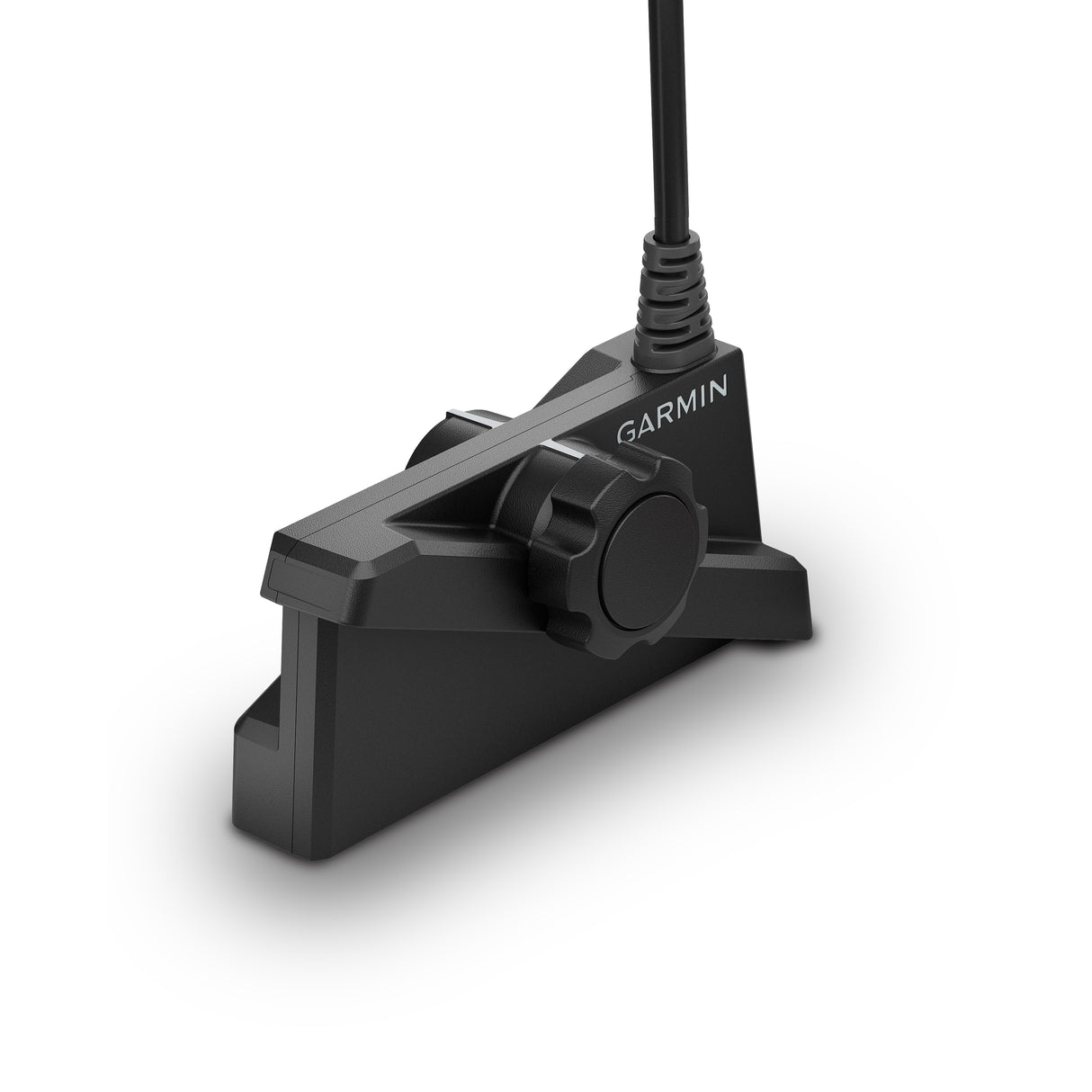

• Panoptix LVS34 transducer


• Perspective mount

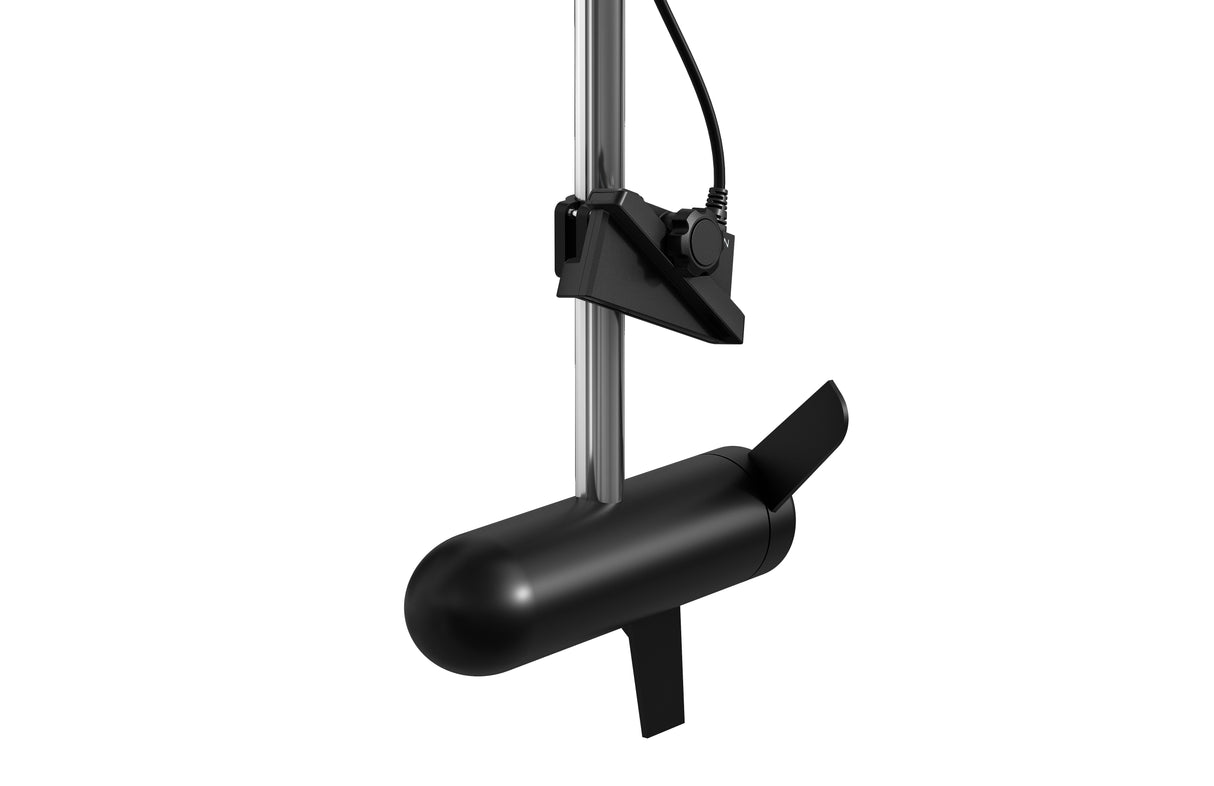

• Trolling motor barrel mount


• Trolling motor barrel mount


• Documentation
