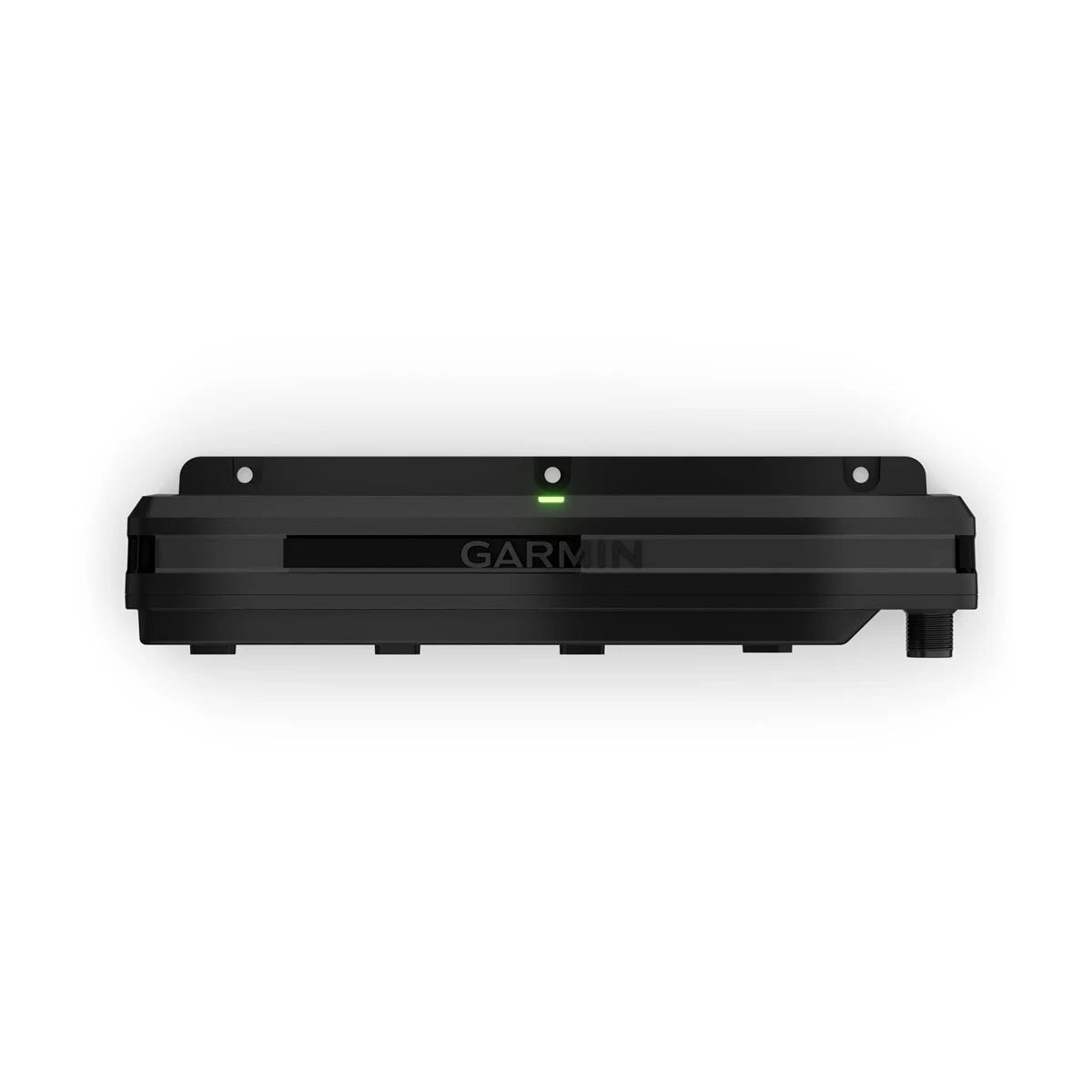

Garmin Spectra™ LC302 LED Control Module

Control LED lights on your boat from your compatible chartplotter or smartphone with the Garmin Spectra light control module (lights not included). Assign and control different light groups for cup holders, speakers, strip or courtesy lights, and more to create your own vibe.

From bow to stern and everything in between, this module lets you control and set up different light groups and scenes.

Control lights over the NMEA 2000® network with your compatible chartplotter or with the ActiveCaptain® app on your compatible smartphone.

See the beat by syncing the LED lights to the music track with the audio sync feature.

Control LED lighting on Fusion and JL audio boat speakers and subwoofers plus wake tower speakers (sold separately).

Add more lights after the initial install with a scalable system.

Built to withstand the abuse of life on the water (in accordance with IP66/IP67 ratings)

Unit dimensions (WxHxD)
7.76" x 2.05" x 1.85" (197 x 52 x 47 mm)

Weight
5.57 oz (158 g)

Water rating
IP66/IP67

Operating temperature range
32° to 122° F (0° to 50° C)

Compass-safe distance
7.87" (20 cm)

Warranty
2 years

Electrical

Input voltage
10.8 to 16 V (12 V system)
21.6 to 32 V (24 V system)

Input current (max)
6 amp

Output current (max)
2 A (per output connector)

NMEA 2000® LEN
2 (Less than or Equal to 70 mA)

Over voltage protection
yes

Over current protection
yes

Lighting Features

LED connection types
RGB, RGBW, CRGBW, single channel

Lighting modes
Color pick, audio sync (color blend/audio spectrum), effects

Premium control and setup via
MFD or ActiveCaptain® app

Control via
Fusion Apollo™ Stereo

What's in the Box:

• Spectra LC302


• Power flying lead with water-resistant three-way connector


• Three LED flying leads with water-resistant six-way connectors


• Tee connector for the NMEA 2000® network


• Backbone/drop cable (0.3 m) for the NMEA 2000® network


• Mounting screws


• Documentation
