Icom M410BB Black Box VHF With HM195GB Black

Icom M410BB Black Box VHF With HM195GB Black

icom M411BB Black Box VHF with HM195GB Black CommandMic

Icom’s M410BB is a flexible black box fixed mount that provides VHF communications for vessels with limited helm space. The supplied CommandMic™ controls the radio for essential communications on the water.

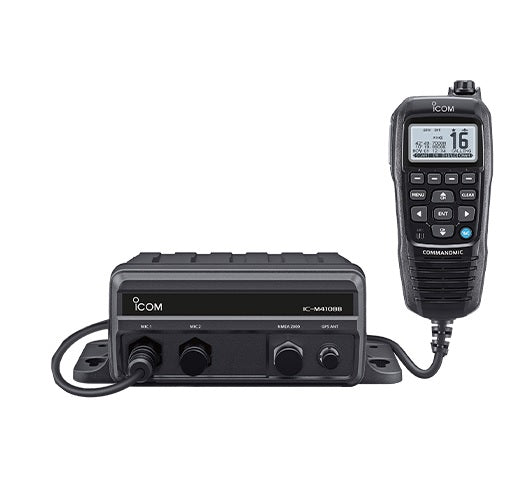

The M410BB consists of a CommandMic™ and black box RF unit. Use the CommandMic™ for all operations including DSC. Install the RF unit out-of-sight, place up to 60 ft (18.3 m)* away from the CommandMic™.

Add an additional CommandMic™ to extend communication points for boats requiring a second comms station. This is ideal for boats needing communication between the cockpit and other locations on the boat. Access the intercom functions for one-to-all or one-to-one communications on the boat.

On the back of every CommandMic™ is a conveniently located DSC button. Once triggered, the M410BB transmits a DSC alert signal to nearby vessels with the MMSI* and GPS location of your vessel.

The NMEA 2000® network provides plug-and-play data communication to inter-connect other marine equipment such as an MFD (Multi-Function Display). The radio can send AIS, GNSS (GPS) position, DSC call, and radio channels to other equipment.

The built-in 15W amplifier increases the audio output of an external hailer speaker. The one-way RX hailer function enables you to broadcast radio traffic through the hailer speaker to listen to radio traffic on the deck or tower. You can also sound foghorn patterns from the hailer speaker.

The Active Noise Cancelling function digitally removes background noise from transmitting and receiving audio to provide clear communications in noisy maritime environments.

Usable channels
USA, INT, CAN, WX channels

Power supply requirement
13.8 V DC nominal (11.7 ~ 15.9 V DC) (Negative ground)

Current drain (at 13.8 V DC)
TX Max. power - 5.5 A Max.
RX Max. audio - 1.5 A (One CommandMic™) 4.0 A (Two CommandMic™ and RX hailer)

Operating temperature range
—20°C ~ 60°C, —4°F ~ 140°F

Antenna impedance
80 ohm nominal

Weight (approx.)
RF unit - 890 g; 2 lb
CommandMic™ - 400 g; 14.1 oz

Transmitter

Output power (at 13.8V DC)
25 W, 1 W (High, Low)

Max. frequency deviation
±5 kHz

Frequency tolerance
±0.5 kHz

Spurious emissions
Less than —70 dBc (High power), Less than —56 dBc (Low power)

Residual modulation
More than 40 dB

Adjacent channel power
More than 70 dB

Receiver

Sensitivity FM (at 12dB SINAD)
0.22 µV typical

Sensitivity DSC (at 1% BER)
—7 dBµ emf typical

Adjacent channel selectivity FM
More than 70 dB

Adjacent channel selectivity DSC (1% BER)
More than 73 dBµ emf

Spurious response FM
More than 70 dB

Spurious response DSC (1% BER)
More than 73 dBµ emf

Intermodulation FM
More than 75 dB

Intermodulation DSC (1% BER)
More than 68 dBµ emf

Hum and noise
More than 40 dB

What's in the Box:

• IC-M410BB


• DC power cable (2 m)


• Microphone Hanger


• Connection cable, OPC-1540 (6.1 m, 20 ft)


• CommandMic™, HM-195GB


• Connector cap


• Mounting base
