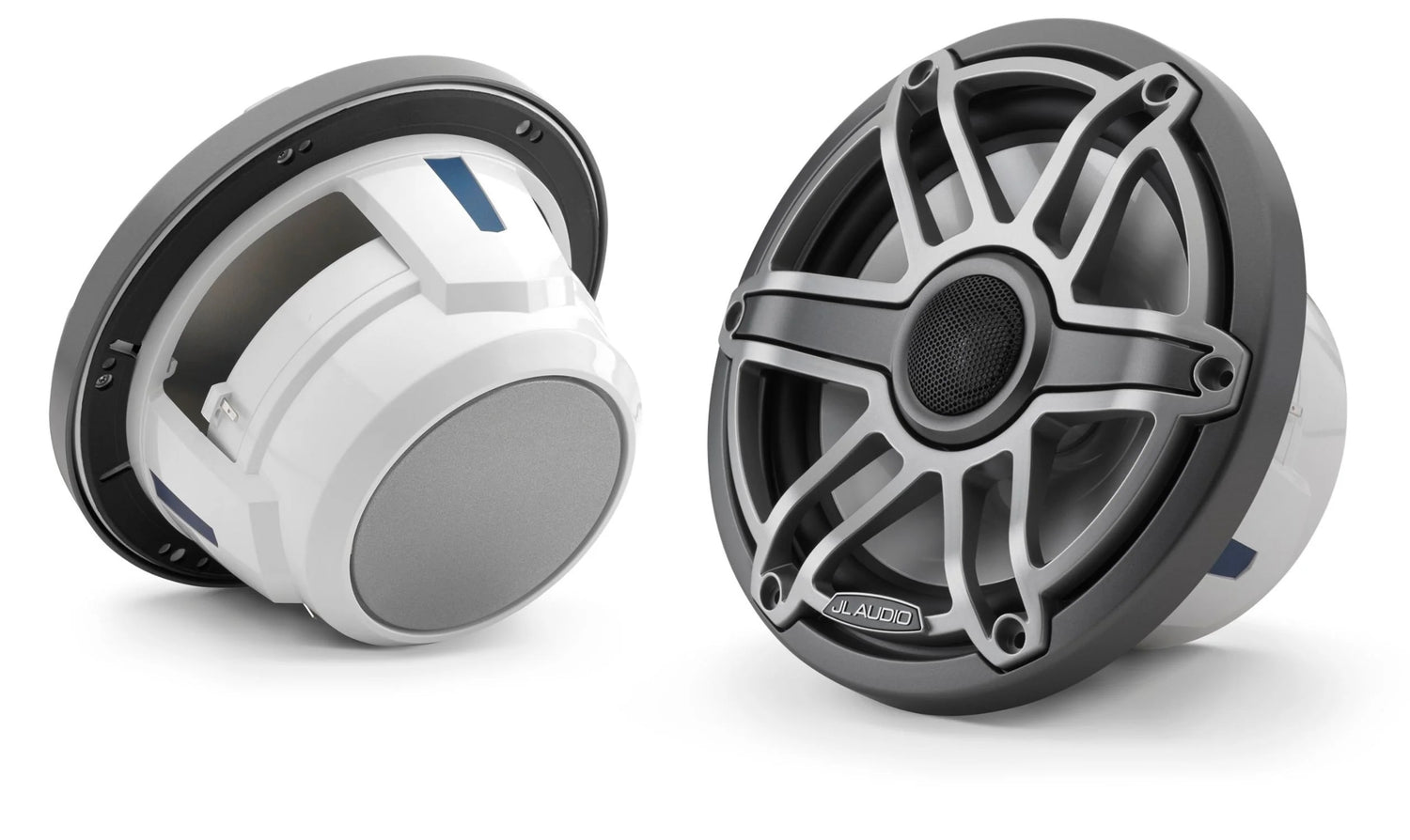

JL Audio M6 7.7in Coaxial Speakers Titanium Sport Grille

JL Audio M6 7.7in Coaxial Speakers Titanium Sport Grille

M6 7.7-inch Marine Coaxial Speakers for Infinite-Baffle Use (100 W, 4 ohms) - Gray Metallic Trim Ring, Titanium Sport Grille

Purpose-engineered and built for real marine duty, M6 coaxial systems deliver maximum audio performance in any open-air boating environment.

The oversized 7.7-inch design of the M6-770X coaxial results in increased efficiency (more output for a given amount of power). Combine that advantage with long excursion and excellent power handling and you have a speaker system truly capable of playing loud and clear in a powerboat at speed.

A 1-inch pure silk dome tweeter, specially treated to withstand the marine environment, handles the high-frequency duties. You will appreciate the clean, articulate high-frequency response of the M6 dome tweeter, especially at higher volume levels.

A multi-order, true 2-way passive crossover is concealed within the woofer chassis, shielded from vibration and corrosion. Also included, is an automatic, solid-state tweeter protection circuit to minimize the possibility of tweeter failure.

Although M6-770X Coaxial Systems can be used with as little as 40 W per channel, for best audio performance we recommend amplifiers capable of between 40-200 W of continuous power per channel.

Production of all M6 loudspeakers takes place in JL Audio’s Miramar, Florida factory, using global components and materials.

Sold as a pair.

USA Limited Warranty: Two (2) years from the original date of purchase

Continuous Power Handling (RMS)
100 W

Recommended Amplifier Power (RMS)
40 - 200 W / Ch.

System Efficiency
91.0 dB @ 1 W / 1 m

System Nominal Impedance
4 ohms

System Frequency Response
45 Hz - 25 KHz ± 3 dB

Coaxial Physical Specifications

Frame Outer Diameter
7.70 in / 196 mm

Bolt Hole Circle Diameter
6.92 in / 176 mm

Frontal Grille Protrusion
1.08 in. / 27 mm

Mounting Hole Diameter
6.25 in / 159 mm

Mounting Depth
3.32 in. / 84 mm
