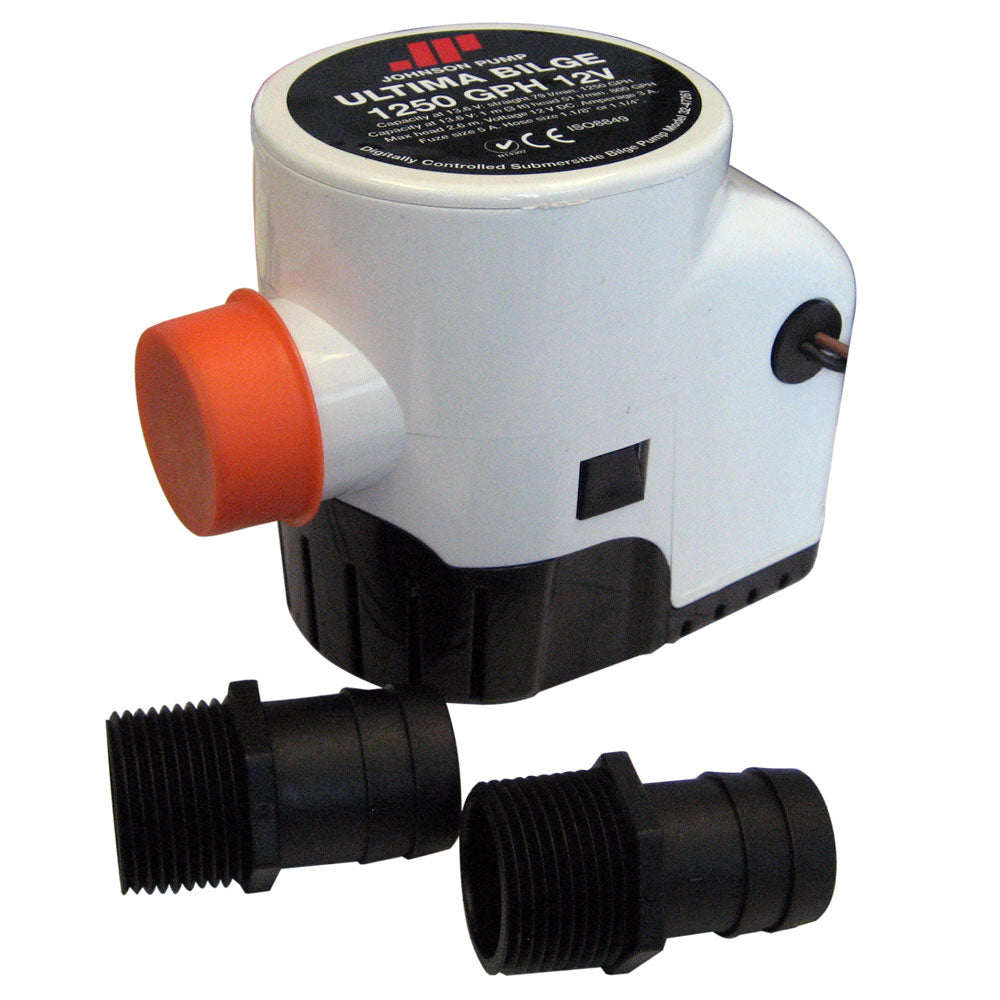

Johnson Pump Ultima Bilge 1250 GPH 1-1/8" & 1-1/4" Hose

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90 degree smooth elbow Dura-Port. For UltimaBilge 1250GPH we include threaded 1.1/4" & 1.1/8" discharge port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
CE-Approved

Features:

• Compact, all-in-one unit




• Integrated Ultima Switch sensing right into the pump body




• No Mercury




• Removable clip on basket design




• Removable impeller cover allows for easy clean out




• 3-wire device can be run in auto or manual override mode




• No tools needed for maintenance




• Extremely energy efficient




• Water-cooled motor for long service intervals




• Pump Body: ABS




• Shaft Seal: Lip Seal




• Shaft: Stainless steel (SS2343)




• Voltage: 12 V DC




• Capacity 3 ft (0.9 m) head (13.6 V): 51 l/min - 800 GPH




• Capacity straight (13.6 V): 79 l/min - 1250 GPH




• Amperage: 3 A




• Fuse Size: 5 A




• Connection: 1-1/8" and 1-1/4"




• Length:142 mm - 6"




• Width:82 mm - 3.2"




• Height:117 mm - 4.6"




• Weight:0.66 kg - 23.3 oz.
