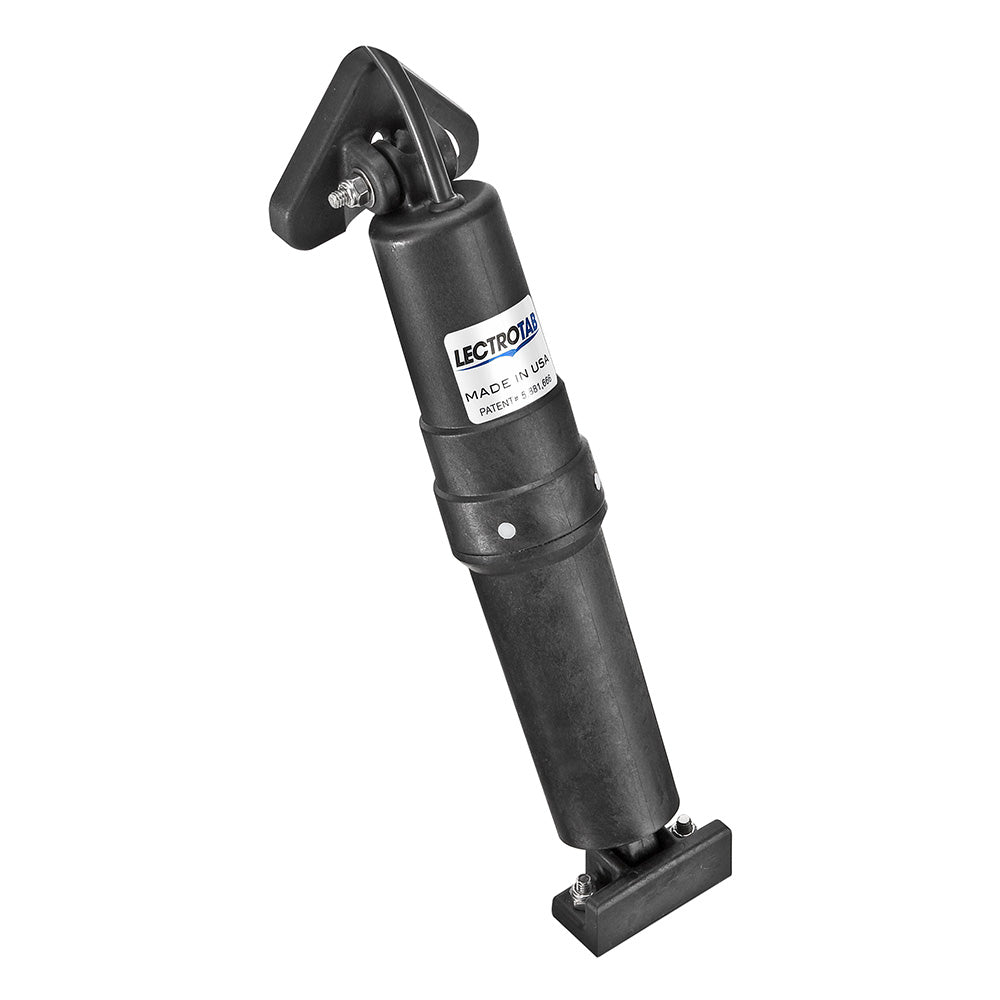

Lectrotab 12 V Trim Tab Actuator - 23' Cable

12 V Trim Tab Actuator - 23' Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.

No components need to be installed inside the boat.  Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates a transom mounting bracket.

Features:

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth


• Utilizes internal pressure equalization system


• Upgrades to most popular hydraulic and electromechanical systems


• Internal brake system prevents unwanted tab movement when under way or backing down


• Quiet operation


• All actuators fully load tested to push 1000 lbs of force


• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Actuator DC Voltage - 12 V


• Actuator Stroke Length - 2.25" (57 mm)


• Actuator Cable Length  - 23' (7 M)


• Actuator Vertical Height - 11.875" (302 mm)


• Upper Mounting Bracket - Standard


• Lower Mounting Bracket - Standard

*Sold as an Individual
