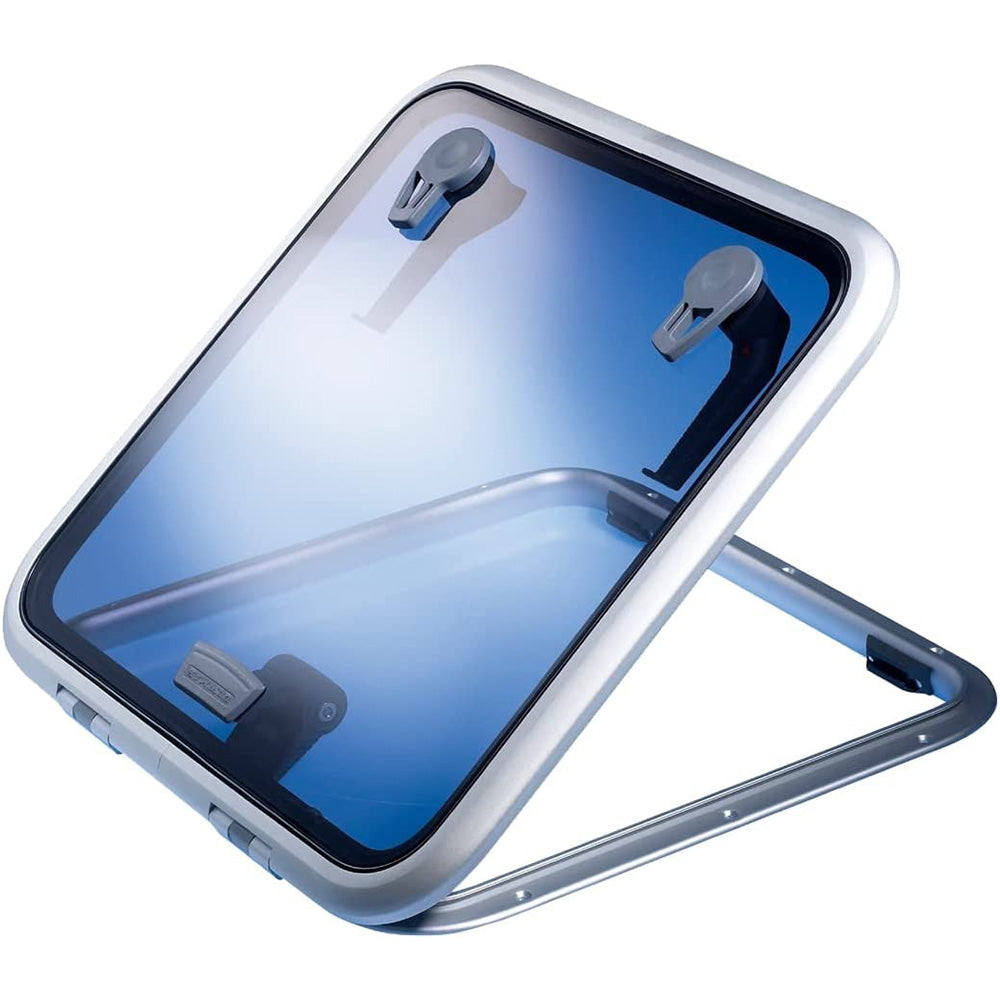

Lewmar Ocean Flat Base - Size 60 Hatch

Ocean Flat Base - Size 60 Hatch

With its classic style, the Ocean Hatch is fitted to thousands of boats around the world. Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face.

Features:

• Friction levers hold the lid open in any position up to 95°


• Anodized aluminum frame for corrosion resistance


• All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit, and Transom)

Specifications:

• Lower Frame: Flat base


• Acrylic Color: Smoke grey


• Hatch Weight: 8 kg /17.6 lb.


• Acrylic Window Thickness: 12mm / (1/2 in.)


• Length: 574 mm / 22 5/8 in.


• Width: 574 mm / 22 5/8 in.


• Height: 43 mm / (1-11/16 in.)


• Radii: 76 mm / 3 in.


• Hinge Width: 367 mm / (14-7/16 in.)


• Cut-Out Length (Flat/Flange): 502 mm / (19-3/4 in.)


• Cut-Out Width (Flat/Flange): 502 mm / (19-3/4 in.)


• Cut-Out Radii (Flat/Flange): 40 mm / (1-9/16 in.)

*Sold as an Individual
