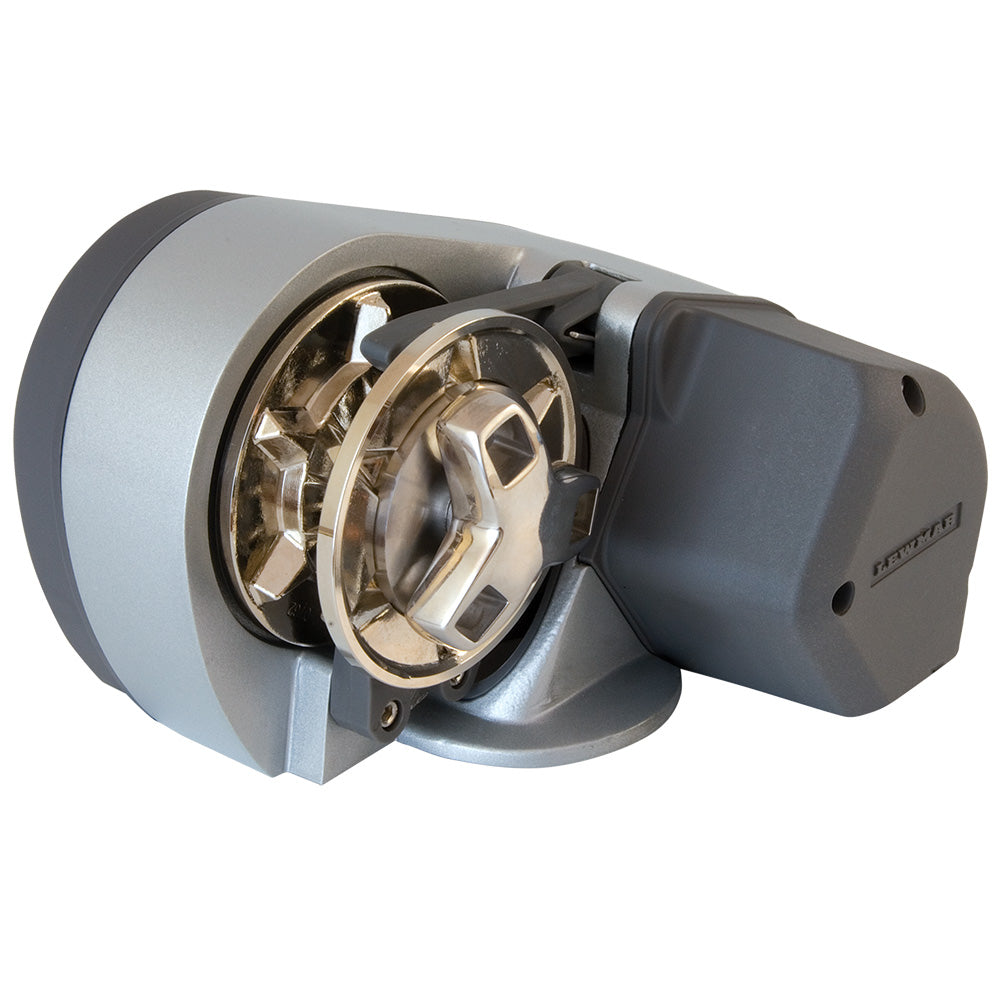

Lewmar Pro-Sport 550G Horizontal Windlass Kit - 12V

Pro-Sport 550G Horizontal Windlass Kit - 12V

Lewmar’s Pro-Sport windlass is designed as an economical package for rope and chain applications, without compromise on quality or performance. Pro-Sport is designed around a highly efficient spur gearbox, using smaller, more powerful permanent magnet motors.

Its rugged aluminum center case and durable composite side covers make Pro-Sport the perfect choice.  Complete with push-button control, anchoring has never been easier.

Features:

• Low power consumption / current draw


• Dual direction powered operation


• Convenient above-deck installation


• Manual freefall


• DIY ready

Technical Specifications:

• Chain Size - 1/4" G4 or BBB


• Rope Size - 1/2" 3-strand or 8-plait


• Motor Voltage - 12 Volt DC


• Motor Power - 150 Watt


• Maximum pulling power - 550lb (250kg)


• Maximum Working Load - 137lb (62.12kg)


• For boats up to 28' (9M)

In the Box:

• Windlass


• Base gasket


• Mounting hardware


• Circuit breaker


• Contactor


• Rocker switch


• Instruction manual

*Sold as an Individual
