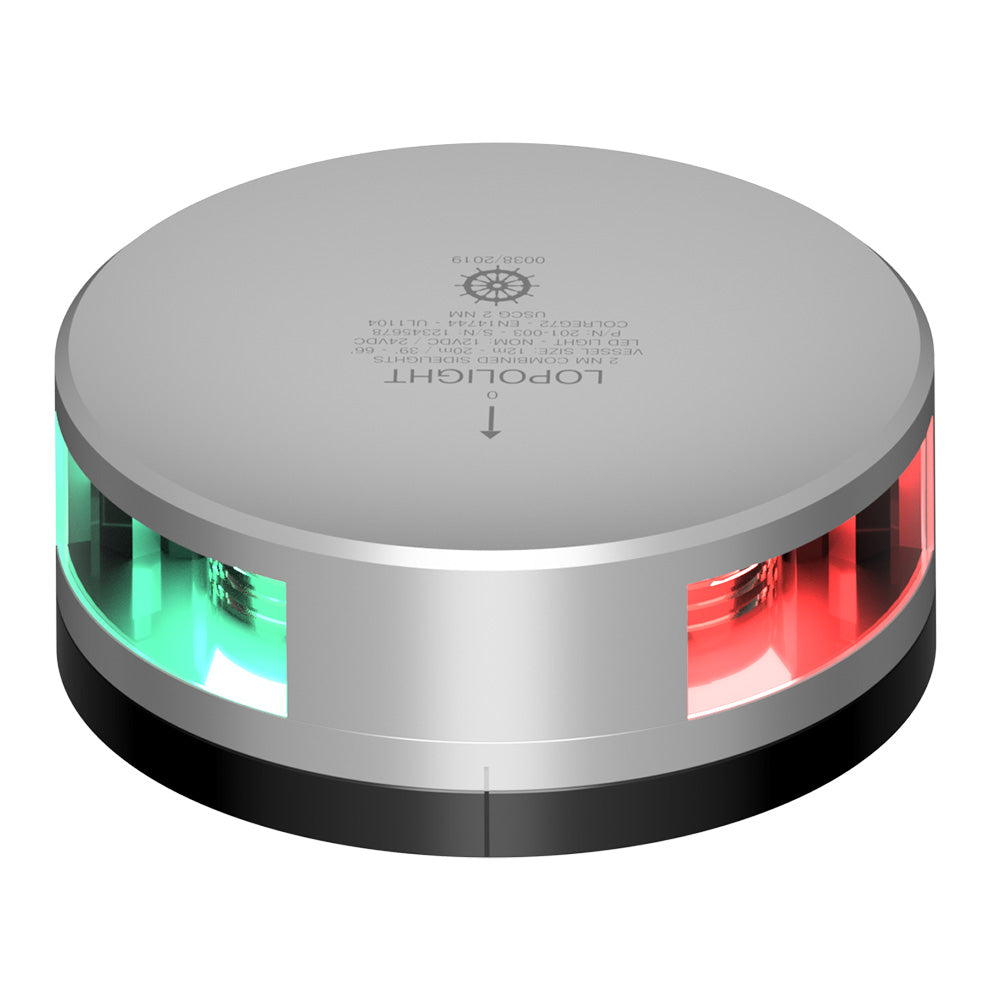

Lopolight Combined Sidelight - 2NM - Silver Housing w/FB Base

Combined Sidelight - 2NM - Silver Housing with FB Base

This silver sidelight is horizontally mounted and has a two-nautical-mile range. The FB base centers the wiring for antenna-type pole mountings. The base provides a screw-down onto the deck solution as well as a from-below mounting. Essentially, the base provides a sleeker, reduced profile.

Features:

• Silver anodized aluminum housing


• 0.75m cable is included

Specifications:

• Approved To: COLREG72,EN14744,IEC 60945,IACS E10,USCG,ABS,M.E.D.,DNV,LR


• Mounting: Horizontal


• EAN: 5704438043282


• Min. Feed Wire Gauge: 0.5mm² AWG22


• Light Color: Red and green


• Visibility: 2NM


• Included In the Package: 1 Navigation light, pre-cabled with 2.5 meters shielded marine grade cable and installation guide


• Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane


• IP rating: IP68


• Connection: 2.5m cable


• Current Consumption (mA @ 24VDC): 90


• Current Consumption (mA @ 12VDC): 163


• Dimensions Metric: Ø92.5mm x 36mm


• Dimensions Imperial: Ø3.6" x 1.4"


• Operating Temperature: -25 degrees C to 55 degrees C


• Operating Voltage: 10-32VDC


• Power Draw (W): 2.2


• Vessel Size: Under 12 meters
