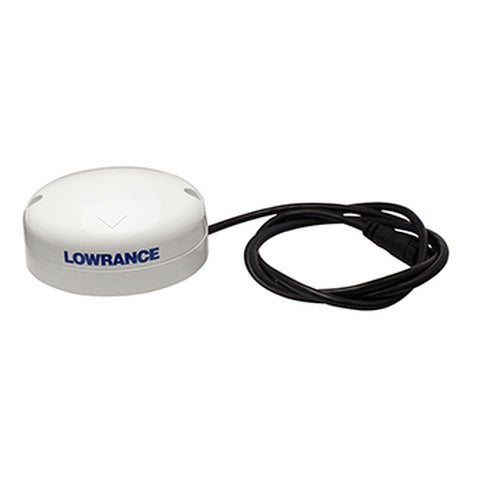

Lowrance Point-1AP GPS and Heading Antenna

• NMEA 2000® position and heading sensor


• Supports GPS and GLONASS, Galileo-capable with future software update


• Supports SBAS including WAAS/EGNOS/MSAS


• 10 Hz updates for smooth and accurate location


• Integrated electronic compass provides 10Hz heading for chart stabilization and radar overlay, plus accurate course over ground even at low speeds


• Compact, rugged design for all marine environments and fully waterproof

Point-1AP GPS and Heading antenna provides extremely accurate and rapid boat position and speed updates to the network. Built in magnetic compass with accuracy and tuning specific for Lowrance Autopilots also provides chart stabilization and radar overlay, plus accurate course over ground even at low speeds.

NMEA 2000 Certified
Yes

Connectors
NMEA 2000 Micro C

Power

Power Supply (Supply Voltage)
9v-18v

GPS Navigation

GPS Receiver Channels
32

Heading Accuracy
3 degrees

Horizontal Accuracy
5 m

Rate of Turn
3 degrees

Satellite Reacquisition
<5 seconds

Start-up Time
<3 seconds

Cold Start
<50 seconds

Picth/Roll Angle
@30 degrees 1 grade error

Technical/Environmental

Diameter
90 mm (3.54in)

Product Height
38 mm ( 1.50in)

What's in the Box:

• Point-1AP Sensor


• N2K-T-RD - Micro-C T-connector for connection of an additional network device


• N2KEXT-15RD - 4.55 m (15-ft) NMEA 2000® cable for backbone extension or or drop cable to connect an additional network device
